Product Details | ELECTRICAL CONNECTOR BACKSHELL

5935-01-238-5393 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.

Part Alternates: SE16E0908A2.0R4, SE16E0908A20R4, 74E2N2726, 74E2N272-6, 5935-01-238-5393, 01-238-5393, 5935012385393, 012385393

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 15 AUG 1986 01-238-5393

Drawings & Photos | NSN 5935-01-238-5393


Demand History | NSN 5935-01-238-5393

Part Number Request Date QTY Origin
74E2N2726 2009-10-300 6 US

Cross Reference | NSN 5935-01-238-5393

Part Number Cage Code Manufacturer
74E2N272-6 28687 NAVY, UNITED STATES DEPARTMENT OF THE SPAWAR DBA SPACE AND NAVAL
SE16E0908A2.0R4 07418 JOSLYN SUNBANK COMPANY, LLC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-238-5393

Technical Data | NSN 5935-01-238-5393

Characteristic Specifications

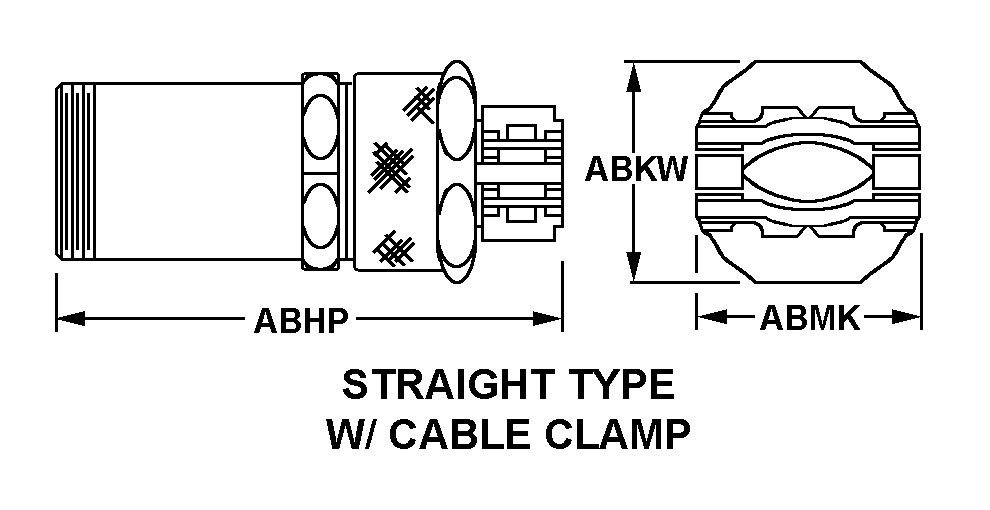

STYLE DESIGNATOR 4C STRAIGHT TYPE W/CABLE CLAMP
OVERALL LENGTH 2.000 INCHES NOMINAL
OVERALL WIDTH 0.844 INCHES MAXIMUM
MATERIAL ALUMINUM ALLOY
MOUNTING FACILITY TYPE AND QUANTITY 1 THREADED COUPLING
THREAD SERIES DESIGNATOR UNEF
NOMINAL THREAD SIZE 0.688 INCHES
THREAD CLASS 2B
THREAD QUANTITY PER INCH 24
CABLE OPENING QUANTITY 1
CABLE OPENING DIAMETER 0.312 INCHES MINIMUM AND 0.531 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5935-01-238-5393

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
