NSN 5935-01-215-4657 MS3456W363SY, MS3456W36-3SY, MILC5015
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-215-4657 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3456W363SY, MS3456W36-3SY, MILC5015, MIL-C-5015, 5935-01-215-4657, 01-215-4657, 5935012154657, 012154657
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 AUG 1985 | 01-215-4657 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-215-4657
Demand History | NSN 5935-01-215-4657
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-215-4657 | 2020-02-44 | 8 | DIBBS |
| 5935-01-215-4657 | 2020-02-33 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-215-4657
Related Products | NSN 5935-01-215-4657
Technical Data | NSN 5935-01-215-4657
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 2.125 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.469 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN AND UN |
| NOMINAL THREAD SIZE | 2.025 INCHES AND 2.025 INCHES |
| THREAD CLASS | 2A AND 2B |
| THREAD QUANTITY PER INCH | 16 AND 16 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.467 INCHES AND 0.664 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 145.0 |
| MATING END QUANTITY | 1 |

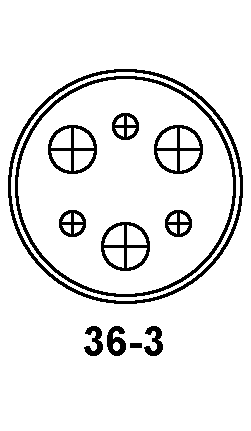

| CONTACT POSITION ARRANGEMENT STYLE | AGAT 36-3 SINGLE MATING END |
| INSERT MATERIAL | RUBBER SILICONE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 3 SINGLE MATING END 1ST CONTACT GROUPING 3 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 245.0 SINGLE MATING END 1ST CONTACT GROUPING 41.0 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 900.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 1250.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | CRIMP SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF |
| SPECIAL FEATURES | IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL; |
