NSN 5935-01-213-3689 SX39571099P, SX3957-10-99P, 217106
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-213-3689 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: SX39571099P, SX3957-10-99P, 217106, 5935-01-213-3689, 01-213-3689, 5935012133689, 012133689
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 JUL 1985 | 01-213-3689 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-213-3689
Demand History | NSN 5935-01-213-3689
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SX3957-10-99P | 2024-08-214 | 22 | DIBBS |
| SX3957-10-99P | 2023-09-250 | 26 | DIBBS |
| SX3957-10-99P | 2023-04-104 | 21 | DIBBS |
| SX3957-10-99P | 2023-04-93 | 21 | DIBBS |
| SX3957-10-99P | 2023-03-82 | 21 | DIBBS |
| 5935-01-213-3689 | 2018-10-284 | 55 | DIBBS |
| 5935-01-213-3689 | 2017-12-362 | 27 | DIBBS |
| 5935-01-213-3689 | 2017-10-288 | 18 | DIBBS |
| 5935-01-213-3689 | 2017-03-61 | 24 | DIBBS |
| 5935-01-213-3689 | 2017-02-38 | 23 | DIBBS |
| 5935-01-213-3689 | 2016-12-347 | 21 | DIBBS |
| 5935-01-213-3689 | 2016-09-251 | 20 | DIBBS |
| 5935-01-213-3689 | 2016-04-110 | 18 | DIBBS |
| 5935-01-213-3689 | 2015-01-01 | 32 | DIBBS |
| 5935-01-213-3689 | 2014-11-324 | 20 | DIBBS |
| 5935-01-213-3689 | 2014-07-195 | 14 | DIBBS |
| 5935-01-213-3689 | 2014-07-183 | 14 | DIBBS |
| 5935-01-213-3689 | 2012-12-336 | 0 | DIBBS |
| 5935-01-213-3689 | 2012-11-309 | 13 | DIBBS |
| 5935-01-213-3689 | 2012-08-244 | 21 | DIBBS |
| 5935-01-213-3689 | 2012-08-220 | 24 | DIBBS |
| 5935-01-213-3689 | 2012-07-185 | 14 | DIBBS |
| 5935-01-213-3689 | 2012-06-153 | 11 | DIBBS |
| 5935-01-213-3689 | 2012-05-125 | 18 | DIBBS |
| 5935-01-213-3689 | 2012-04-98 | 0 | DIBBS |
| 5935-01-213-3689 | 2012-03-89 | 16 | DIBBS |
| 5935-01-213-3689 | 2012-03-61 | 11 | DIBBS |
| 5935-01-213-3689 | 2012-02-40 | 7 | DIBBS |
| 5935-01-213-3689 | 2008-07-184 | 14 | DIBBS |
| 5935-01-213-3689 | 2008-06-169 | 7 | DIBBS |
| 5935-01-213-3689 | 2008-05-126 | 14 | DIBBS |
| 5935-01-213-3689 | 2008-04-109 | 5 | DIBBS |
| 5935-01-213-3689 | 2008-02-38 | 11 | DIBBS |
| 5935-01-213-3689 | 2008-02-36 | 4 | DIBBS |
| 5935-01-213-3689 | 2007-05-144 | 13 | DIBBS |
| 5935-01-213-3689 | 2006-06-177 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-213-3689
Related Products | NSN 5935-01-213-3689
Technical Data | NSN 5935-01-213-3689
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 22C ANGLE SHAPE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | 03-10479 MFR REF ALL TREATMENT RESPONSES |
| MATING END QUANTITY | 1 |

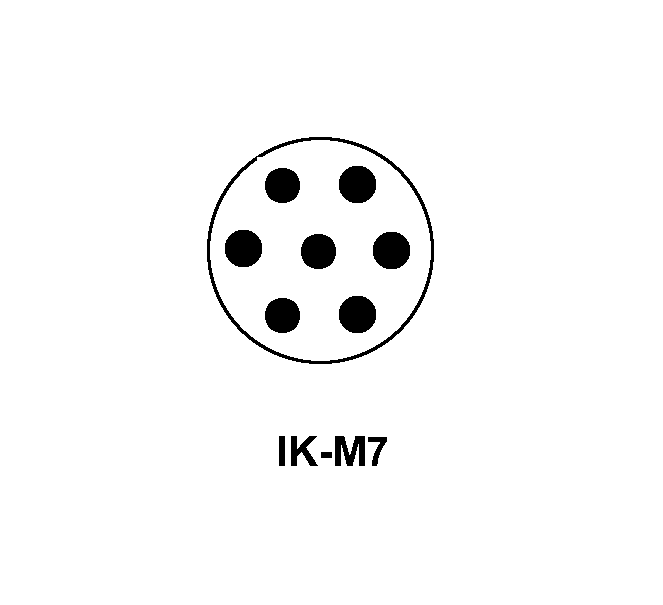

| CONTACT POSITION ARRANGEMENT STYLE | AHCQ IK-M7 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 7 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| III END ITEM IDENTIFICATION | B-1B PACER BEE |
| MANUFACTURERS CODE | 59875 |
| MFR SOURCE CONTROLLING REFERENCE | 217106 |
Restrictions/Controls & Freight Information | NSN 5935-01-213-3689
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-213-3689
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
