Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-209-4127 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: W-C-596/100, WC596/100-2, WC596100, WC5961002, 5935-01-209-4127, 01-209-4127, 5935012094127, 012094127
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 MAY 1985 | 01-209-4127 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-209-4127
Demand History | NSN 5935-01-209-4127
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-209-4127 | 2011-01-12 | 9 | DIBBS |
| 5935-01-209-4127 | 2010-08-239 | 9 | DIBBS |
| 5935-01-209-4127 | 2007-03-72 | 38 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-209-4127
Related Products | NSN 5935-01-209-4127
Technical Data | NSN 5935-01-209-4127
| Characteristic | Specifications |
|---|---|

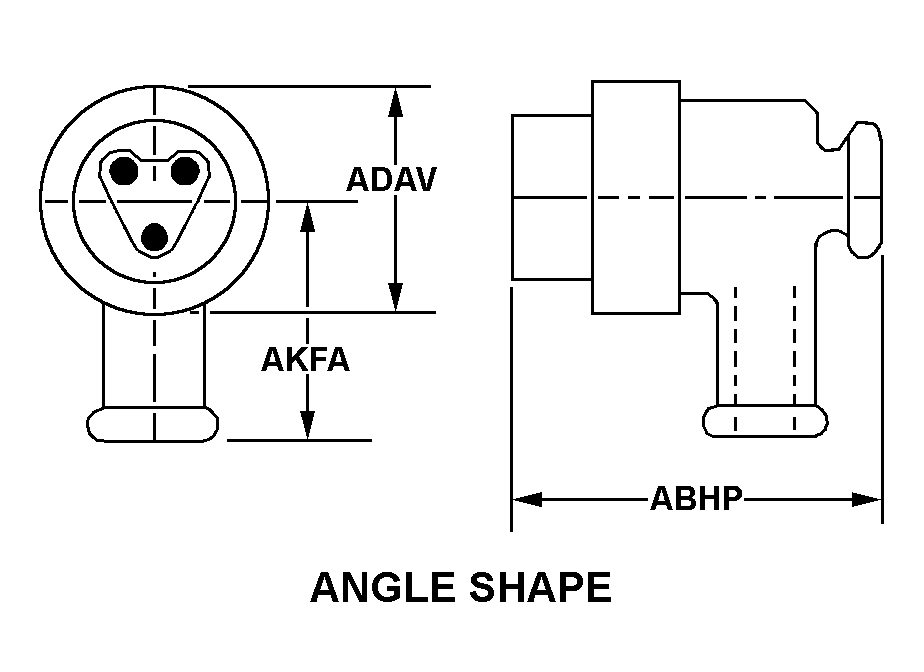

| BODY STYLE | 23C ANGLE SHAPE |
| OVERALL DIAMETER | 1.656 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO CABLE END | 1.062 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | CONTACT TWISTLOCK |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.300 INCHES MINIMUM AND 0.575 INCHES MAXIMUM |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ADDT 3 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END 1ST CONTACT GROUPING 2 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 15.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 125.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SCREW SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND SALT WATER RESISTANT |
| TEST DATA DOCUMENT | 81348-W-C-596 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81348-W-C-596/100 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | W-C-596/100 |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WC596/100-2 |
