NSN 5935-01-202-8508 M85049/10-11W, M850491011W, AS85049/10
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-202-8508 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: M85049/10-11W, M850491011W, AS85049/10, AS8504910, MIL-C-85049/10, MILC8504910, 5935-01-202-8508, 01-202-8508, 5935012028508, 012028508
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 MAR 1985 | 01-202-8508 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |

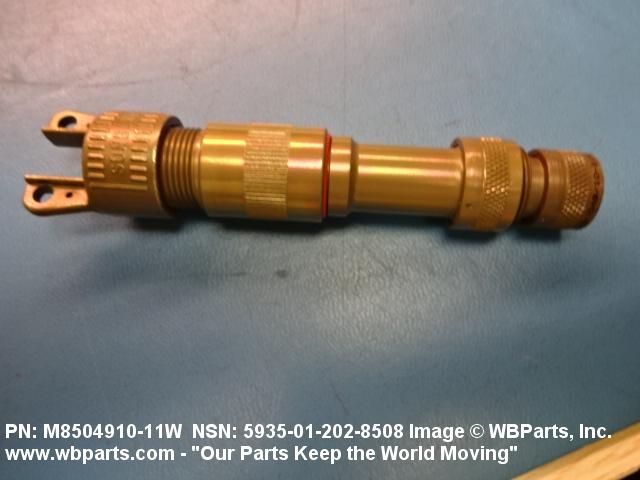

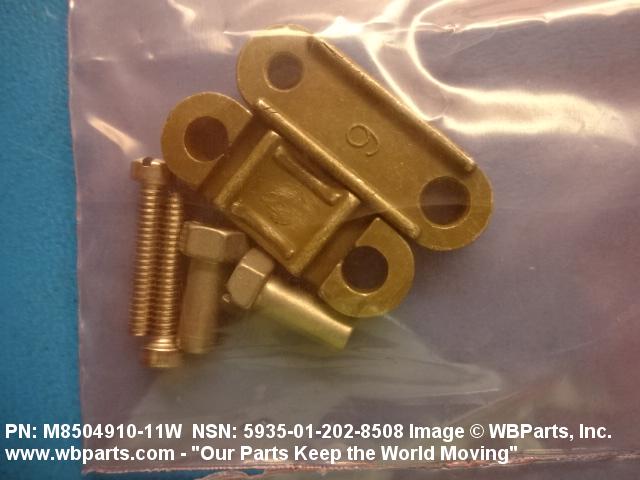

Drawings & Photos | NSN 5935-01-202-8508
Demand History | NSN 5935-01-202-8508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-202-8508 | 2022-02-28 | 991 | DIBBS |
| 5935-01-202-8508 | 2022-02-17 | 991 | DIBBS |
| 5935-01-202-8508 | 2021-04-22 | 126 | DIBBS |
| 5935-01-202-8508 | 2020-09-28 | 67 | DIBBS |
| 5935-01-202-8508 | 2018-09-06 | 105 | DIBBS |
| AS8504910 | 2017-07-28 | 1 | us |
| M850491011W | 2017-05-01 | 1 | United States |
| M850491011W | 2017-03-16 | 1 | United States |
Cross Reference | NSN 5935-01-202-8508
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-202-8508
Related Products | NSN 5935-01-202-8508
Technical Data | NSN 5935-01-202-8508
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4C STRAIGHT TYPE W/CABLE CLAMP |
| OVERALL LENGTH | 4.294 INCHES NOMINAL |
| OVERALL HEIGHT | 1.312 INCHES NOMINAL |
| OVERALL WIDTH | 0.858 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.250 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| SEAL TYPE | GROMMET AND PREFORMED PACKING |
| SEAL MATERIAL | RUBBER, SILICONE BASE |
| SIZE DESIGNATION | 10 AND 10S AND 10SL |
| TEST DATA DOCUMENT | 81349-MIL-C-85049 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-85049/10 GOVERNMENT SPECIFICATION |
Restrictions/Controls & Freight Information | NSN 5935-01-202-8508
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-202-8508
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
