NSN 5935-01-202-3064 GE43899, GE4389-9, W-C-596/66
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-202-3064 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: GE43899, GE4389-9, W-C-596/66, W-C-596/66-2 , WC596/66-2, WC59666, WC596662, 5466SSAN, 5466-SS-AN, 5466XAN, 5475N, 5874AN, 6865, 5935-01-202-3064, 01-202-3064, 5935012023064, 012023064
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 FEB 1985 | 01-202-3064 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-202-3064
Demand History | NSN 5935-01-202-3064
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-202-3064 | 2018-12-335 | 2 | SA |
Cross Reference | NSN 5935-01-202-3064
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5466-SS-AN | 81091 | PASS & SEYMOUR INC DIV PASS & SEYMOUR |
| 5466XAN | 81091 | PASS & SEYMOUR INC DIV PASS & SEYMOUR |
| 5475N | 71183 | BRYANT ELECTRIC |
| 5874AN | 81091 | PASS & SEYMOUR INC DIV PASS & SEYMOUR |
| 6865 | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
| GE4389-9 | 24446 | GENERAL ELECTRIC CO |
| W-C-596/66 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| W-C-596/66-2 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-202-3064
Related Products | NSN 5935-01-202-3064
Technical Data | NSN 5935-01-202-3064
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 23C ANGLE SHAPE |
| OVERALL LENGTH | 1.312 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.550 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO CABLE END | 0.575 INCHES MAXIMUM |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

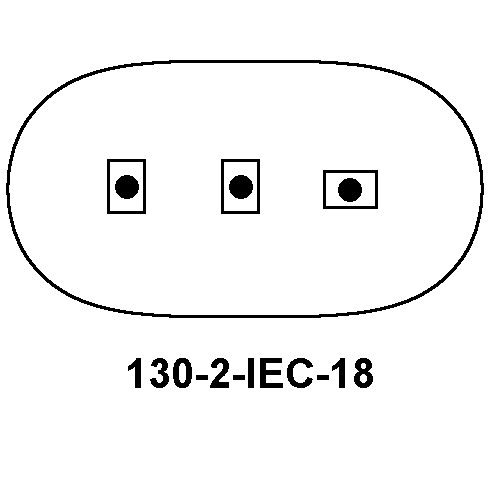

| CONTACT POSITION ARRANGEMENT STYLE | ADFA 130-2-IEC-18 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END 1ST CONTACT GROUPING 2 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END 1ST CONTACT GROUPING FLAT PIN SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 20.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 250.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 250.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SCREW SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | SIDE SINGLE MATING END ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | SALT WATER RESISTANT |
| TEST DATA DOCUMENT | 81348-W-C-596 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81348-W-C-596/66 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | W-C-596/66 |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WC596/66-2 |
