NSN 5935-01-192-7311 D38999/26WA35SN, D3899926WA35SN, DOD-C-38999/26

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-192-7311 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: D38999/26WA35SN, D3899926WA35SN, DOD-C-38999/26, DODC3899926, GHN20076312, GHN20076-312 , MIL-DTL-38999/26, MILDTL3899926, 757592989202 , 5935-01-192-7311, 01-192-7311, 5935011927311, 011927311

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	25 OCT 1984	01-192-7311	01938 ( CONNECTOR, PLUG, ELECTRICAL )

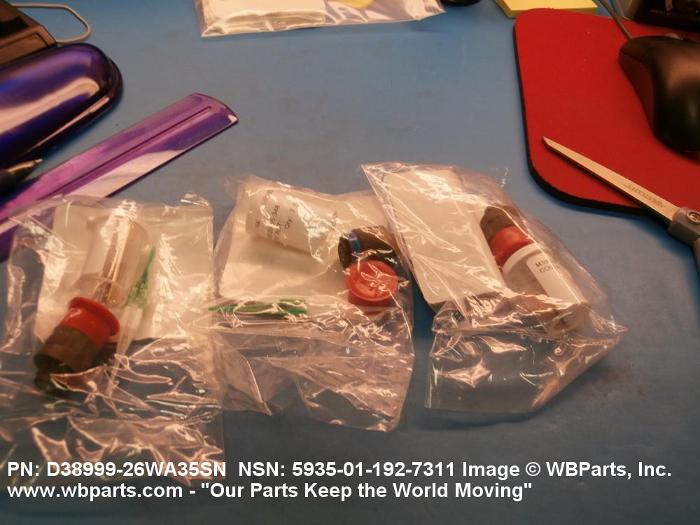

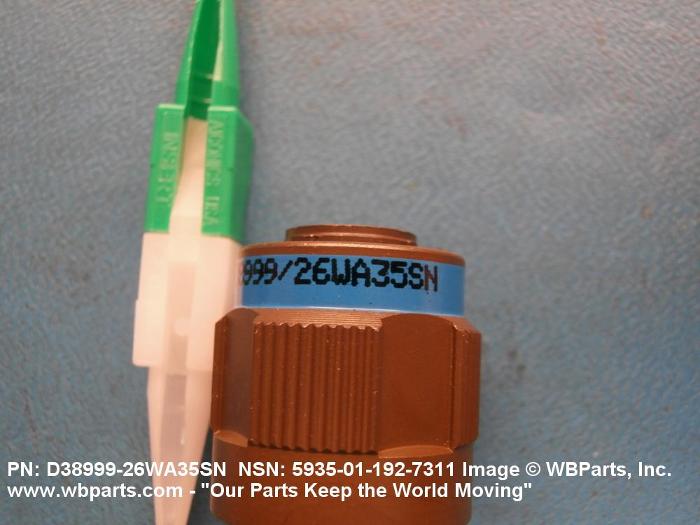

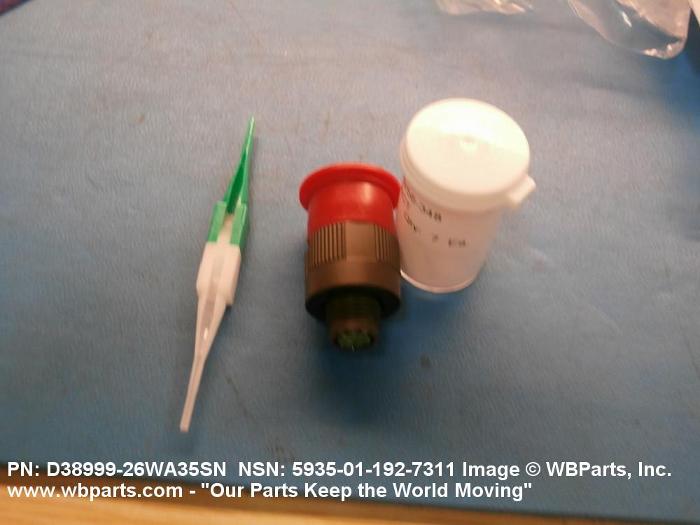

Drawings & Photos | NSN 5935-01-192-7311

Part Number	Request Date	QTY	Origin
D3899926WA35SN	2024-04-106	2	US
5935-01-192-7311	2024-04-106	427	DIBBS
D3899926WA35SN	2024-04-104	2	US
5935-01-192-7311	2023-04-120	982	DIBBS
5935-01-192-7311	2022-05-121	356	DIBBS
D3899926WA35SN	2021-08-217	194	United States
5935-01-192-7311	2021-05-133	1146	DIBBS
5935-01-192-7311	2020-10-275	326	DIBBS
5935-01-192-7311	2020-06-166	4	PL
D3899926WA35SN	2020-04-107	1	United States
5935-01-192-7311	2018-07-184	100	US
5935-01-192-7311	2017-11-318	1	DIBBS-KIT
D38999/26WA35SN	2017-11-318	1
D3899926WA35SN	2015-12-344	4	United States
D38999/26WA35SN	2015-06-174	6	Greece
D3899926WA35SN	2014-08-224	6	US
5935-01-192-7311	2013-06-154	2	MANUAL
D38999/26WA35SN	2013-06-154	2	United States
5935-01-192-7311	2013-05-145	0	DIBBS
D38999/26WA35SN	2013-04-113	3	United States
5935-01-192-7311	2013-01-23	90	United States
5935-01-192-7311	2013-01-18	8	US
5935-01-192-7311	2013-01-18	8	US
D3899926WA35SN	2013-01-02	101	US
D3899926WA35SN	2012-12-354	3	Malaysia
D38999/26WA35SN	2012-07-200	40
D38999/26WA35SN	2011-12-355	2	ID
D3899926WA35SN	2011-03-60	3	US
D3899926WA35SN	2010-10-291	2	US
D3899926WA35SN	2010-10-291	2	US
5935-01-192-7311	2010-04-95	1490	DIBBS
5935-01-192-7311	2010-03-67	679	DIBBS
5935-01-192-7311	2009-09-252	2200	DIBBS
D3899926WA35SN	2009-05-138	2	IT
5935-01-192-7311	2009-05-134	985	DIBBS
D3899926WA35SN	2007-09-271	1	US

Cross Reference | NSN 5935-01-192-7311

Part Number	Cage Code	Manufacturer
757592989202	0000V	NCB HUNGARY HONVEDSEGI EGYSEGES TERMEKKOD
D38999/26WA35SN	59976	AERO-ELECTRIC CONNECTOR, INC.
D38999/26WA35SN	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
DOD-C-38999/26	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-38999/26	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-192-7311

Compare

Related Products | NSN 5935-01-192-7311

5935-01-192-7312, 5935-01-192-7314, 5935-01-192-7315, 5935-01-192-7316, 5935-01-192-7369

Technical Data | NSN 5935-01-192-7311

Characteristic	Specifications
BODY STYLE	7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	31.0 MILLIMETERS MAXIMUM
OVERALL DIAMETER	21.8 MILLIMETERS MAXIMUM
CONNECTOR LOCKING METHOD	INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE	BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR	ISO M AND SPECIAL ACME
NOMINAL THREAD SIZE	12.0 MILLIMETERS AND 0.625 INCHES
THREAD CLASS	2A
THREAD TOLERANCE CLASS	6G EXTERNAL
THREAD QUANTITY PER INCH	10
THREAD PITCH IN MILLIMETERS	1.00
THREAD DIRECTION	RIGHT-HAND AND RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	AGCY 9-35 SINGLE MATING END
INSERT MATERIAL	PLASTIC EPOXY SINGLE MATING END
INCLUDED CONTACT QUANTITY	6 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
TEST DATA DOCUMENT	81349-DOD-C-38999 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-DOD-C-38999/26 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.030 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	D38999/26WA35SN
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-38999/26

Restrictions/Controls & Freight Information | NSN 5935-01-192-7311

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-192-7311

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	F	Reparable item. When uneconomically reparable, condemn and dispose at the third echelon level.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
