Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-183-6711 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: 100 000 629, 153A, 5935-01-183-6711, 01-183-6711, 5935011836711, 011836711, 100000629

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 07 JUL 1984 01-183-6711

Drawings & Photos | NSN 5935-01-183-6711


Cross Reference | NSN 5935-01-183-6711

Part Number Cage Code Manufacturer
100 000 629 06KW9 LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP
100 000 629 64959 AMERICAN TELEPHONE AND TELEGRAPH CO
153A 06KW9 LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP
153A 64959 AMERICAN TELEPHONE AND TELEGRAPH CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-183-6711

Technical Data | NSN 5935-01-183-6711

Characteristic Specifications

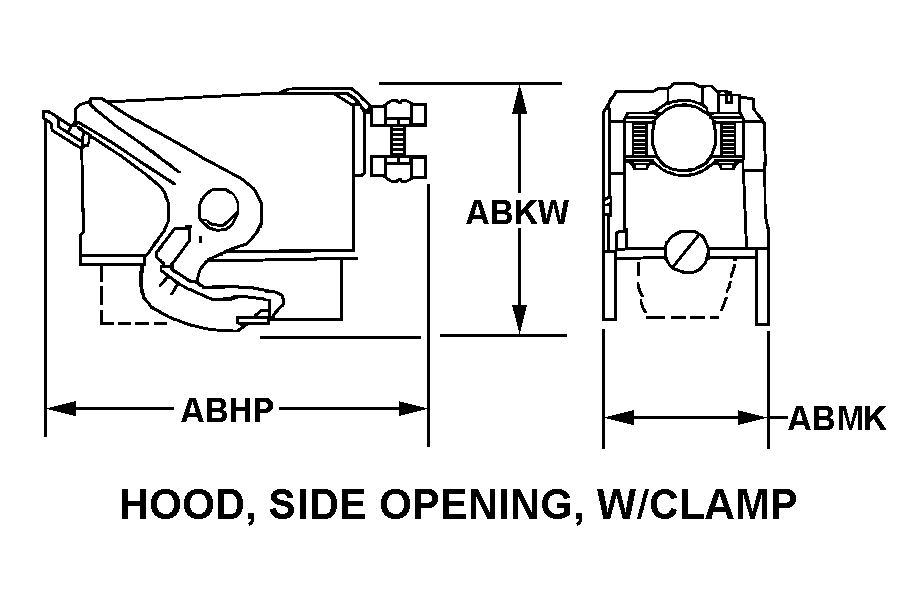

BODY STYLE 26A HOOD, SIDE OPENING, W/CLAMP
OVERALL LENGTH 3.781 INCHES NOMINAL
OVERALL HEIGHT 1.312 INCHES NOMINAL
OVERALL WIDTH 0.660 INCHES NOMINAL
CONNECTOR LOCKING METHOD JACKSCREW-SOCKET
THREADED DEVICE TYPE COUPLING FACILITY
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD SIZE 0.112 INCHES
THREAD CLASS 2A AND 2B
THREAD QUANTITY PER INCH 40
THREAD DIRECTION RIGHT-HAND
CONNECTOR CABLE STRAIN RELIEF METHOD CABLE CLAMP
CABLE ENTRANCE DIAMETER 0.530 INCHES NOMINAL
SHELL TYPE HOOD, SIDE OPENING
SHELL MATERIAL COPPER ALLOY
SHELL SURFACE TREATMENT CADMIUM AND CHROMATE
POLARIZATION METHOD SHELL
MATING END QUANTITY 1
CONTACT POSITION ARRANGEMENT STYLE CDAT 50 SINGLE MATING END
INSERT MATERIAL PLASTIC DIALLYL PHTHALATE SINGLE MATING END
INCLUDED CONTACT QUANTITY 8 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE LEAF SPRING SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE TAB, SOLDER LUG SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION BACK SINGLE MATING END SINGLE CONTACT GROUPING
SPECIAL FEATURES CONTACTS 2,3,5 THROUGH 19,21 THROUGH 24,27,28,30 THROUGH 44,46 THROUGH 49 OMITTED
III PRECIOUS MATERIAL GOLD AND SILVER
III PRECIOUS MATERIAL AND WEIGHT 0.008 GOLD GRAINS, TROY AND 0.008 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER

Restrictions/Controls & Freight Information | NSN 5935-01-183-6711

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:GItem contains gold
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061680 ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 658 unknown
Originating Activity Code TH Defense Supply Center Columbus
Columbus, OH 43215
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5935-01-183-6711

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeEHSX:ELECTRONIC COMPONENTS
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
