NSN 5935-01-172-9912 MS3437B17A, MS90454/295, MS90454295

Product Details | ELECTRICAL CONNECTOR BACKSHELL

5935-01-172-9912 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.

Part Alternates: MS3437B17A, MS90454/295, MS90454295, M85049/11-17, M85049/11-17W, M850491117, M850491117W, AS-85049/11, AS8504911, MIL-C-85049/11, MILC8504911, 811AD0293, 5935-01-172-9912, 01-172-9912, 5935011729912, 011729912

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	29 FEB 1984	01-172-9912	67169 ( BACKSHELL, ELECTRICAL CONNECTOR )

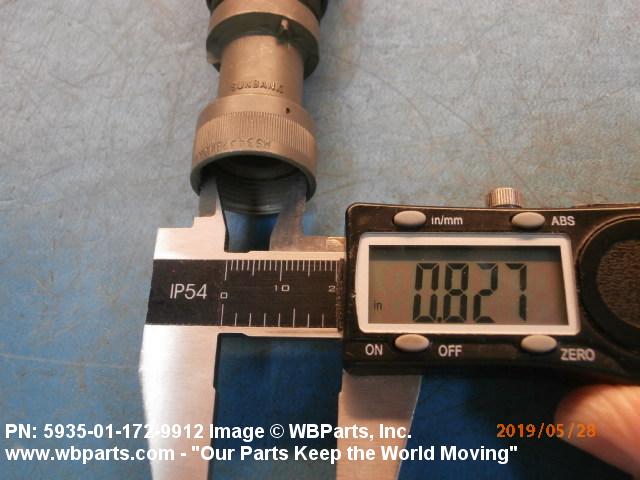

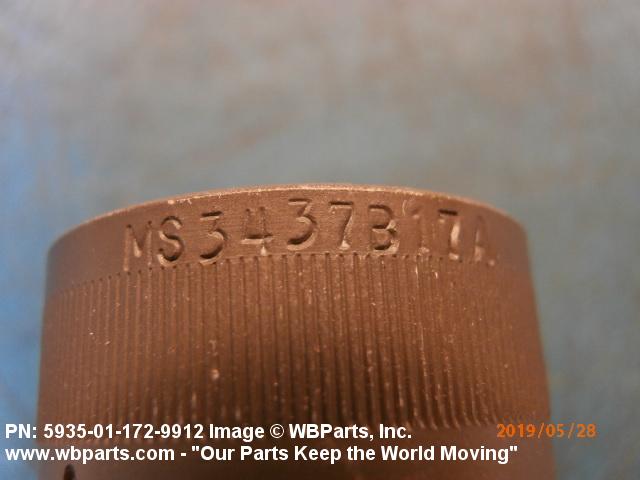

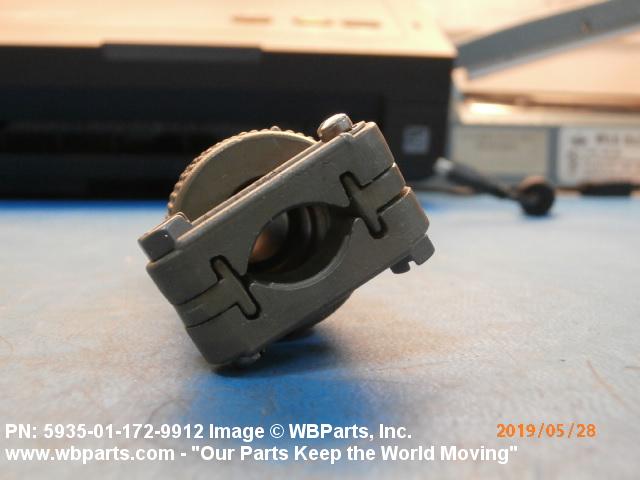

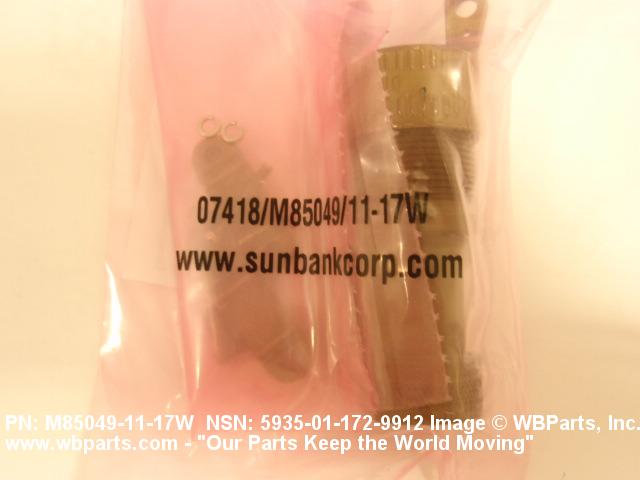

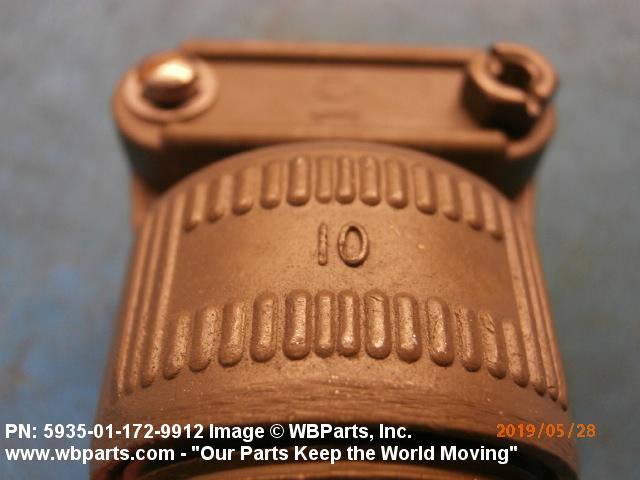

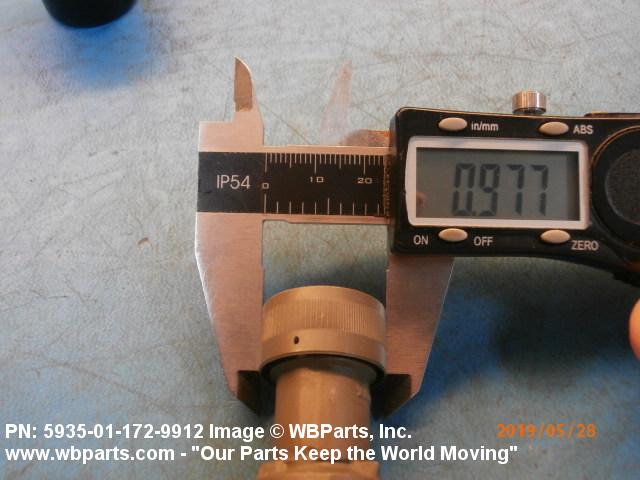

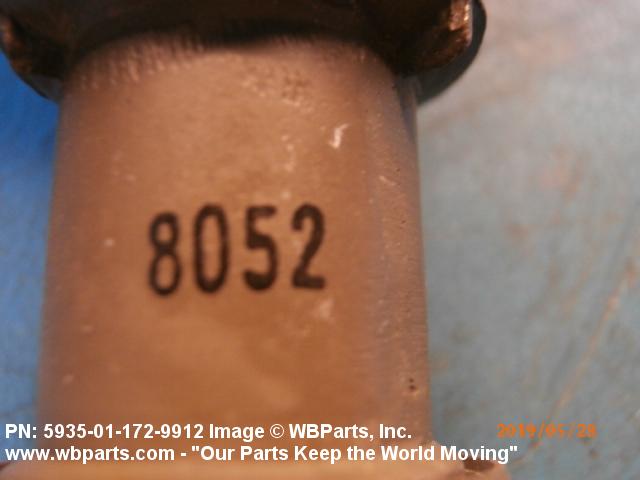

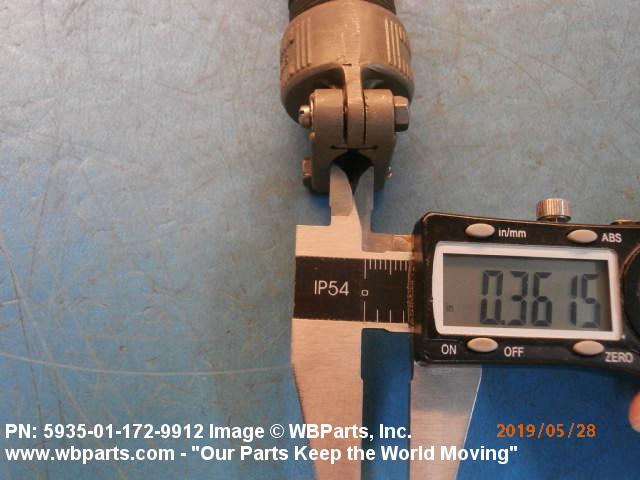

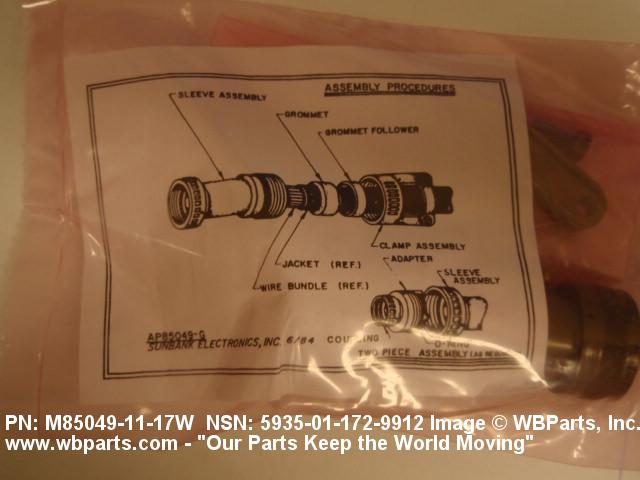

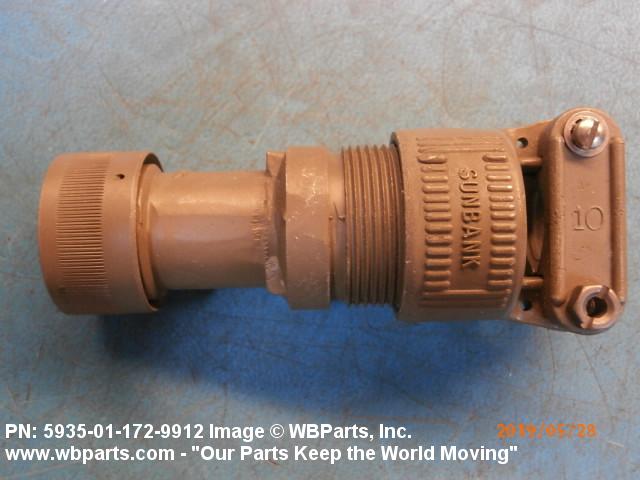

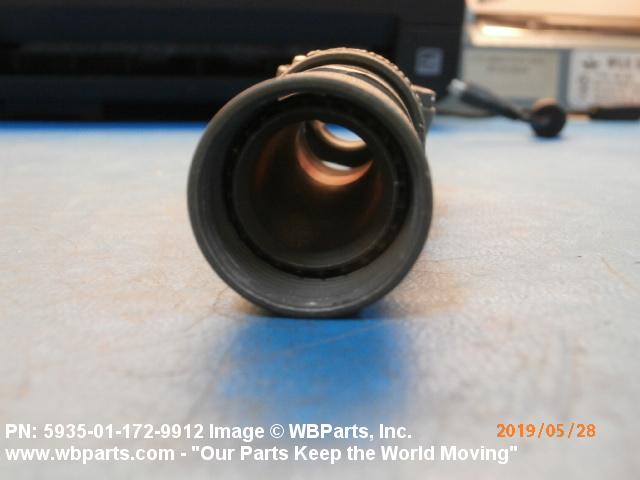

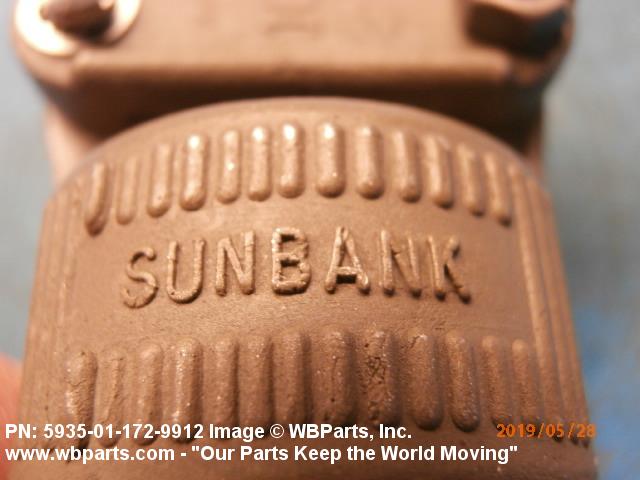

Drawings & Photos | NSN 5935-01-172-9912

Part Number	Request Date	QTY	Origin
5935-01-172-9912	2024-06-164	292	DIBBS
5935-01-172-9912	2023-01-05	139	DIBBS
5935-01-172-9912	2022-12-347	402	DIBBS
5935-01-172-9912	2019-02-52	1	United States
5935-01-172-9912	2018-12-353	422	DIBBS
5935-01-172-9912	2018-03-71	357	DIBBS
M850491117W	2015-05-138	12	United States
M85049/11-17W	2014-10-296	1	United States
M850491117W	2013-02-38	35	US
5935-01-172-9912	2012-08-229	195	DIBBS
5935-01-172-9912	2012-07-198	0	DIBBS
5935-01-172-9912	2012-05-151	600	DIBBS
5935-01-172-9912	2012-05-129	184	DIBBS
5935-01-172-9912	2012-02-55	33	DIBBS
5935-01-172-9912	2011-09-255	0	DIBBS
5935-01-172-9912	2011-08-238	350	DIBBS
5935-01-172-9912	2010-07-188	6	United States
5935-01-172-9912	2010-01-27	470	DIBBS
M850491117W	2009-12-341	32	United States
5935-01-172-9912	2009-03-86	115	DIBBS
MS3437B17A	2008-04-113	4	US
5935-01-172-9912	2007-07-193	50	DIBBS
5935-01-172-9912	2007-06-152	25	DIBBS
5935-01-172-9912	2007-05-127	256	DIBBS
5935-01-172-9912	2007-03-90	126	DIBBS
5935-01-172-9912	2007-03-69	121	DIBBS

Cross Reference | NSN 5935-01-172-9912

Part Number	Cage Code	Manufacturer
811AD0293	A0199	OTO MELARA SPA
AS-85049/11	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M85049/11-17	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M85049/11-17	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M85049/11-17W	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M85049/11-17W	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-85049/11	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3437B17A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90454/295	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-172-9912

Compare

Related Products | NSN 5935-01-172-9912

5935-01-172-9913, 5935-01-172-9914, 5935-01-172-9915, 5935-01-172-9916, 5935-01-172-9917

Technical Data | NSN 5935-01-172-9912

Characteristic	Specifications
STYLE DESIGNATOR	4C STRAIGHT TYPE W/CABLE CLAMP
OVERALL LENGTH	ANY ACCEPTABLE
OVERALL HEIGHT	0.984 INCHES MAXIMUM
OVERALL WIDTH	ANY ACCEPTABLE
MATERIAL	ALUMINUM ALLOY
SURFACE TREATMENT	CADMIUM
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED COUPLING
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.875 INCHES
THREAD CLASS	2B

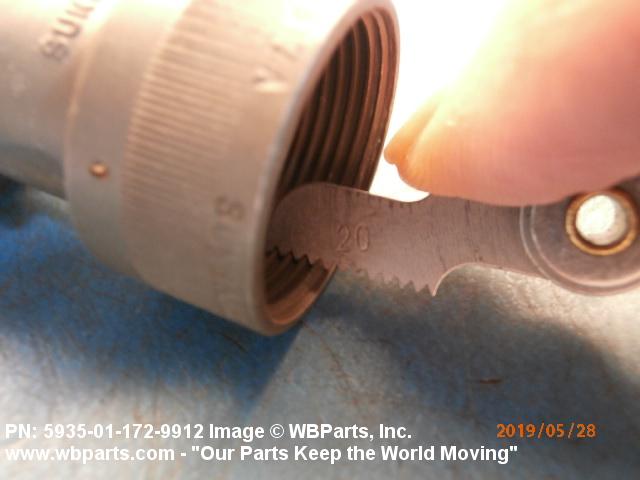

THREAD QUANTITY PER INCH	20
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD LENGTH	0.290 INCHES
CABLE OPENING QUANTITY	1
CABLE OPENING DIAMETER	0.350 INCHES MINIMUM AND 0.575 INCHES MAXIMUM
SEAL TYPE	GROMMET AND PREFORMED PACKING
SEAL MATERIAL	RUBBER
SIZE DESIGNATION	12 AND 14 AND 14S
TEST DATA DOCUMENT	81349-MIL-C-85049 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-85049/11 GOVERNMENT SPECIFICATION

Restrictions/Controls & Freight Information | NSN 5935-01-172-9912

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	156600	PLASTIC/RUBBER ARTICLE VIZ:
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	846	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-172-9912

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 FT : Foot

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Z FT : Foot
