NSN 5935-01-158-1043 MS3108B286SC, MS3108B28-6SC, MS3108E286S
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-158-1043 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3108B286SC, MS3108B28-6SC, MS3108E286S, MS3108E28-6S, MS3108R286S, MS3108R28-6S, MILC5015, 5935-01-158-1043, 01-158-1043, 5935011581043, 011581043
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 JUL 1983 | 01-158-1043 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

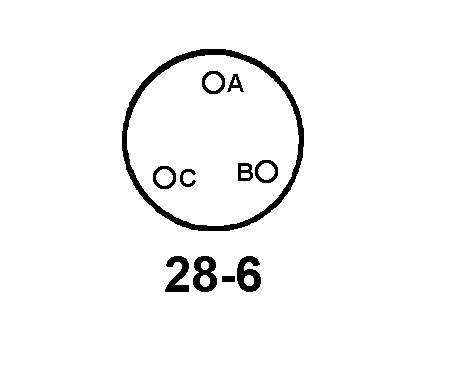

Drawings & Photos | NSN 5935-01-158-1043
Cross Reference | NSN 5935-01-158-1043
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILC5015 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3108B28-6SC | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3108E28-6S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3108R28-6S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
