Product Details | ELECTRICAL CONNECTOR BACKSHELL

5935-01-128-3792 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.

Part Alternates: BRFS5T14, S184415R59D, S1844-15R59D, ST5M1501B17, G705617NF, G7056-17-NF, 900513R411655, 900-513R4116-55, 10163556 , 5935-01-128-3792, 01-128-3792, 5935011283792, 011283792

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 20 MAR 1982 01-128-3792

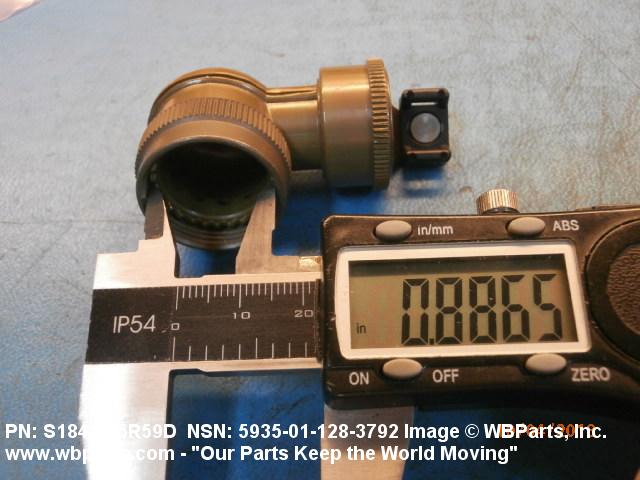

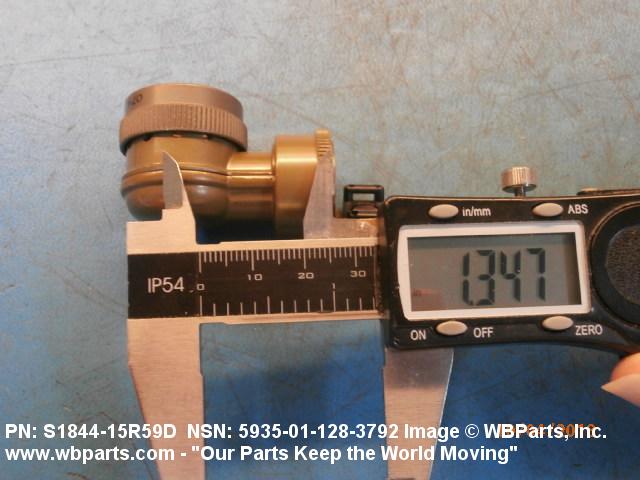

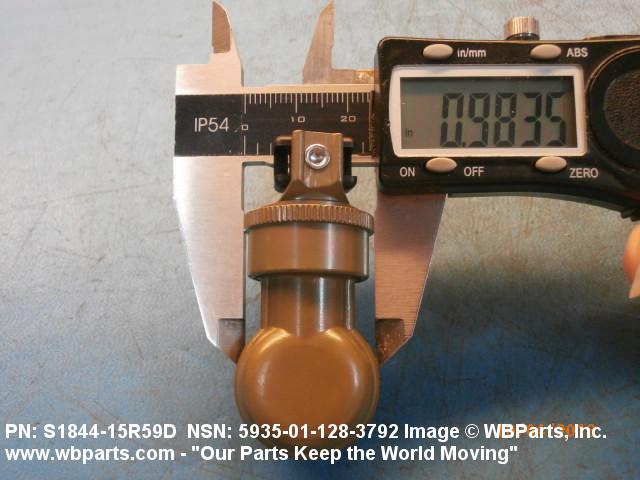

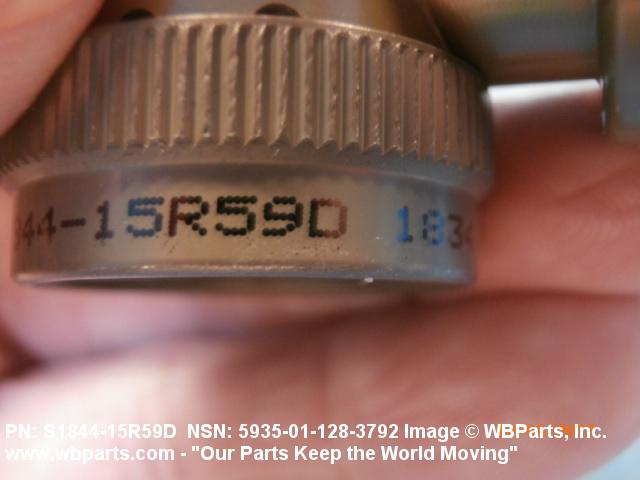

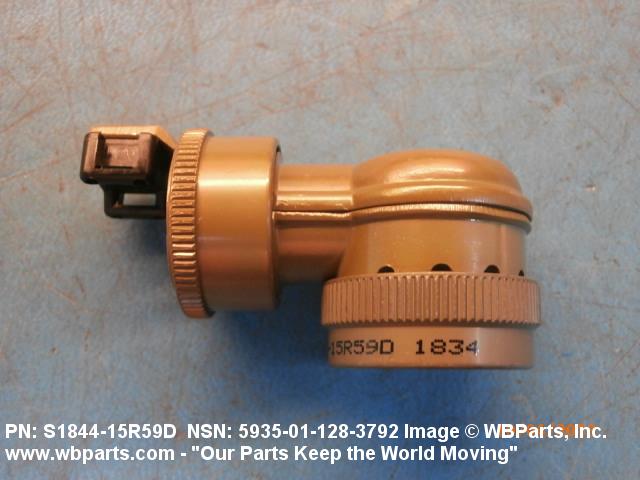

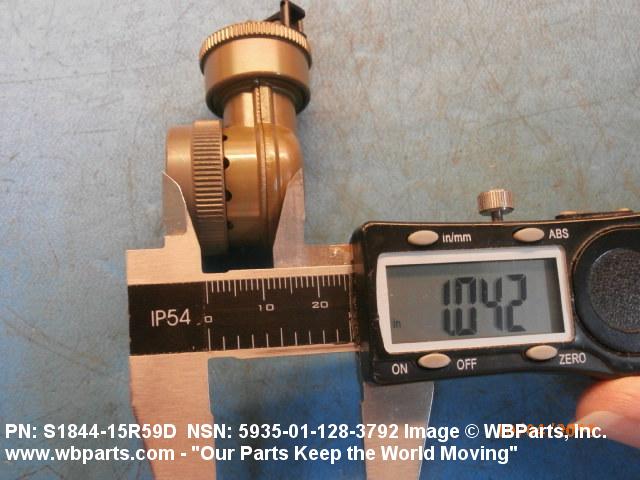

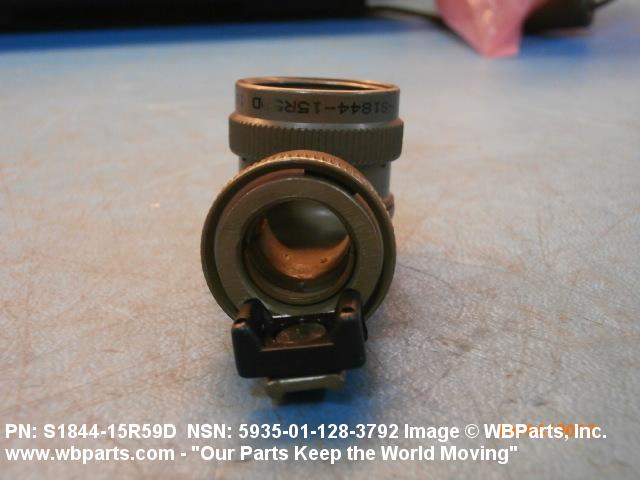

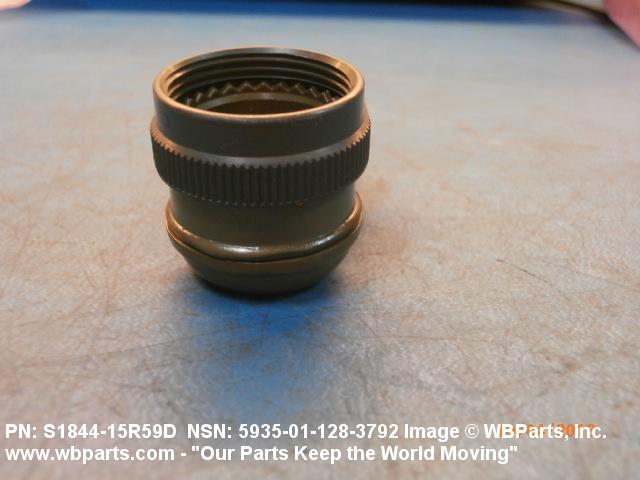

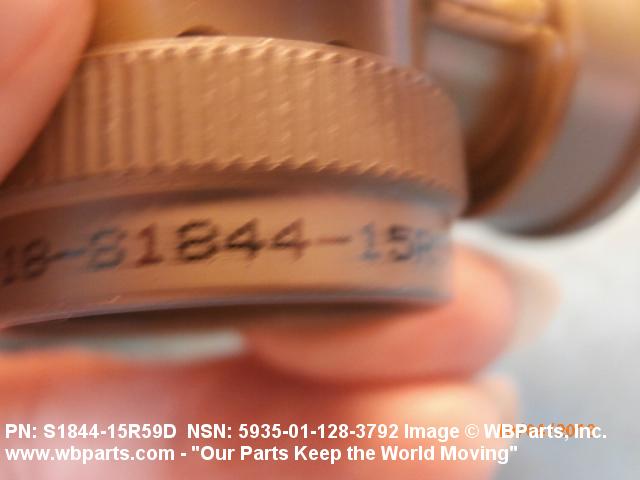

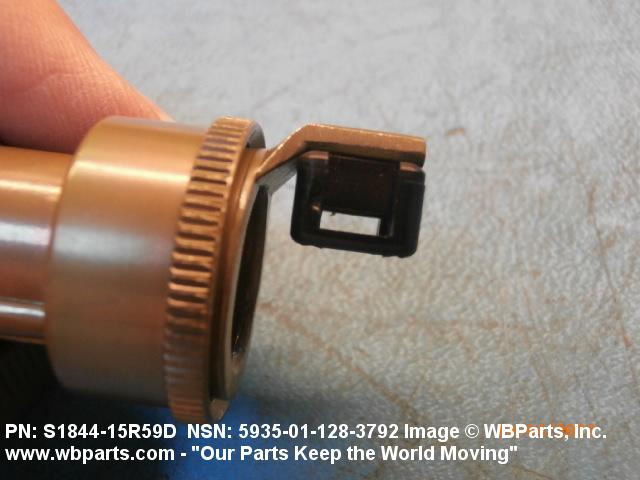

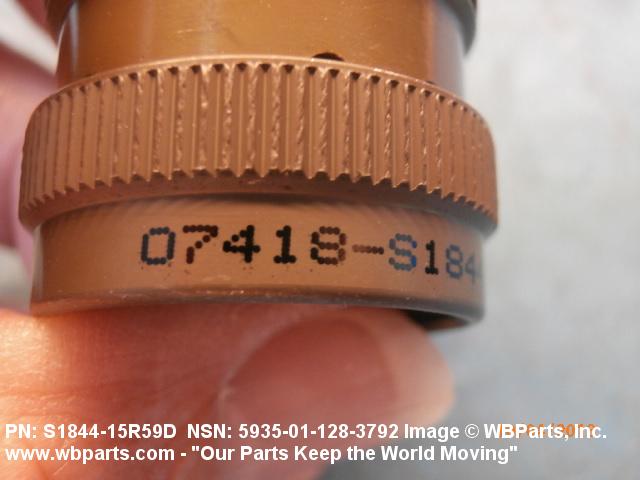

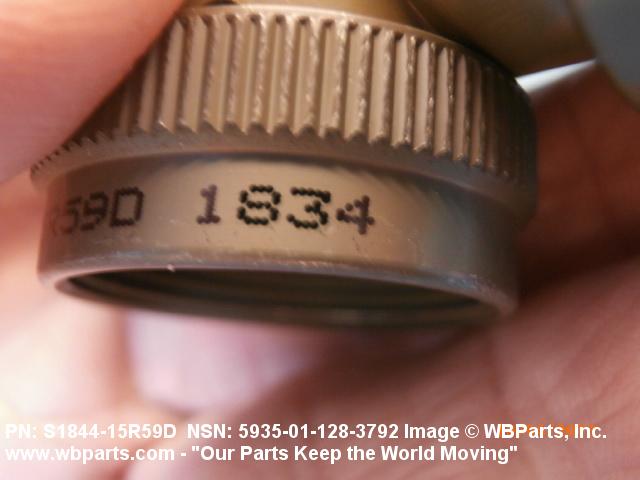

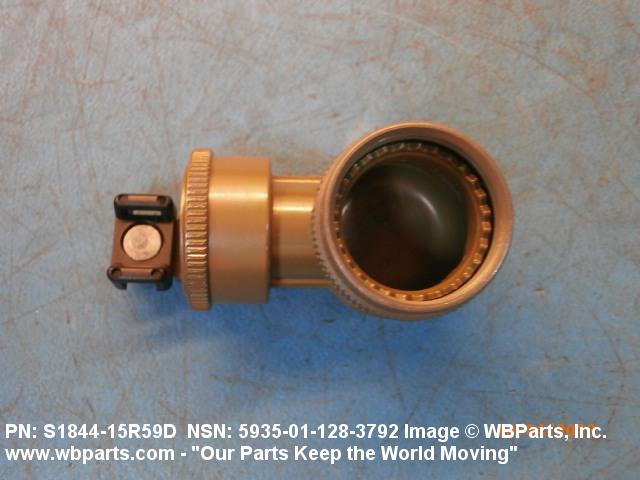

Drawings & Photos | NSN 5935-01-128-3792


Demand History | NSN 5935-01-128-3792

Part Number Request Date QTY Origin
900-513R4116-55 2024-06-24 143 DIBBS
G7056-17-NF 2024-06-24 143 DIBBS
S1844-15R59D 2024-06-24 143 DIBBS
ST5M1501B17 2024-06-24 143 DIBBS
900-513R4116-55 2024-06-13 143 DIBBS
G7056-17-NF 2024-06-13 143 DIBBS
S1844-15R59D 2024-06-13 143 DIBBS
ST5M1501B17 2024-06-13 143 DIBBS
5935-01-128-3792 2018-09-03 154 DIBBS
5935-01-128-3792 2018-04-19 60 DIBBS
5935-01-128-3792 2018-03-07 75 United States
5935-01-128-3792 2017-09-05 28 DIBBS
5935-01-128-3792 2016-09-29 40 DIBBS
5935-01-128-3792 2014-11-30 70 DIBBS
5935-01-128-3792 2012-02-08 65 DIBBS
5935-01-128-3792 2009-02-17 59 DIBBS
5935-01-128-3792 2007-06-07 128 DIBBS

Cross Reference | NSN 5935-01-128-3792

Part Number Cage Code Manufacturer
900-513R4116-55 31461 ELECTRO ADAPTER, INC. DBA PLATING
BRFS5T14 53551 ALLFAST FASTENING SYSTEMS, LLC
G7056-17-NF 06324 GLENAIR, INC.
S1844-15R59D 07418 JOSLYN SUNBANK COMPANY, LLC
ST5M1501B17 76301 BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-128-3792

Technical Data | NSN 5935-01-128-3792

Characteristic Specifications
STYLE DESIGNATOR 12C ANGLE TYPE W/CLAMP
OVERALL WIDTH 0.990 INCHES MAXIMUM
BODY ANGLE IN DEG 90.0
DISTANCE FROM CENTERLINE TO CONNECTOR END 1.300 INCHES MAXIMUM
DISTANCE FROM CENTERLINE TO CABLE END 1.380 INCHES MAXIMUM
MATERIAL ALUMINUM ALLOY
SURFACE TREATMENT CADMIUM
MOUNTING FACILITY TYPE AND QUANTITY 1 THREADED COUPLING
THREAD SERIES DESIGNATOR UNEF
NOMINAL THREAD SIZE 0.938 INCHES
THREAD CLASS 2B

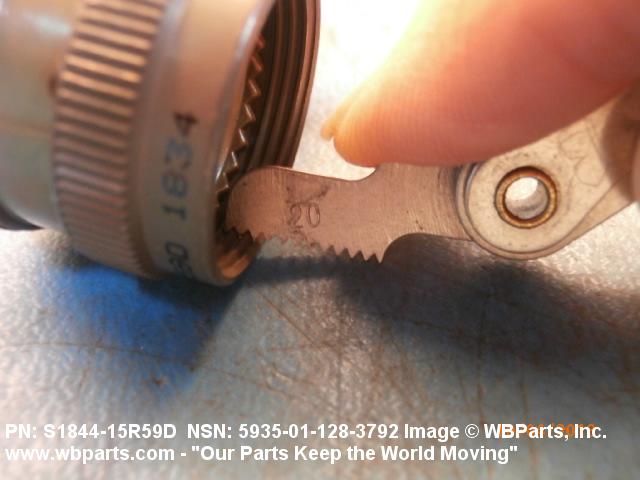

THREAD QUANTITY PER INCH 20
THREAD DIRECTION RIGHT-HAND
CABLE OPENING QUANTITY 1

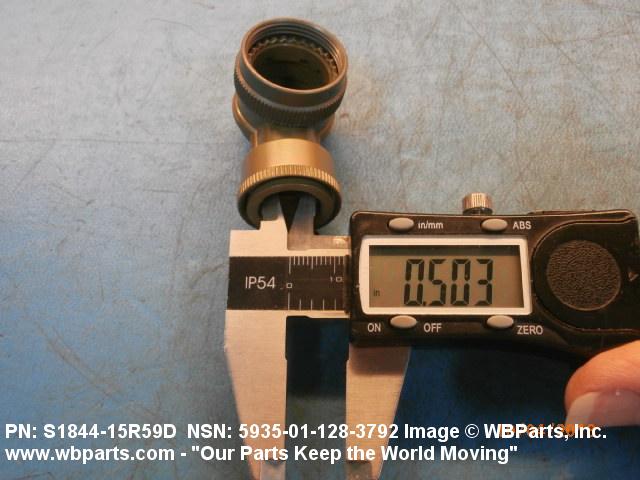

CABLE OPENING DIAMETER 0.505 INCHES MAXIMUM
SIZE DESIGNATION 17

Restrictions/Controls & Freight Information | NSN 5935-01-128-3792

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061680 ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 658 unknown
Originating Activity Code TX Defense Supply Center Columbus
Columbus, OH 43218
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5935-01-128-3792

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeEHSX:ELECTRONIC COMPONENTS
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price ValidationV The current standard price has been validated.
  • The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
  • The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
  • ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
