NSN 5935-01-108-4486 MS3116E145P, MS3116E14-5P, MS3116J145P
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-108-4486 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3116E145P, MS3116E14-5P, MS3116J145P, MS3116J14-5P, MS3126P145P, MS3126P14-5P, MS3476L14P5P, MS3476L14P-5P, MS3476W145P, MS3476W14-5P, MB16A1405PN, MB16A-1405PN, MB16W1405P, MB16W-1405P, ASC1240020, BT06JF145P, BT06JF-14-5-P, SLPT06E145P, SLPT06E14-5P, SLPT06E145PE, SLPT06E14-5PE, MILC26482, MIL-C-26482, 21269912, 212699-12, 31771835, 3177183-5, 33448541, 334485-41, 810BA0394, 5935-01-108-4486, 01-108-4486, 5935011084486, 011084486
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 FEB 1981 | 01-108-4486 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

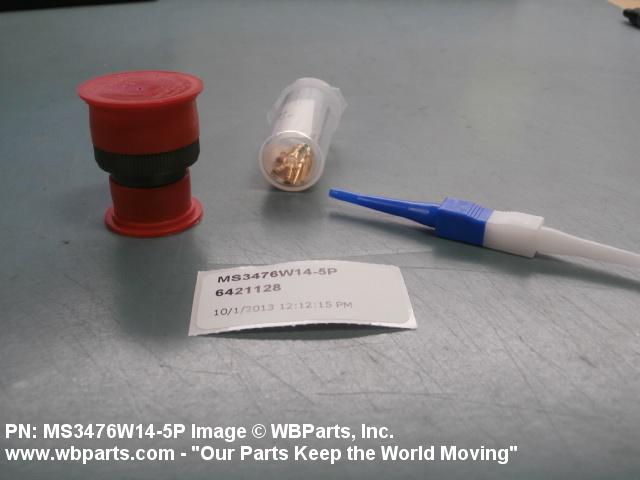

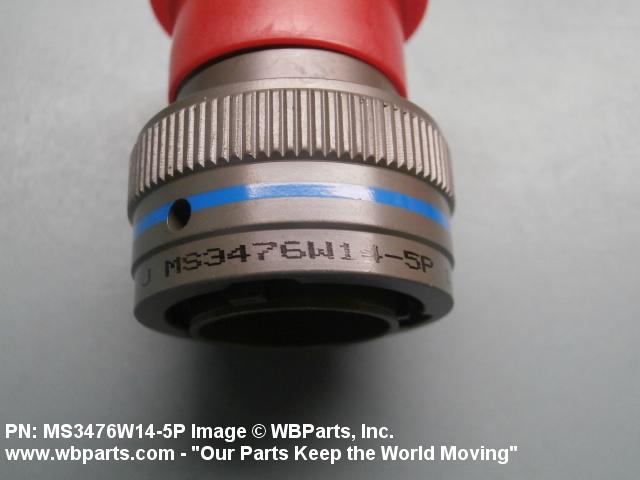

Drawings & Photos | NSN 5935-01-108-4486
Demand History | NSN 5935-01-108-4486
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-108-4486 | 2024-09-05 | 158 | DIBBS |
| 5935-01-108-4486 | 2024-03-10 | 251 | DIBBS |
| 5935-01-108-4486 | 2021-08-12 | 261 | DIBBS |
| 5935-01-108-4486 | 2021-04-12 | 203 | DIBBS |
| 5935-01-108-4486 | 2020-01-14 | 4 | United States |
| MS3476W145P | 2017-07-28 | 2 | us |
| MS3476W145P | 2013-10-07 | 2 | United States |
| 5935-01-108-4486 | 2013-10-07 | 10 | US |
| MILC26482 | 2011-01-27 | 4 | Portugal |
| 5935-01-108-4486 | 2010-10-26 | 105 | DIBBS |
| 5935-01-108-4486 | 2009-08-04 | 224 | DIBBS |
| 5935-01-108-4486 | 2009-07-21 | 117 | DIBBS |
| 5935-01-108-4486 | 2009-07-21 | 137 | DIBBS |
| 5935-01-108-4486 | 2009-06-19 | 160 | DIBBS |
Cross Reference | NSN 5935-01-108-4486
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 212699-12 | 09017 | EDO |
| 3177183-5 | 16623 | UNITED STATES DEPARTMENT OF THE NAVY DBA NAVAL UNDERSEA WARFARE CTR DIV |
| 334485-41 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 810BA0394 | A0199 | OTO MELARA SPA |
| ASC1240020 | Z4779 | ASC PTY LTD |
| BT06JF-14-5-P | 09922 | SOURIAU USA, INC. |
| DBA56-14-5PN | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
| MB16A-1405PN | 14283 | AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS |
| MB16W-1405P | 14283 | AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS |
| MIL-C-26482 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3116E14-5P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3116J14-5P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3126P14-5P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3476L14P-5P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3476W14-5P | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| MS3476W14-5P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PT05SE14-5P | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| SLPT06E14-5P | K1316 | DEUTSCH UK MILITARY PRODUCTS DIVISION |
| SLPT06E14-5PE | 05457 | BRITISH AEROSPACE NORTH AMERICA INC |
