NSN 5935-01-106-3899 MS3116E1626S, MS3116E16-26S, MS3116P1626S

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-106-3899 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS3116E1626S, MS3116E16-26S, MS3116P1626S, MS3116P16-26S, MS3116P1626SN, MS3116P16-26SN, MS3126F1626S, MS3126F16-26S, MS3126F1626SN, MS3126F16-26SN, MS3126W1626S, MS3126W16-26S, MS3476L1626S, MS3476L16-26S, MS3476W1626S, MS3476W16-26S, MS3476W1626SN, MS3476W-16-26SN, M3476W1626S, M3476W16-26S, M83723/13R1626N, M8372313R1626N, M83723F13R16F26N, MB16A1626SN, MB16A-1626SN, MB16W1626S, MB16W-1626S, SLPT06E1626S, SLPT06E16-26S, SP06CE1626SSR, DBA561626SN043, DBA56-16-26SN043, EA111626SE, EA1116-26SE, LS13580F1626SN, LS13580F16-26SN, MILC26482, MIL-C-26482, MILC8372313, MILC83723-13, PT06E1626S023, PT06E1626SSP, PT06E16-26S-SP, PT06SP1626S, PT06SP-16-26S, PV6R16B26SNL, 10138793 , 4142185012, 414-2185-012, 810BA0401, 5935-01-106-3899, 01-106-3899, 5935011063899, 011063899

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	16 JAN 1981	01-106-3899	01938 ( CONNECTOR, PLUG, ELECTRICAL )

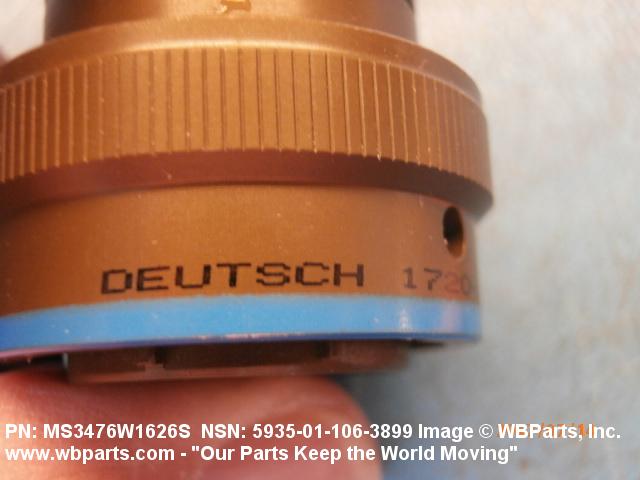

Drawings & Photos | NSN 5935-01-106-3899

Part Number	Request Date	QTY	Origin
5935-01-106-3899	2025-02-35	394	DIBBS
5935-01-106-3899	2024-09-255	487	DIBBS
5935-01-106-3899	2024-08-240	602	DIBBS
5935-01-106-3899	2024-02-45	659	DIBBS
5935-01-106-3899	2023-07-201	159	DIBBS
5935-01-106-3899	2022-11-317	433	DIBBS
5935-01-106-3899	2022-04-104	1	United States
MS3126F1626S	2021-08-236	7	MY
5935-01-106-3899	2021-01-07	695	DIBBS
5935-01-106-3899	2019-01-23	5	India
MS3476W1626S	2017-07-192	1	United States
MS3476W1626S	2016-03-64	2	us
MS3476L1626S	2014-10-302	20	Spain
MS3126F1626S	2014-04-115	2	Malaysia
MS3476L16-26S	2013-12-352	5	US
MS3476W1626S	2013-09-253	12	United States
MS3126F16-26S	2012-11-310	77
MS3476W1626S	2012-07-205	13	US
MS3126F1626S	2012-03-90	25	us
MS3476W1626S	2012-03-89	3	Italy
MS3126F1626S	2011-08-238	2	United States
MS3476L1626S	2011-05-132	40	SG
MILC26482	2011-01-27	4	Portugal
5935-01-106-3899	2010-04-104	8	DIBBS
5935-01-106-3899	2010-04-102	9	DIBBS
5935-01-106-3899	2010-04-96	8	DIBBS
5935-01-106-3899	2010-02-50	19	DIBBS

Cross Reference | NSN 5935-01-106-3899

Part Number	Cage Code	Manufacturer
414-2185-012	94756	BOEING COMPANY, THE DBA BOEING
810BA0401	A0199	OTO MELARA SPA
DBA56-16-26SN043	11139	DEUTSCH ENGINEERED CONNECTING DEVICES INC
EA1116-26SE	49367	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
LS13580F16-26SN	11139	DEUTSCH ENGINEERED CONNECTING DEVICES INC
M3476W16-26S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
M83723/13R1626N	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83723F13R16F26N	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MB16A-1626SN	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MB16W-1626S	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MIL-C-26482	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILC83723-13	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3116E16-26S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3116P16-26S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3116P16-26SN	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3126F16-26S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3126F16-26SN	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3126W16-26S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476L16-26S	06840	BENDIX CORP THE
MS3476L16-26S	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MS3476L16-26S	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3476L16-26S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476W-16-26SN	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476W16-26S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PT06E-16-26S(023)	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
PT06E16-26S-SP	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
PT06SP-16-26S	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
PV6R16B26SNL	71468	ITT CORPORATION DBA I T T CANNON
SLPT06E16-26S	K1316	DEUTSCH UK MILITARY PRODUCTS DIVISION
SP06CE-16-26S(SR)	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-106-3899

Compare

Related Products | NSN 5935-01-106-3899

5935-01-106-3900, 5935-01-106-3903, 5935-01-106-3904, 5935-01-106-3906, 5935-01-106-3907

Technical Data | NSN 5935-01-106-3899

Characteristic	Specifications
BODY STYLE	7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	1.420 INCHES MAXIMUM
OVERALL DIAMETER	1.305 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	BAYONET LATCH
THREADED DEVICE TYPE	BACK SHELL
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	1.000 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	20
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD LENGTH	0.290 INCHES
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY 6061 OR ALUMINUM ALLOY 380.0 OR ALUMINUM ALLOY A380.0
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-367,TY 6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-591 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-591 FED SPEC 3RD MATERIAL RESPONSE
SHELL SURFACE TREATMENT	CADMIUM AND CHROMATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	BCAA 16-26 SINGLE MATING END
INSERT MATERIAL	PLASTIC SINGLE MATING END
INCLUDED CONTACT QUANTITY	26 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	600.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 2,GRADE C,CL 1 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,CL 2 FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND THERMAL SHOCK RESISTANT AND CORROSION RESISTANT
SPECIAL FEATURES	IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL; STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-171-1966,P/N M85049/52-1-16W FOR THE STRAIGHT STYLE,OR NSN 5935-01-186-5611,P/N

Restrictions/Controls & Freight Information | NSN 5935-01-106-3899

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-106-3899

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	F	Reparable item. When uneconomically reparable, condemn and dispose at the third echelon level.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
