NSN 5935-01-105-3566 S33380M, S333-80M, GC860DV3
Product Details | ELECTRICAL CONNECTOR COVER
5935-01-105-3566 A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR.
Part Alternates: S33380M, S333-80M, GC860DV3, 5935-01-105-3566, 01-105-3566, 5935011053566, 011053566
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 DEC 1980 | 01-105-3566 | 15076 ( COVER, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-105-3566
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-105-3566
Related Products | NSN 5935-01-105-3566
Technical Data | NSN 5935-01-105-3566
| Characteristic | Specifications |
|---|---|

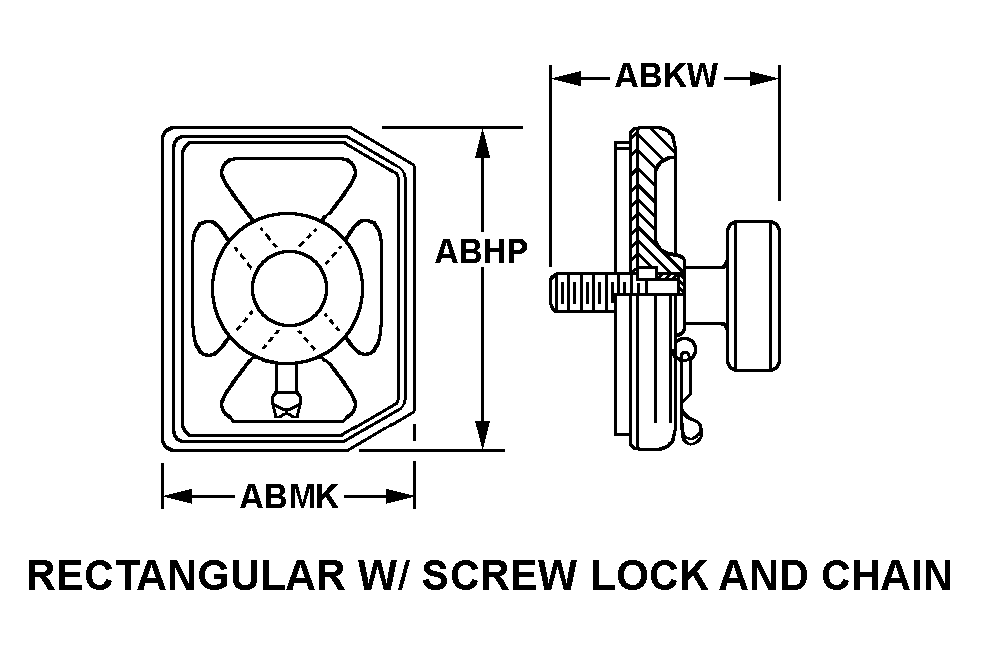

| STYLE DESIGNATOR | 16A RECTANGULAR W/SCREW LOCK AND CHAIN |
| OVERALL LENGTH | 2.703 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.219 INCHES NOMINAL |
| OVERALL WIDTH | 1.656 INCHES MAXIMUM |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| FURNISHED ITEMS | LINK CHAIN |
| ATTACHMENT FEATURE LENGTH | 6.000 INCHES NOMINAL |
| EYE INSIDE DIAMETER | 0.190 INCHES NOMINAL |
| SEAL TYPE | GASKET |
| SEAL MATERIAL | RUBBER, NEOPRENE LATEX OR RUBBER, SILICONE BASE |
| SIZE DESIGNATION | 80 |
Restrictions/Controls & Freight Information | NSN 5935-01-105-3566
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
