NSN 5935-01-098-9998 MS3116E2461P, MS3116E24-61P, MS3116F2461P
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-098-9998 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3116E2461P, MS3116E24-61P, MS3116F2461P, MS3116F24-61P, MS3116F2461S, MS3116F24-61S, MS3126F2461P, MS3126F24-61P, MS3476L2461P, MS3476L24-61P, MS3476L2461PN, MS3476L24-61PN, MS3476W2461P, MS3476W24-61P, M83723/14R2461N, M83723/14W2461, M8372314R2461N, M8372314W2461, MB16A2461PN, MB16A-2461PN, MB16W2461PN, ASC1240262, MILC26482, MIL-C-26482, PT06SP2461P, PT06SP-24-61P, 0N06410424, 0N064104-24, 1060706437, 10607064-37, 1060803217, 10608032-17, 808011-130, 80801125, 808011-25, 5935-01-098-9998, 01-098-9998, 5935010989998, 010989998, 808011130
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 AUG 1980 | 01-098-9998 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-098-9998
Demand History | NSN 5935-01-098-9998
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-098-9998 | 2021-02-34 | 2033 | DIBBS |
| 5935-01-098-9998 | 2016-04-108 | 515 | DIBBS |
| MS3476W2461P | 2013-09-253 | 6 | United States |
| MS3476W2461P | 2013-01-15 | 1 | us |
| MS3476W24-61P | 2012-09-263 | 10 | |
| MS3476W2461P | 2011-05-132 | 20 | SG |
| MILC26482 | 2011-01-27 | 4 | Portugal |
| MS3476L2461P | 2010-11-331 | 1 | US |
| 5935-01-098-9998 | 2010-02-40 | 44 | DIBBS |
| 5935-01-098-9998 | 2009-12-350 | 35 | DIBBS |
| MS3476W2461P | 2009-11-327 | 1 | United States |
| MS3476W2461P | 2009-11-327 | 1 | United States |
| 5935-01-098-9998 | 2008-02-59 | 10 | US |
| 5935-01-098-9998 | 2007-07-198 | 2099 | DIBBS |
| 5935-01-098-9998 | 2007-06-162 | 1310 | DIBBS |
| 5935-01-098-9998 | 2007-05-138 | 261 | DIBBS |
Cross Reference | NSN 5935-01-098-9998
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0N064104-24 | 98230 | NATIONAL SECURITY AGENCY |
| 10607064-37 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 10608032-17 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 5171-10 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 5171-10 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 808011-130 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 808011-25 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| ASC1240262 | Z4779 | ASC PTY LTD |
| M83723/14R2461N | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83723/14W2461 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MB16A-2461PN | 14283 | AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS |
| MB16W2461PN | 14283 | AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS |
| MIL-C-26482 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3116E24-61P | 06840 | BENDIX CORP THE |
| MS3116E24-61P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3116F24-61P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3116F24-61S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3126F24-61P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3476L24-61P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3476L24-61PN | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3476W24-61P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PT06SE24-61P | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| PT06SP-24-61P | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-098-9998
Related Products | NSN 5935-01-098-9998
Technical Data | NSN 5935-01-098-9998
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 1.420 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.777 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| THREADED DEVICE TYPE | BACK SHELL |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.438 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.290 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY 6061 OR ALUMINUM ALLOY 380.0 OR ALUMINUM ALLOY A380.0 |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-591 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-591 FED SPEC 3RD MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

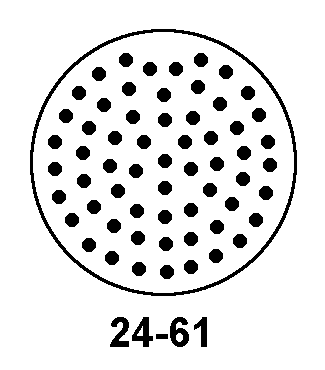

| CONTACT POSITION ARRANGEMENT STYLE | CQAF 24-61 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 61 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 1000.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND THERMAL SHOCK RESISTANT AND CORROSION RESISTANT |
| SPECIAL FEATURES | IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL; STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-174-3669,P/N M85049/52-1-24W FOR THE STRAIGHT STYLE,OR NSN 5935-01-193-8434,P/N M85049/51-1-24W FOR THE RIGHT ANGLE STYLE |
Restrictions/Controls & Freight Information | NSN 5935-01-098-9998
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
