NSN 5935-01-093-5820 MS3406DJ24D28P, AS50151 , MILC5015
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-093-5820 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3406DJ24D28P, AS50151 , MILC5015, MIL-C-5015, MILDTL5015, MIL-DTL-5015, 3014641939ITEM24, 301-4641939ITEM24, 5935-01-093-5820, 01-093-5820, 5935010935820, 010935820
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 APR 1980 | 01-093-5820 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

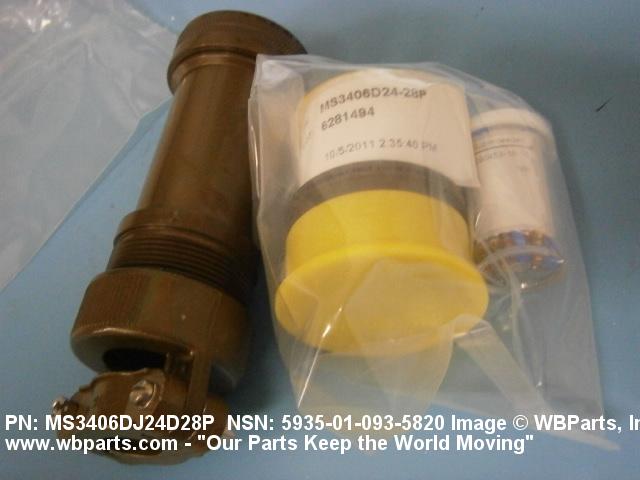

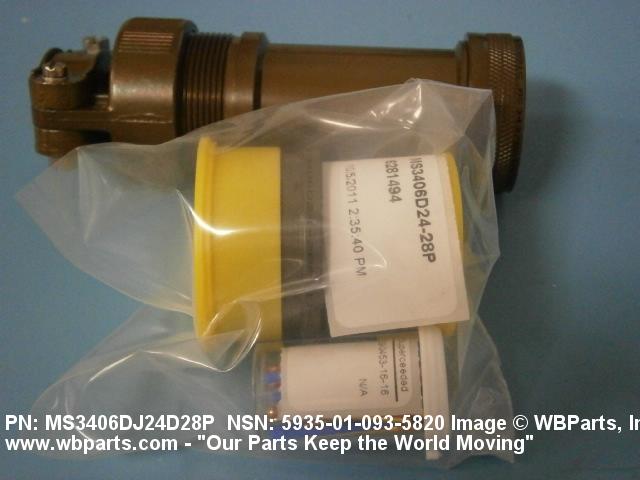

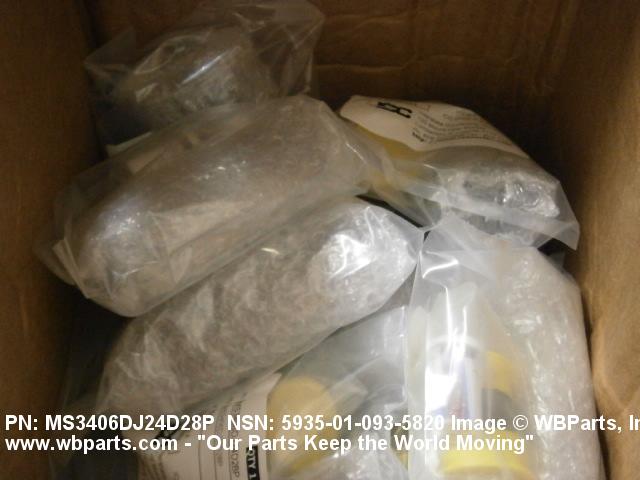

Drawings & Photos | NSN 5935-01-093-5820
Demand History | NSN 5935-01-093-5820
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-093-5820 | 2022-12-347 | 87 | DIBBS |
| 5935-01-093-5820 | 2022-11-317 | 87 | DIBBS |
| 5935-01-093-5820 | 2022-08-230 | 52 | DIBBS |
| 5935-01-093-5820 | 2022-07-185 | 14 | DIBBS |
| 5935-01-093-5820 | 2022-04-94 | 13 | DIBBS |
| 5935-01-093-5820 | 2021-06-152 | 9 | DIBBS |
| 5935-01-093-5820 | 2021-05-140 | 9 | DIBBS |
| 5935-01-093-5820 | 2021-05-137 | 13 | DIBBS |
| 5935-01-093-5820 | 2019-07-190 | 6 | DIBBS |
| 5935-01-093-5820 | 2012-09-254 | 46 | DIBBS |
| 5935-01-093-5820 | 2011-11-308 | 10 | United States |
| MS3406DJ24D28P | 2011-07-194 | 1 | us |
| 5935-01-093-5820 | 2008-04-119 | 63 | DIBBS |
| 5935-01-093-5820 | 2008-02-42 | 35 | DIBBS |
| 5935-01-093-5820 | 2007-03-71 | 45 | DIBBS |
| 5935-01-093-5820 | 2006-06-170 | 12 | DIBBS |
Cross Reference | NSN 5935-01-093-5820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 301-4641939ITEM24 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| AS50151 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-C-5015 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-5015 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3406DJ24D28P | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS3406DJ24D28P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-093-5820
Related Products | NSN 5935-01-093-5820
Technical Data | NSN 5935-01-093-5820
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF |
| BODY LENGTH | 6.062 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.719 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.500 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP W/TELESCOPING BUSHING |
| CABLE ENTRANCE DIAMETER | 0.625 INCHES MINIMUM AND 0.937 INCHES MAXIMUM |
| SHELL TYPE | SPLIT |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | BAAJ 24-28 SINGLE MATING END |
| INSERT MATERIAL | RUBBER SILICONE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 24 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 22.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 500.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 700.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF |
| TEST DATA DOCUMENT | 81349-MIL-C-5015 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS3406 GOVERNMENT STANDARD |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.024 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-5015 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD | MS3406DJ24D28P |
Restrictions/Controls & Freight Information | NSN 5935-01-093-5820
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-093-5820
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
