NSN 5935-01-079-7323 MS20028T23B2SB, LJ7067T23B2SB, MILC27599
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-079-7323 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS20028T23B2SB, LJ7067T23B2SB, MILC27599, MIL-C-27599, 5935-01-079-7323, 01-079-7323, 5935010797323, 010797323
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 JUL 1979 | 01-079-7323 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-079-7323
Demand History | NSN 5935-01-079-7323
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-079-7323 | 2017-03-82 | 6 | DIBBS |
| 5935-01-079-7323 | 2016-12-341 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-079-7323
Technical Data | NSN 5935-01-079-7323
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 1.175 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.766 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| THREADED DEVICE TYPE | BACK SHELL |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.312 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.188 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 26.0 |
| MATING END QUANTITY | 1 |

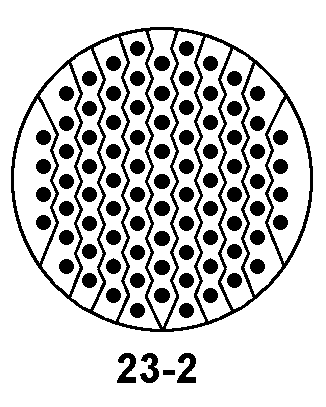

| CONTACT POSITION ARRANGEMENT STYLE | DQAH 23-2 SINGLE MATING END |
| INSERT MATERIAL | RESIN SYNTHETIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 85 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC 2ND TREATMENT RESPONSE AND QQ-S-365 FED SPEC 1ST TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND VIBRATION PROOF |
| TEST DATA DOCUMENT | 81349-MIL-C-27599 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS20028 GOVERNMENT STANDARD |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.085 GOLD GRAINS, TROY AND 0.085 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-27599 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20028T23B2SB |
Restrictions/Controls & Freight Information | NSN 5935-01-079-7323
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
