NSN 5935-01-079-2508 D34004366102, D34004366-102, 64813541461
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-079-2508 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: D34004366102, D34004366-102, 64813541461, 6481-354146-1, 2DE19S, 5935-01-079-2508, 01-079-2508, 5935010792508, 010792508
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUN 1979 | 01-079-2508 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-079-2508
Demand History | NSN 5935-01-079-2508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2DE19S | 2012-10-292 | 1 | Korea |
| 5935-01-079-2508 | 2012-05-146 | 2 | Indonesia |
Cross Reference | NSN 5935-01-079-2508
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-079-2508
Related Products | NSN 5935-01-079-2508
Technical Data | NSN 5935-01-079-2508
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 20A HOOD, TOP OPENING |
| OVERALL LENGTH | 1.198 INCHES MINIMUM AND 2.228 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.535 INCHES MINIMUM AND 0.555 INCHES MAXIMUM |
| OVERALL WIDTH | 0.479 INCHES MINIMUM AND 0.509 INCHES MAXIMUM |
| SHELL TYPE | HOOD, TOP OPENING |
| MATING END QUANTITY | 1 |

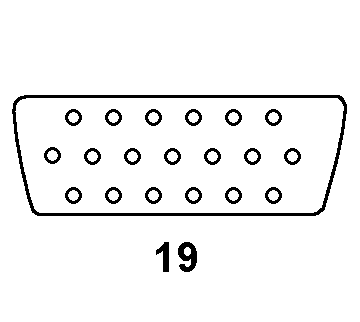

| CONTACT POSITION ARRANGEMENT STYLE | AVBC 19 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC POLYAMIDE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | L-P-395 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 19 SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,CLASS I,TYPE II MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | HUMIDITY RESISTANT AND VIBRATION RESISTANT AND SHOCK RESISTANT AND CORROSION RESISTANT |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS GOLD |
| MANUFACTURERS CODE | 09128 |
| MFR SOURCE CONTROLLING REFERENCE | D34004366-102 |
