NSN 5935-01-078-8722 4826209501, 4826209-501, 01-078-8722
Product Details | ELECTRICAL CONNECTOR BRACKET
5935-01-078-8722 A bracket designed to be attached to a supporting surface for the specific purpose of positioning and sustaining an electrical connector(s). Excludes BRACKET, ANGLE. See also PLATE, RETAINING, ELECTRICAL CONNECTOR.
Part Alternates: 4826209501, 4826209-501, 5935-01-078-8722, 01-078-8722, 5935010788722, 010788722
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 JUN 1979 | 01-078-8722 | 60134 ( BRACKET, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-078-8722
Cross Reference | NSN 5935-01-078-8722
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4826209-501 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-078-8722
Technical Data | NSN 5935-01-078-8722
| Characteristic | Specifications |
|---|---|

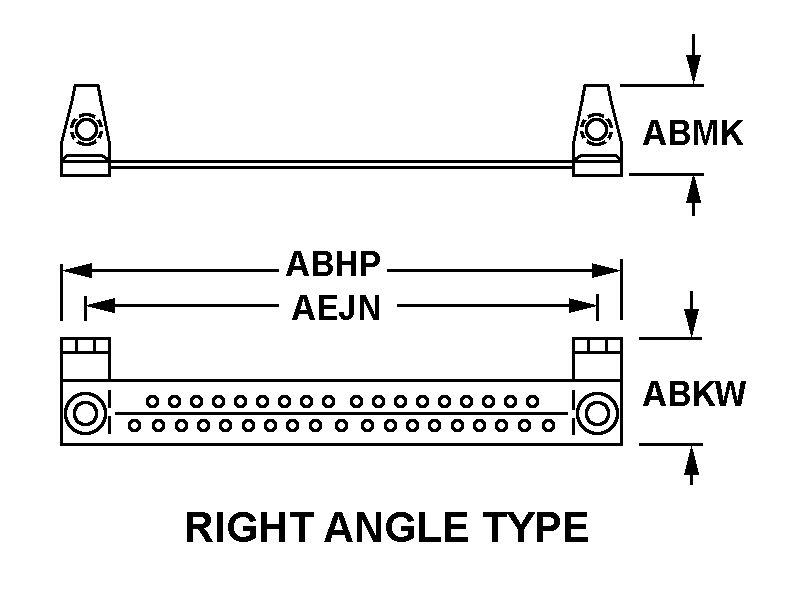

| STYLE DESIGNATOR | 1K RIGHT ANGLE TYPE |
| OVERALL LENGTH | 2.031 INCHES NOMINAL |
| OVERALL HEIGHT | 1.844 INCHES NOMINAL |
| OVERALL WIDTH | 1.844 INCHES NOMINAL |
| MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.152 INCHES MAXIMUM |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 4826209-501 |
Restrictions/Controls & Freight Information | NSN 5935-01-078-8722
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-078-8722
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
