NSN 5935-01-078-3993 MS3116E1415S, MS3116E14-15S, MS3116E14S15S
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-078-3993 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3116E1415S, MS3116E14-15S, MS3116E14S15S, MS3116E14S-15S, MS3116F1415S, MS3116F14-15S, MS3116P1415S, MS3116P14-15S, MS3126E14155, MS3126E14-155, MS3126E1415P, MS3126E14-15P, MS3126E1415S, MS3126E14-15S, MS3126F1415S, MS3126F14-15S, MS3126P1415S, MS3126P14-15S, MS3126W1415S, MS3126W14-15S, MS3176W1415S, MS3176W14-15S, MS3456W1415S, MS3456W14-15S, MS3476L1415P, MS3476L14-15P, MS3476L1415S, MS3476L14-15S, MS3476L1415SN, MS3476L14-15SN, MS3476W1415S, MS3476W14-15S, M83723/13R1415N, M8372313F1415N, M83723-13F1415N, M8372313R1415N, M8372314R1415N, M83723-14R1415N, MB16A1415SN, MB16A-1415SN, MILC26482, MIL-C-26482, MILC8372313, MILC83723-13, 4169981536, 416998-1536, 5935-01-078-3993, 01-078-3993, 5935010783993, 010783993
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 JUN 1979 | 01-078-3993 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-078-3993
Demand History | NSN 5935-01-078-3993
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-078-3993 | 2023-05-124 | 397 | DIBBS |
| MS3476W1415S | 2021-09-264 | 50 | United States |
| MS3476W1415S | 2021-06-159 | 1 | Malaysia |
| MS3126E1415S | 2018-03-73 | 2 | Sri Lanka |
| MS3126E14-15S | 2016-08-216 | 2 | BE |
| 5935-01-078-3993 | 2015-12-353 | 1 | US |
| 5935-01-078-3993 | 2015-06-175 | 1 | United States |
| MS3116F1415S | 2014-03-65 | 2 | South Africa |
| 5935-01-078-3993 | 2013-10-297 | 1 | MANUAL |
| MS3116E14-15S | 2013-10-297 | 1 | AR |
| MILC26482 | 2011-01-27 | 4 | Portugal |
| 5935-01-078-3993 | 2010-10-277 | 531 | DIBBS |
| 5935-01-078-3993 | 2010-07-193 | 373 | DIBBS |
| 5935-01-078-3993 | 2007-11-334 | 425 | DIBBS |
| 5935-01-078-3993 | 2007-08-239 | 250 | DIBBS |
| MS3476L1415P | 2007-06-164 | 3 | Brazil |
Cross Reference | NSN 5935-01-078-3993
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 416998-1536 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| M83723-13F1415N | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83723-14R1415N | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83723/13R1415N | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MB16A-1415SN | 14283 | AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS |
| MIL-C-26482 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC83723-13 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3116E14-15S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3116E14S-15S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3116F14-15S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3116P14-15S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3126E14-155 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3126E14-15P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3126E14-15S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3126F14-15S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3126P14-15S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3126W14-15S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3176W14-15S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3456W14-15S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3476L14-15P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3476L14-15S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3476L14-15SN | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3476L14-15SN | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3476W14-15S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-078-3993
Related Products | NSN 5935-01-078-3993
Technical Data | NSN 5935-01-078-3993
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 1.420 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.183 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| THREADED DEVICE TYPE | BACK SHELL |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY 6061 |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367,6061-T6 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

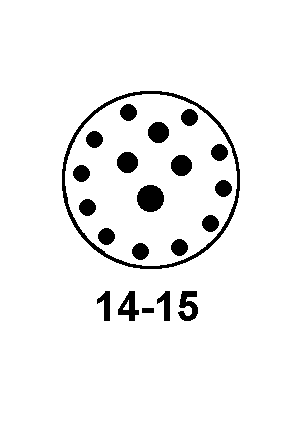

| CONTACT POSITION ARRANGEMENT STYLE | ARAB 14-15 SINGLE MATING END |
