NSN 5935-01-077-5856 MS3106E106S, MS3106E-10-6S, MS3116A106S

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-077-5856 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS3106E106S, MS3106E-10-6S, MS3116A106S, MS3116A10-6S, MS3116F1065, MS3116F10-65, MS3116F106SSR, MS3116F-10-6S-SR, MS3126F1065, MS3126F10-65, MS3126F106S, MS3126F-10-6S, MS3476A106S, MS3476A10-6S, MS3476L1006S, MS3476L10-06S, MS3476L106S, MS3476L10-6S, MS3476L106SN, MS3476L10-6SN, MS3476W1006S, MS3476W106N, MS3476W10-6N, MS3476W106S, MS3476W10-6S, M24308/24-39 , M243082439, M83723/13R10067, M83723/13R1006N, M83723/13W1006, M8372313R10067, M8372313R1006N, M8372313W1006, MB16A1006SN, MB16A-1006SN, MB16W1006S, MB16W106SN, ASC1239338, DB25PA, DB-25PA , MIL-C-24308/24 , MILC2430824, MILC26482, MIL-C-26482, MILDTL26482, MIL-DTL-26482, PT06A106SSR, VA070614, VA07-0614, VA07-0614/001, VA070614001, 117DBE25PA, 117-DBE-25PA , 195228, 5301512, 530151-2, 7770587001, 7770587-001 , 80801134, 808011-34, 5935-01-077-5856, 01-077-5856, 5935010775856, 010775856

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	26 MAY 1979	01-077-5856	01938 ( CONNECTOR, PLUG, ELECTRICAL )

Drawings & Photos | NSN 5935-01-077-5856

Part Number	Request Date	QTY	Origin
MS3126F106S	2024-12-338	3	US
5935-01-077-5856	2024-06-176	95	DIBBS
5935-01-077-5856	2024-06-155	786	DIBBS
5935-01-077-5856	2024-03-71	661	DIBBS
MS3476W106S	2024-01-24	1	us
5935-01-077-5856	2023-10-292	7	US
5935-01-077-5856	2022-08-227	2	United States
MS3126F106S	2021-08-228	1	JP
MS3476W106S	2020-12-352	8	US
MS3476L106S	2020-08-230	5	MY
MS3476W106S	2020-07-199	10	BR
MS3126F106S	2019-02-56	6	United States
MS3476W106S	2018-01-02	39	US
5935-01-077-5856	2017-12-341	942	DIBBS
5935-01-077-5856	2017-11-309	2490	DIBBS
5935-01-077-5856	2017-09-253	1903	DIBBS
MS3476L106S	2017-03-79	10	United States
MS3126F106S	2016-09-256	1	US
MS3106E106S	2016-08-222	2	Serbia
5935-01-077-5856	2016-03-68	2	Switzerland
MS3126F106S	2015-10-302	10	us
MS3476L106S	2014-08-233	1	IN
MS3476L10-6S	2014-06-156	1	MX
MS3476W10-6S	2013-04-113	1	United States
5935-01-077-5856	2012-07-184	400	CN
MILDTL26482	2012-06-179	20	US
5935-01-077-5856	2012-04-114	1	MANUAL
MS3476W106S	2012-03-66	76	United States
5935-01-077-5856	2012-01-28	400	China
MS3126F106S	2011-12-338	1	US
5935-01-077-5856	2011-05-144	12	EC
MILC26482	2011-01-27	4	Portugal
MILDTL26482	2011-01-27	4	Portugal
5935-01-077-5856	2011-01-19	1479	DIBBS
5935-01-077-5856	2010-12-335	745	DIBBS
5935-01-077-5856	2010-10-298	1835	DIBBS
5935-01-077-5856	2010-10-294	2	GU
5935-01-077-5856	2010-09-264	754	DIBBS
MILC2430824	2010-07-183	10	US
5935-01-077-5856	2009-11-311	300	Turkey
MS3476L106S	2009-09-273	2	United States
5935-01-077-5856	2006-06-179	90	Turkey

Cross Reference | NSN 5935-01-077-5856

Part Number	Cage Code	Manufacturer
195228	10110	SCIENTIFIC ATLANTA INC
19KP987	45152	OSHKOSH CORPORATION
19KP987	75Q65	OSHKOSH DEFENSE, LLC
466-10-6SN059	17419	DEUTSCH CO THE
530151-2	00779	TYCO ELECTRONICS CORPORATION
808011-34	96214	RAYTHEON COMPANY DBA RAYTHEON
ASC1239338	Z4779	ASC PTY LTD
H7029D466-10-6S059	K1316	DEUTSCH UK MILITARY PRODUCTS DIVISION
M83723/13R10067	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83723/13R1006N	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83723/13R1006N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
M83723/13W1006	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MB16A-1006SN	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MB16W1006S	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MB16W106SN	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MIL-C-26482	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-26482	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3106E-10-6S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3116A10-6S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3116F-10-6S-SR	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3116F10-65	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3126F-10-6S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3126F10-65	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476A10-6S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476L10-06S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476L10-6SN	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476W10-6N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476W10-6S	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MS3476W10-6S	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
MS3476W10-6S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476W1006S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PT06A-10-6S(SR)	05063	AVNET INC HAMILTON/AVNET ELECTRONICS DIV
PT06A-10-6S(SR)	20441	POWELL ELECTRONICS INC.
PT06A10-6S(SR)	2W733	BELDEN WIRE AND CABLE CO WIRE AND CABLE OFFICE
VA07-0614	K0668	SELEX ES LTD DBA SELEX S & A S
VA07-0614/001	K0668	SELEX ES LTD DBA SELEX S & A S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-077-5856

Compare

Related Products | NSN 5935-01-077-5856

5935-01-077-5857, 5935-01-077-5858, 5935-01-077-5859, 5935-01-077-5860, 5935-01-077-5861

Technical Data | NSN 5935-01-077-5856

Characteristic	Specifications
BODY STYLE	7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	1.420 INCHES MAXIMUM
OVERALL DIAMETER	0.926 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	BAYONET LATCH
THREADED DEVICE TYPE	BACK SHELL
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.625 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	24
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD LENGTH	0.290 INCHES
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY 6061
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-367,T6 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT	CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1

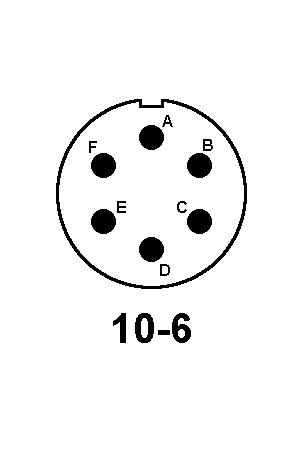

CONTACT POSITION ARRANGEMENT STYLE	AGAC 10-6 SINGLE MATING END
INCLUDED CONTACT QUANTITY	6 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	600.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-N-290,GRADE E FED SPEC 1ST TREATMENT RESPONSE AND MIL-G-45204,TY 1,CL 1,GRADE C MIL SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
SPECIAL FEATURES	IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL. STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-179-5430,P/N M85049/52-1-10W FOR THE STRAIGHT STYLE,OR NSN 5935-01-171-5758,P/N M85049/51-1-10W FOR THE RIGHT ANGLE STYLE
TEST DATA DOCUMENT	81349-MIL-C-26482 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS3476 GOVERNMENT STANDARD
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.030 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD
