NSN 5935-01-076-9450 MS3116E106P, MS3116E10-6P, MS3116F106P

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-076-9450 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS3116E106P, MS3116E10-6P, MS3116F106P, MS3116F10-6P, MS3116F10A6P, MS3116J106P, MS3116J10-6P, MS3126E106P, MS3126E10-6P, MS3476L1006PN, MS3476L106P, MS3476L10-6P, MS3476L106PN, MS3476L10-6PN, MS3476W106P, MS3476W10-6P, M83723/14R1006N, M83723/14W10-6, M8372314R1006N, M8372314W106, MB16A1006, MB16A-1006, MB16A1006P, MB16A-1006P, MB16A1006PN, MB16A-1006PN, MB16W106PN, SLPT06F106P, SLPT06F10-6P , SMC913212, SM-C-913212, MILC26482, MIL-C-26482, MILDTL26482, MIL-DTL-26482, KPTM06E106P, KPTM06E10-6P, KPTM06F106P, KPTM06F10-6P , PT06E106P314, PT06E10-6P314, PT06SP106P, PT06SP-10-6P, 575R608H04, 810BA0938, 5935-01-076-9450, 01-076-9450, 5935010769450, 010769450

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	16 MAY 1979	01-076-9450	01938 ( CONNECTOR, PLUG, ELECTRICAL )

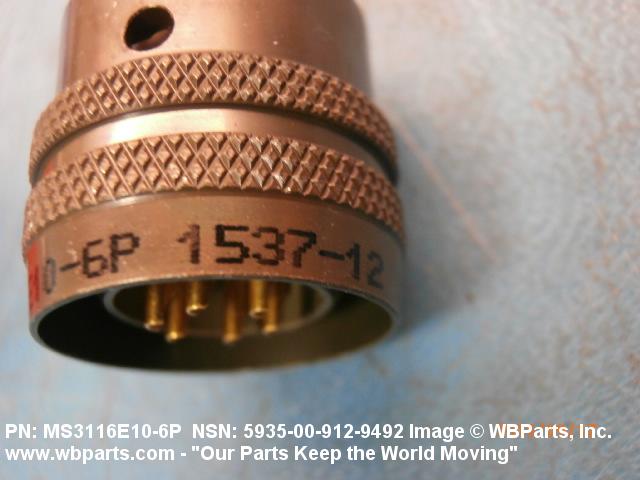

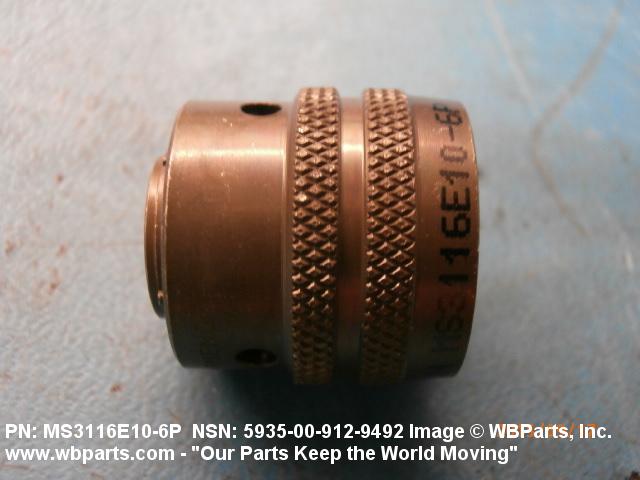

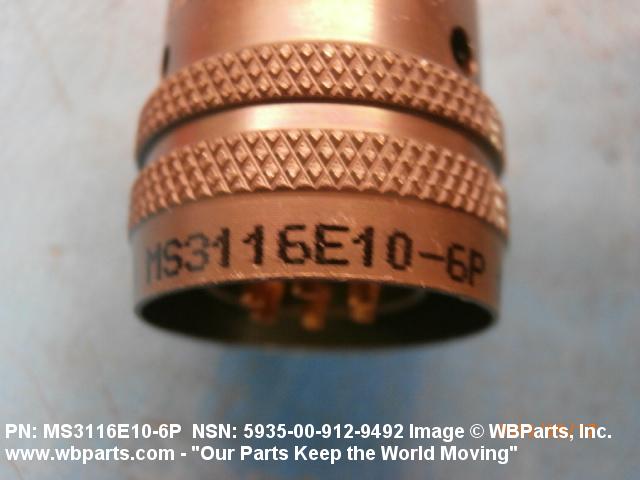

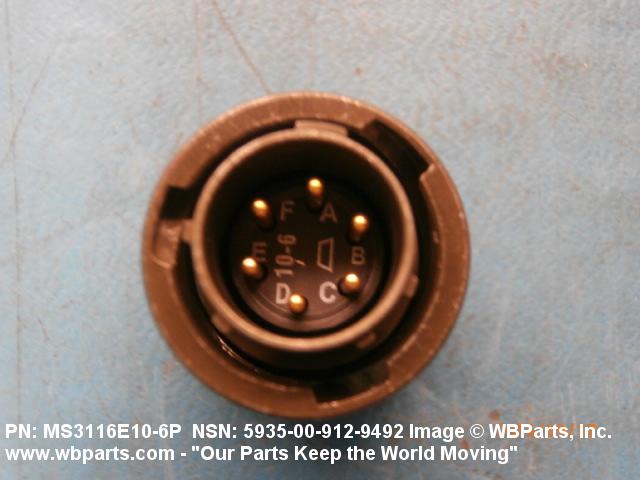

Drawings & Photos | NSN 5935-01-076-9450

Part Number	Request Date	QTY	Origin
5935-01-076-9450	2024-10-296	4	us
MS3476W106P	2024-09-262	2	United States
5935-01-076-9450	2024-09-254	1070	DIBBS
5935-01-076-9450	2024-08-239	1070	DIBBS
MS3476W106P	2024-07-184	9	Japan
MS3476W106P	2024-03-87	4	us
5935-01-076-9450	2023-09-263	83	DIBBS
5935-01-076-9450	2023-09-248	1086	DIBBS
5935-01-076-9450	2023-08-232	1086	DIBBS
5935-01-076-9450	2023-01-15	240	TR
5935-01-076-9450	2023-01-09	200	TR
MS3116F106P	2022-12-350	2	Taiwan
MS3476W106P	2022-10-301	4	United States
5935-01-076-9450	2022-08-236	1995	DIBBS
5935-01-076-9450	2022-08-221	1995	DIBBS
5935-01-076-9450	2021-08-222	2032	DIBBS
5935-01-076-9450	2021-07-189	4	Australia
5935-01-076-9450	2020-08-236	276	DIBBS
5935-01-076-9450	2020-08-215	895	DIBBS
5935-01-076-9450	2019-11-318	1	Taiwan
5935-01-076-9450	2019-04-112	2	US
5935-01-076-9450	2019-02-45	1	US
5935-01-076-9450	2019-02-42	1	US
MS3126E106P	2017-10-283	1	United States
MS3126E106P	2016-08-223	2	Singapore
MS3476W106P	2016-07-190	1	us
MS3126E106P	2015-11-313	4	IN
MS3476W106P	2013-12-345	8	United States
MS3476L106P	2013-08-225	20	United States
MS3476L106P	2012-11-306	3	US
MILDTL26482	2012-06-179	20	US
5935-01-076-9450	2012-06-171	1	CO
MS3116F10-6P	2012-04-118	120	PK
MS3116F10-6P	2012-04-115	120	PK
5935-01-076-9450	2012-02-48	200	CN
MILC26482	2011-01-27	4	Portugal
MILDTL26482	2011-01-27	4	Portugal
5935-01-076-9450	2010-10-291	1096	DIBBS
5935-01-076-9450	2010-09-257	1207	DIBBS
5935-01-076-9450	2008-05-137	500	US
5935-01-076-9450	2007-03-69	413	DIBBS

Cross Reference | NSN 5935-01-076-9450

Part Number	Cage Code	Manufacturer
575R608H04	79500	WESTINGHOUSE ELECTRIC CORP
575R608H04	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
810BA0938	A0199	OTO MELARA SPA
KPTM06E10-6P	71468	ITT CORPORATION DBA I T T CANNON
KPTM06F10-6P	71468	ITT CORPORATION DBA I T T CANNON
M83723/14R1006N	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M83723/14W10-6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MB16A-1006	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MB16A-1006P	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MB16A-1006PN	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MB16W106PN	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MIL-C-26482	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-26482	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3116E10-6P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3116F10-6P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3116F10A6P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3116J10-6P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3126E10-6P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476L10-6P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476L10-6PN	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476L1006PN	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476W10-6P	59976	AERO-ELECTRIC CONNECTOR, INC.
MS3476W10-6P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PT06E10-6P314	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
PT06SP-10-6P	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
SLPT06F10-6P	K1316	DEUTSCH UK MILITARY PRODUCTS DIVISION
SM-C-913212	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-076-9450

Compare

Related Products | NSN 5935-01-076-9450

5935-01-076-9451, 5935-01-076-9452, 5935-01-076-9453, 5935-01-076-9454, 5935-01-076-9455

Technical Data | NSN 5935-01-076-9450

Characteristic	Specifications
BODY STYLE	7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	1.420 INCHES MAXIMUM
OVERALL DIAMETER	0.926 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	BAYONET LATCH
THREADED DEVICE TYPE	BACK SHELL
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.625 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	24
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD LENGTH	0.290 INCHES
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY 6061
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-367,T6 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT	CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	AGAC 10-6 SINGLE MATING END
INCLUDED CONTACT QUANTITY	6 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	600.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-N-290,GRADE E FED SPEC 1ST TREATMENT RESPONSE AND MIL-G-45204,TY 1,CL 1,GRADE C MIL SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
SPECIAL FEATURES	IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL. STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-179-5430,P/N M85049/52-1-10W FOR THE STRAIGHT STYLE,OR NSN 5935-01-171-5758,P/N M85049/51-1-10W FOR THE RIGHT ANGLE STYLE; WEAPON SYSTEM ESSENTIAL
TEST DATA DOCUMENT	81349-MIL-C-26482 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS3476 GOVERNMENT STANDARD
CRITICALITY CODE JUSTIFICATION	FEAT
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.030 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND	CONTACT SURFACES GOLD
