Product Details | ELECTRICAL CONNECTOR INSERT

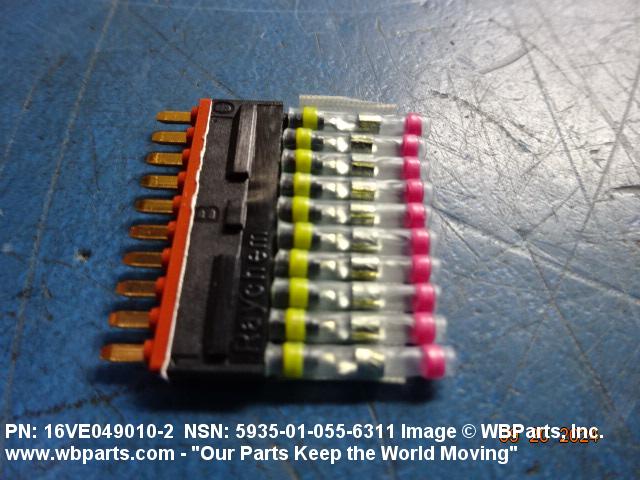

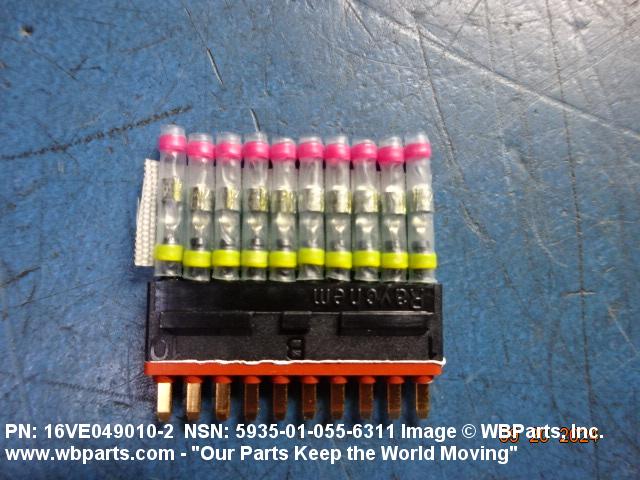

5935-01-055-6311 An insulating element with or without contact(s) designed to fit into an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; or CONNECTOR, RECEPTACLE, ELECTRICAL forming an integral liner or seat. Excludes INSULATOR (1), DISK; INSULATOR (1) PLATE; TERMINAL (1), FEEDTHRU and TERMINAL BOARD. See also CONNECTOR (as modified); CONNECTOR BODY (as modified); and INSERT MODULE, ELECTRICAL CONNECTOR.

Part Alternates: MTCB1XXXX105, MTCB1X-XXX-105, 16VE0490102, 16VE049010-2, 5935-01-055-6311, 01-055-6311, 5935010556311, 010556311
