Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-046-4622 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M39012/02-0131, M39012020031, M39012-02-0031, M39012020131, MILC39012, MILC390122, MILC39012-2, 5935-01-046-4622, 01-046-4622, 5935010464622, 010464622
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 AUG 1977 | 01-046-4622 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

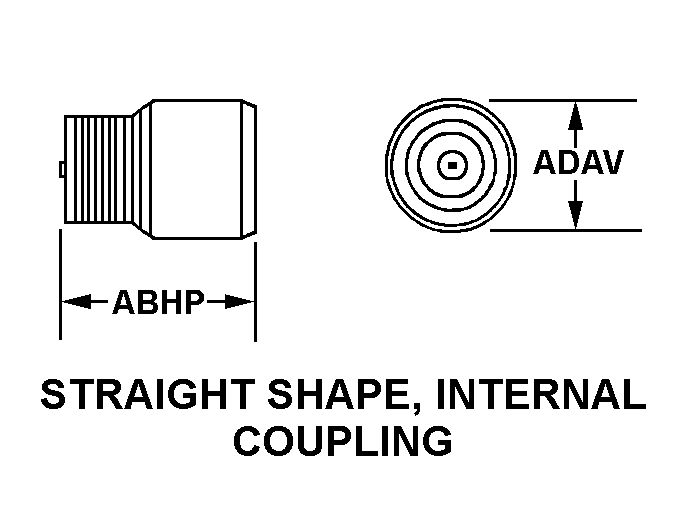

Drawings & Photos | NSN 5935-01-046-4622
Demand History | NSN 5935-01-046-4622
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-046-4622 | 2021-01-18 | 5 | TW |
| 5935-01-046-4622 | 2021-01-15 | 5 | TW |
| 20-16001-003(M1) | 2020-07-211 | 31 | DIBBS |
| KN-39-102 | 2020-07-211 | 31 | DIBBS |
| 20-16001-003(M1) | 2020-07-188 | 94 | DIBBS |
| KN-39-102 | 2020-07-188 | 94 | DIBBS |
| 20-16001-003(M1) | 2020-06-177 | 94 | DIBBS |
| KN-39-102 | 2020-06-177 | 94 | DIBBS |
| 20-16001-003(M1) | 2019-04-108 | 31 | DIBBS |
| KN-39-102 | 2019-04-108 | 31 | DIBBS |
| 20-16001-003(M1) | 2019-02-52 | 62 | DIBBS |
| KN-39-102 | 2019-02-52 | 62 | DIBBS |
| 5935-01-046-4622 | 2018-12-361 | 62 | DIBBS |
| 5935-01-046-4622 | 2018-11-315 | 31 | DIBBS |
| 5935-01-046-4622 | 2018-10-291 | 31 | DIBBS |
| 5935-01-046-4622 | 2018-09-249 | 31 | DIBBS |
| 5935-01-046-4622 | 2018-01-24 | 91 | DIBBS |
| 5935-01-046-4622 | 2017-09-260 | 32 | DIBBS |
| 5935-01-046-4622 | 2017-07-194 | 32 | DIBBS |
| 5935-01-046-4622 | 2016-11-308 | 16 | DIBBS |
| 5935-01-046-4622 | 2016-03-88 | 1 | DIBBS |
| 5935-01-046-4622 | 2016-03-75 | 1 | DIBBS |
| MILC39012 | 2015-06-172 | 20 | PK |
| 5935-01-046-4622 | 2015-03-62 | 43 | DIBBS |
| 5935-01-046-4622 | 2014-12-336 | 126 | DIBBS |
| 5935-01-046-4622 | 2014-11-330 | 20 | DIBBS |
| 5935-01-046-4622 | 2014-11-320 | 2 | DIBBS |
| 5935-01-046-4622 | 2014-09-247 | 18 | Taiwan |
| 5935-01-046-4622 | 2014-08-217 | 50 | DIBBS |
| 5935-01-046-4622 | 2014-06-171 | 6 | Taiwan |
| 5935-01-046-4622 | 2014-06-156 | 43 | DIBBS |
| 5935-01-046-4622 | 2014-05-129 | 80 | DIBBS |
| 5935-01-046-4622 | 2014-03-90 | 20 | DIBBS |
| 5935-01-046-4622 | 2014-01-06 | 3 | DIBBS |
| 5935-01-046-4622 | 2014-01-06 | 126 | DIBBS |
| 5935-01-046-4622 | 2013-10-275 | 1 | DIBBS |
| 5935-01-046-4622 | 2013-08-218 | 4 | DIBBS |
| 5935-01-046-4622 | 2012-09-251 | 4 | DIBBS |
| 5935-01-046-4622 | 2012-08-243 | 78 | DIBBS |
| 5935-01-046-4622 | 2011-05-131 | 139 | DIBBS |
| 5935-01-046-4622 | 2010-03-64 | 119 | DIBBS |
| 5935-01-046-4622 | 2009-06-167 | 17 | Taiwan |
| 5935-01-046-4622 | 2007-08-215 | 137 | DIBBS |
| 5935-01-046-4622 | 2007-06-153 | 6 | Taiwan |
| 5935-01-046-4622 | 2006-05-138 | 174 | DIBBS |
| 5935-01-046-4622 | 2005-12-346 | 163 | DIBBS |
Cross Reference | NSN 5935-01-046-4622
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M39012-02-0031 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39012/02-0131 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC39012 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC39012-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
