NSN 5935-01-046-3768 M24308, M24308/, M24308/22-2
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-046-3768 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: M24308, M24308/, M24308/22-2, M24308222, MILC2430822, MILC24308-22, 5935-01-046-3768, 01-046-3768, 5935010463768, 010463768
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 AUG 1977 | 01-046-3768 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-046-3768
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-046-3768
Related Products | NSN 5935-01-046-3768
Technical Data | NSN 5935-01-046-3768
| Characteristic | Specifications |
|---|---|

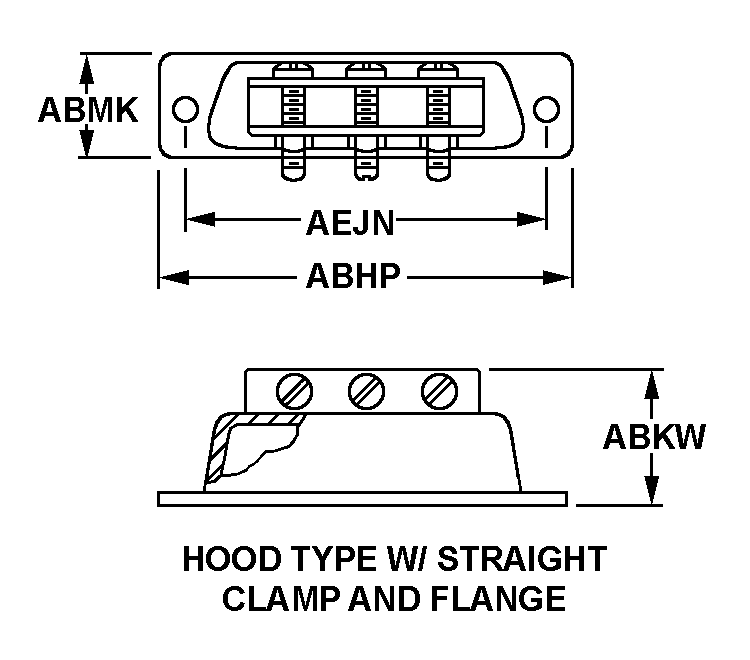

| STYLE DESIGNATOR | 27G HOOD TYPE W/STRAIGHT CLAMP AND FLANGE |
| OVERALL LENGTH | 1.516 INCHES MINIMUM AND 1.546 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.609 INCHES MINIMUM AND 0.679 INCHES MAXIMUM |
| OVERALL WIDTH | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.307 INCHES MINIMUM AND 1.317 INCHES MAXIMUM |
| MATERIAL | STEEL, LOW CARBON |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.115 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING LENGTH | 0.297 INCHES MINIMUM AND 0.327 INCHES MAXIMUM |
| CABLE OPENING WIDTH | 0.281 INCHES MINIMUM AND 0.311 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 81349-MILC24308 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC24308-22 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24308/22-2 |
