NSN 5935-01-046-3754 01-046-3754, 010463754
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-046-3754 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 5935-01-046-3754, 01-046-3754, 5935010463754, 010463754
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-046-3754 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-046-3754
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-046-3754
Technical Data | NSN 5935-01-046-3754
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 1.180 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.459 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF AND UNEF |
| NOMINAL THREAD SIZE | 1.312 INCHES AND 1.438 INCHES |
| THREAD CLASS | 2A AND 2B |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.290 INCHES AND 0.260 INCHES |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | NICKEL |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 18.0 AND 149.0 AND 192.0 AND 259.0 |
| MATING END QUANTITY | 1 |

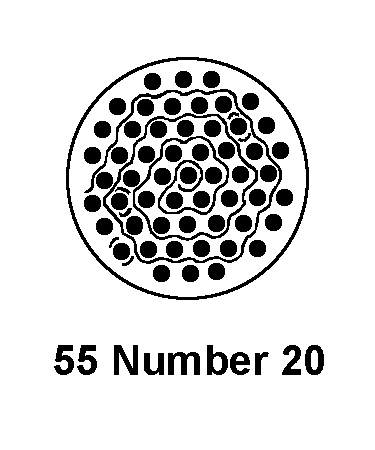

| CONTACT POSITION ARRANGEMENT STYLE | CJAP 55 NUMBER 20 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC EPOXY SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 55 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | HUMIDITY RESISTANT AND PRESSURE PROOF AND SALT WATER RESISTANT AND SHOCK PROOF AND VIBRATION RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-83723 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-83723/86 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.055 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC83723-86 |
