NSN 5935-00-988-8282 MC11E106SN1, MC11E10-6SN1, MC11E106SNI

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-988-8282 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MC11E106SN1, MC11E10-6SN1, MC11E106SNI, MC11E10-6SNI, AMC11E106SN1, AMC11E10-6SN1, 5M156E106SN1, 5M156E10-6SN1 , 5935-00-988-8282, 00-988-8282, 5935009888282, 009888282

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	02 NOV 1966	00-988-8282	01938 ( CONNECTOR, PLUG, ELECTRICAL )

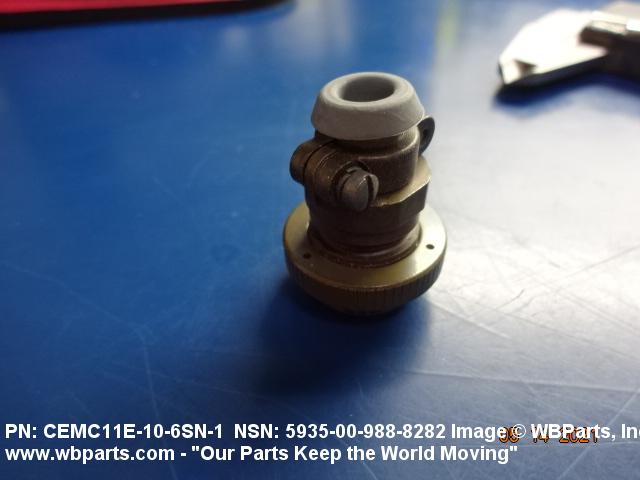

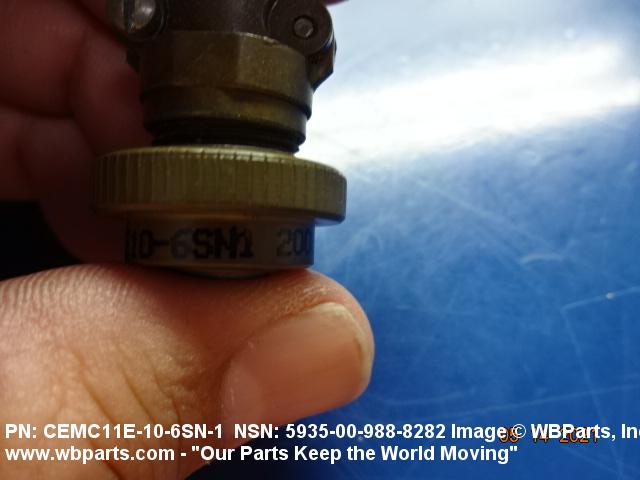

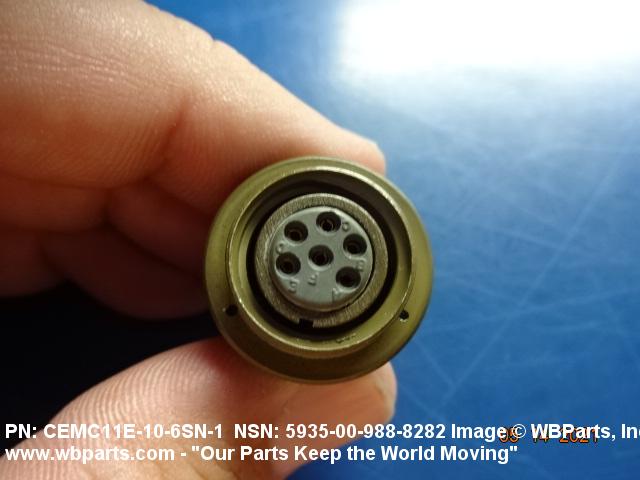

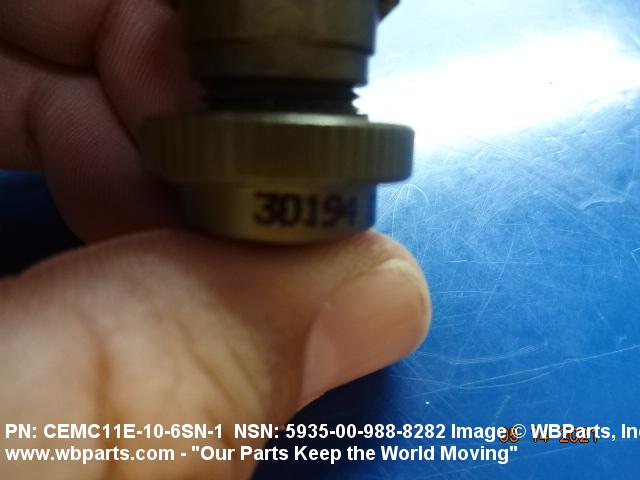

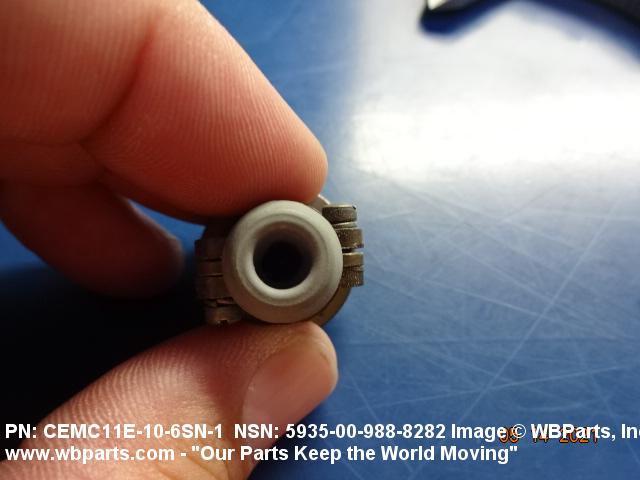

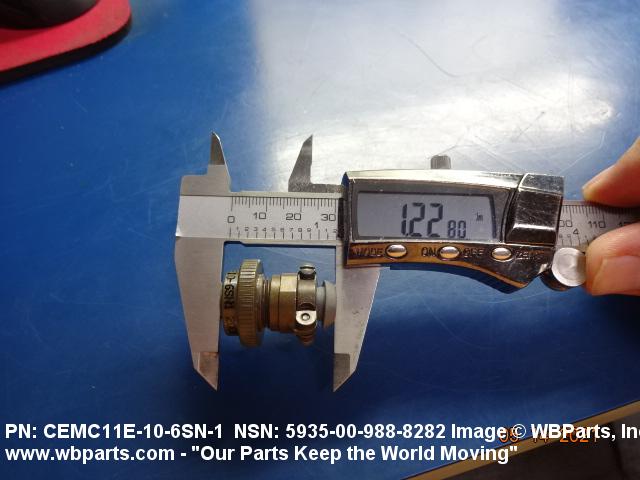

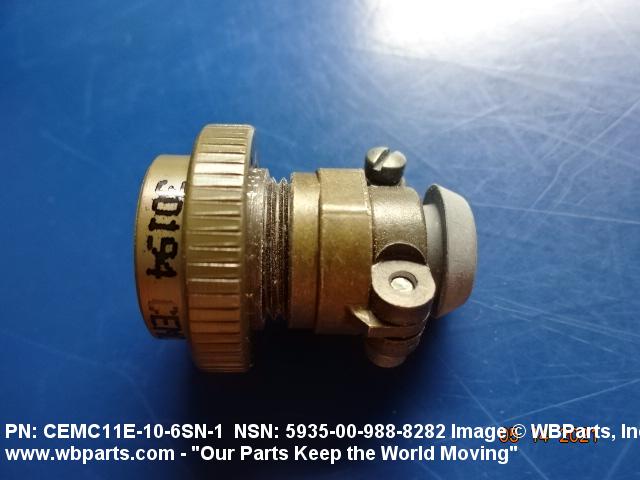

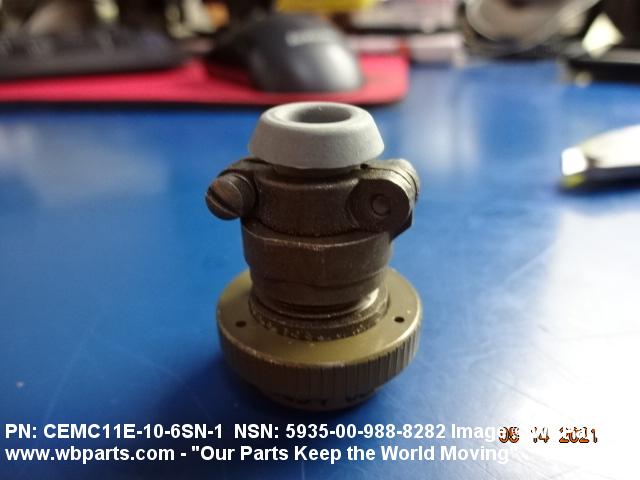

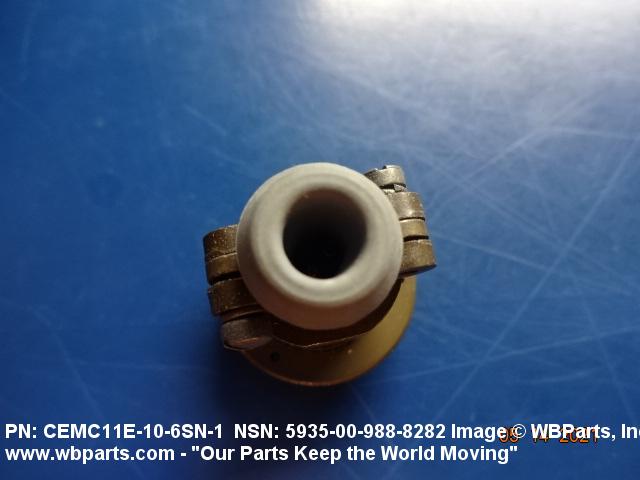

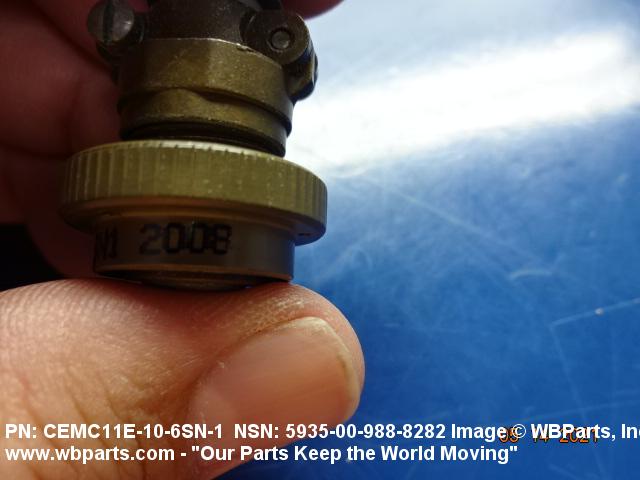

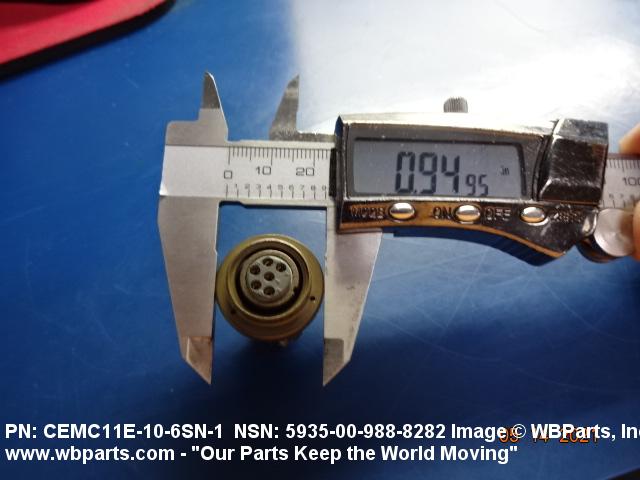

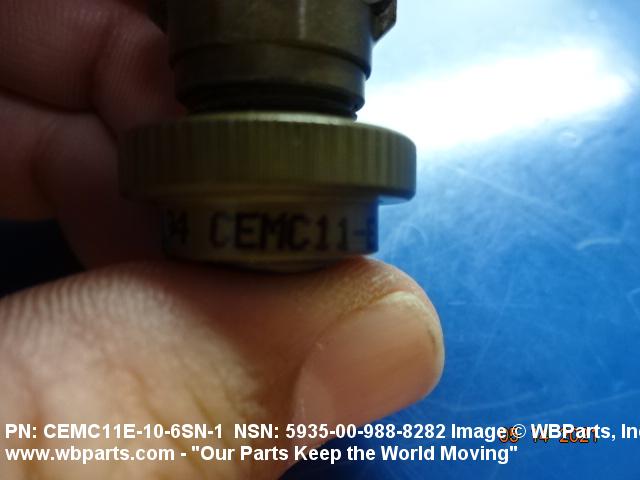

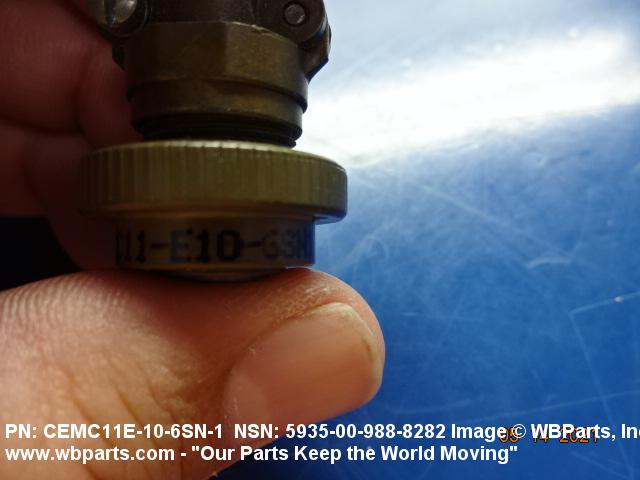

Drawings & Photos | NSN 5935-00-988-8282

Part Number	Request Date	QTY	Origin
5M156E10-6SN1	2024-07-191	42	DIBBS
MC11E10-6SN1	2024-07-191	42	DIBBS
5M156E10-6SN1	2024-06-179	42	DIBBS
MC11E10-6SN1	2024-06-179	42	DIBBS
5M156E10-6SN1	2024-02-42	41	DIBBS
MC11E10-6SN1	2024-02-42	41	DIBBS
5M156E10-6SN1	2024-01-02	45	DIBBS
MC11E10-6SN1	2024-01-02	45	DIBBS
5M156E10-6SN1	2023-11-334	19	DIBBS
MC11E10-6SN1	2023-11-334	19	DIBBS
5M156E10-6SN1	2023-10-298	37	DIBBS
MC11E10-6SN1	2023-10-298	37	DIBBS
5M156E10-6SN1	2023-03-75	16	DIBBS
MC11E10-6SN1	2023-03-75	16	DIBBS
5M156E10-6SN1	2022-12-354	37	DIBBS
MC11E10-6SN1	2022-12-354	37	DIBBS
5M156E10-6SN1	2022-05-145	37	DIBBS
MC11E10-6SN1	2022-05-145	37	DIBBS
5M156E10-6SN1	2022-03-83	21	DIBBS
MC11E10-6SN1	2022-03-83	21	DIBBS
5M156E10-6SN1	2022-03-62	16	DIBBS
MC11E10-6SN1	2022-03-62	16	DIBBS
5M156E10-6SN1	2022-01-03	15	DIBBS
MC11E10-6SN1	2022-01-03	15	DIBBS
5935-00-988-8282	2021-04-112	1	Canada
5M156E10-6SN1	2020-10-282	58	DIBBS
MC11E10-6SN1	2020-10-282	58	DIBBS
5M156E10-6SN1	2020-08-233	23	DIBBS
MC11E10-6SN1	2020-08-233	23	DIBBS
5M156E10-6SN1	2020-07-203	64	DIBBS
MC11E10-6SN1	2020-07-203	64	DIBBS
5M156E10-6SN1	2020-07-188	42	DIBBS
MC11E10-6SN1	2020-07-188	42	DIBBS
5M156E10-6SN1	2020-06-173	42	DIBBS
MC11E10-6SN1	2020-06-173	42	DIBBS
5M156E10-6SN1	2020-05-149	104	DIBBS
MC11E10-6SN1	2020-05-149	104	DIBBS
5935-00-988-8282	2018-11-333	105	DIBBS
5935-00-988-8282	2016-09-259	242	DIBBS
5935-00-988-8282	2016-02-33	10	DIBBS
5935-00-988-8282	2016-01-03	100	DIBBS
5935-00-988-8282	2015-12-356	11	DIBBS
5935-00-988-8282	2015-10-294	201	DIBBS
5935-00-988-8282	2015-05-147	34	DIBBS
5935-00-988-8282	2015-05-126	36	DIBBS
5935-00-988-8282	2015-04-110	26	DIBBS
5935-00-988-8282	2014-10-295	150	United States
5935-00-988-8282	2013-01-15	33	DIBBS
5935-00-988-8282	2012-12-363	0	DIBBS
5935-00-988-8282	2012-11-318	0	DIBBS
5935-00-988-8282	2012-06-178	0	DIBBS
5935-00-988-8282	2012-06-165	37	DIBBS
5935-00-988-8282	2012-02-33	41	DIBBS
5935-00-988-8282	2011-06-158	40	DIBBS
5935-00-988-8282	2009-04-98	51	DIBBS
5935-00-988-8282	2009-02-56	30	DIBBS
MC11E106SN1	2008-09-261	2	US
5935-00-988-8282	2008-05-127	96	DIBBS
5935-00-988-8282	2008-02-60	86	DIBBS
5935-00-988-8282	2008-02-52	14	DIBBS
5935-00-988-8282	2008-02-38	19	DIBBS
5935-00-988-8282	2006-05-150	29	DIBBS

Cross Reference | NSN 5935-00-988-8282

Part Number	Cage Code	Manufacturer
5M156E10-6SN1	76301	BOEING COMPANY, THE DBA BOEING
AMC11E10-6SN1	4AAF5	AMERICAN CONNECTOR LLC
MC11E10-6SN1	71468	ITT CORPORATION DBA I T T CANNON
MC11E10-6SN1	K0316	ITT INDUSTRIES LIMITED ITT CANNON UK
MC11E10-6SNI	71468	ITT CORPORATION DBA I T T CANNON

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-988-8282

Compare

Related Products | NSN 5935-00-988-8282

5935-00-988-8487, 5935-00-988-8488, 5935-00-988-8490, 5935-00-988-8551, 5935-00-988-8553

Technical Data | NSN 5935-00-988-8282

Characteristic	Specifications
BODY STYLE	11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF
BODY LENGTH	1.141 INCHES MINIMUM AND 1.171 INCHES MAXIMUM
OVERALL DIAMETER	0.766 INCHES MINIMUM AND 0.796 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UN
NOMINAL THREAD SIZE	0.625 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	16
THREAD DIRECTION	RIGHT-HAND
CONNECTOR CABLE STRAIN RELIEF METHOD	CABLE CLAMP
CABLE ENTRANCE DIAMETER	0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CADMIUM AND CHROMATE
POLARIZATION METHOD	KEY, MULTIPLE KEY GROOVE
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	AGAA 6 SINGLE MATING END
INSERT MATERIAL	PLASTIC SINGLE MATING END
INCLUDED CONTACT QUANTITY	6 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS	5.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
SPECIAL FEATURES	POLYCHLOROPRENE GROMMET
III PRECIOUS MATERIAL	GOLD AND SILVER
III PRECIOUS MATERIAL AND WEIGHT	0.006 GOLD GRAINS, TROY AND 0.006 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER
MANUFACTURERS CODE	71468
DESIGN CONTROL REFERENCE	MC11E10-6SN1

Restrictions/Controls & Freight Information | NSN 5935-00-988-8282

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	C	Item contains two or more precious metals
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	ZG	Germany ZH ZJ
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-988-8282

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
