NSN 5935-00-988-3360 MS3108R2819S, MS3108R28-19S, 00-988-3360
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-988-3360 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3108R2819S, MS3108R28-19S, 5935-00-988-3360, 00-988-3360, 5935009883360, 009883360
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-988-3360 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-988-3360
Cross Reference | NSN 5935-00-988-3360
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS3108R28-19S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-988-3360
Related Products | NSN 5935-00-988-3360
Technical Data | NSN 5935-00-988-3360
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 15A ANGLE SHAPE WITH CABLE/CLAMP |
| OVERALL DIAMETER | 1.969 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO CABLE END | 2.188 INCHES MAXIMUM |
| BODY ANGLE IN DEG | 90.0 |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 1.750 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.594 INCHES |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.922 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

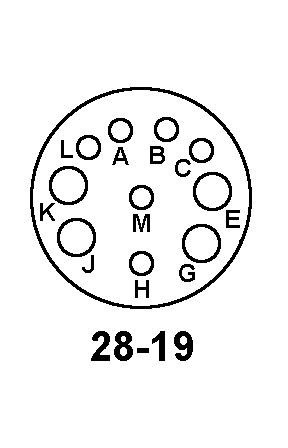

| CONTACT POSITION ARRANGEMENT STYLE | ALAN 28-19 SINGLE MATING END |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 22.0 SINGLE MATING END 1ST CONTACT GROUPING 22.0 SINGLE MATING END 2ND CONTACT GROUPING 22.0 SINGLE MATING END 3RD CONTACT GROUPING 41.0 SINGLE MATING END 4TH CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 1750.0 SINGLE MATING END 1ST CONTACT GROUPING 900.0 SINGLE MATING END 2ND CONTACT GROUPING 500.0 SINGLE MATING END 3RD CONTACT GROUPING 500.0 SINGLE MATING END 4TH CONTACT GROUPING |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 2450.0 SINGLE MATING END 1ST CONTACT GROUPING 1250.0 SINGLE MATING END 2ND CONTACT GROUPING 700.0 SINGLE MATING END 3RD CONTACT GROUPING 700.0 SINGLE MATING END 4TH CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT |
Restrictions/Controls & Freight Information | NSN 5935-00-988-3360
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-988-3360
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
