NSN 5935-00-987-5911 AT100, AV2502, AV2502REVA

Product Details | CONNECTOR ADAPTER

5935-00-987-5911 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.

Part Alternates: AT100, AV2502, AV2502REVA, 1270, 1687, 261, 2B1270, 7909400, 5935-00-987-5911, 00-987-5911, 5935009875911, 009875911

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-987-5911	15091 ( ADAPTER, CONNECTOR )

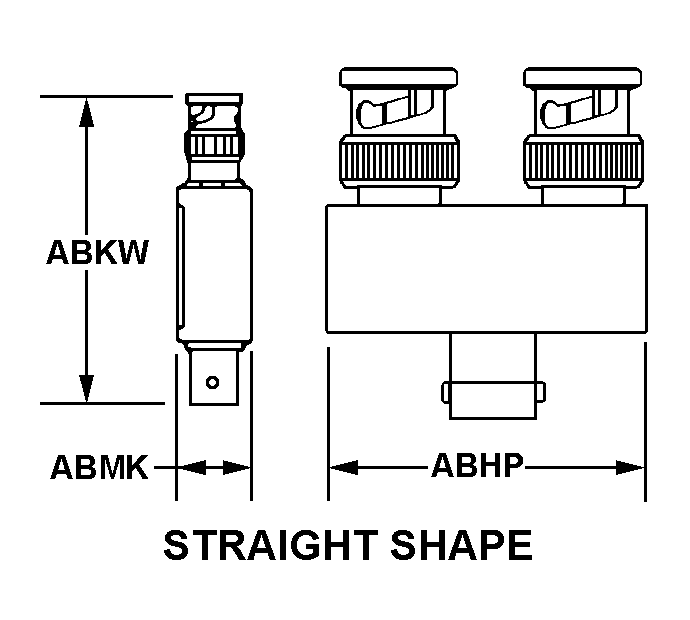

Drawings & Photos | NSN 5935-00-987-5911

Part Number	Request Date	QTY	Origin
1687	2024-08-228	8	United States
1687	2024-04-93	2	United States
1687	2024-03-88	2	United States
1687	2023-10-296	30	United States
1270	2023-02-47	222	DIBBS
261	2023-02-47	222	DIBBS
AT100	2023-02-47	222	DIBBS
AV2502	2023-02-47	222	DIBBS
AV2502REVA	2023-02-47	222	DIBBS
5935-00-987-5911	2013-07-212	558	DIBBS
5935-00-987-5911	2012-10-287	0	DIBBS
1270	2012-06-171	7
5935-00-987-5911	2007-06-169	308	DIBBS

Cross Reference | NSN 5935-00-987-5911

Part Number	Cage Code	Manufacturer
1270	05276	FLUKE ELECTRONICS CORP POMONA ELECTRONICS DIV
1270	4U744	FLUKE ELECTRONICS CORPORATION DBA FLUKE
1270	C0350	ZABEL TECHNIK GMBH
1687	83330	DIALIGHT CORPORATION
1687	91967	ABBATRON, LLC DIV ABBATRON LLC
261	76545	MUELLER ELECTRIC COMPANY, INC. DIV MUELLER ELECTRIC COMPANY
2B1270	05276	FLUKE ELECTRONICS CORP POMONA ELECTRONICS DIV
7909400	18876	U S ARMY AVIATION AND MISSILE COMMAND
7909400	19204	ARMY UNITED STATES DEPARTMENT OF THE
AT100	55314	DYNAMIC INDUSTRIES CORP
AV2502	58414	AVEX ELECTRONICS CORP.
AV2502REVA	58414	AVEX ELECTRONICS CORP.
