NSN 5935-00-949-4915 RPE033009, RPE033-009, 24155052
Product Details | ELECTRICAL CONNECTOR COVER
5935-00-949-4915 A device specifically designed to fully or partially inclose an electrical connector to protect its mating end from mechanical damage. Excludes CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and GUARD, ELECTRICAL CONNECTOR. See also COVER AND GUARD, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; and SHIELD, ELECTRICAL CONNECTOR.
Part Alternates: RPE033009, RPE033-009, 24155052, 2415505-2, 5935-00-949-4915, 00-949-4915, 5935009494915, 009494915
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 APR 1966 | 00-949-4915 | 15076 ( COVER, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-00-949-4915
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-949-4915
Related Products | NSN 5935-00-949-4915
Technical Data | NSN 5935-00-949-4915
| Characteristic | Specifications |
|---|---|

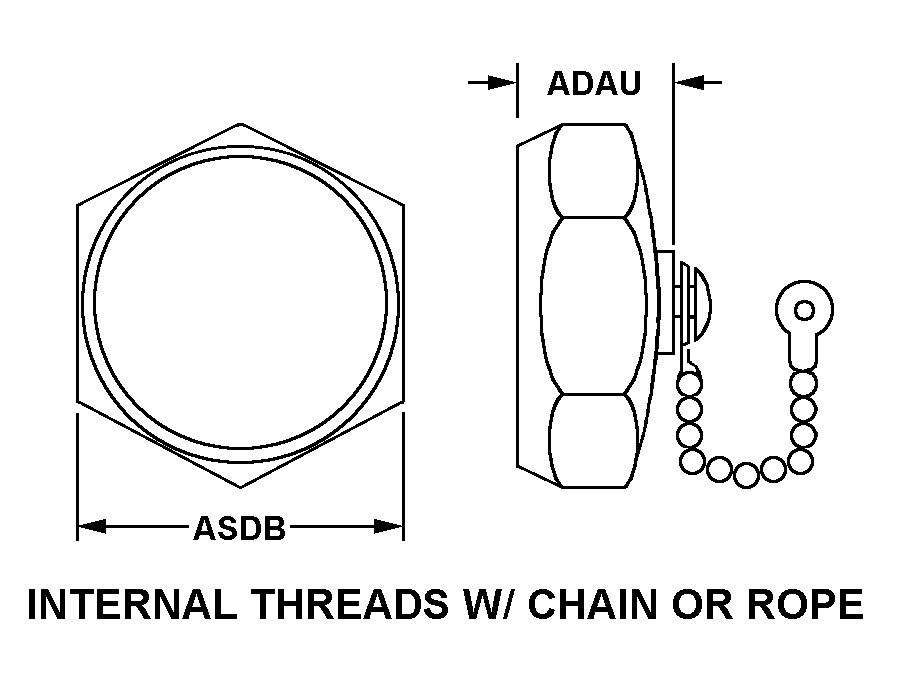

| STYLE DESIGNATOR | 19A INTERNAL THREADS W/CHAIN OR ROPE |
| BODY HEIGHT | ANY ACCEPTABLE |
| WIDTH ACROSS FLATS | 3.330 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 2.625 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 16 |
| THREAD DIRECTION | RIGHT-HAND |
| FURNISHED ITEMS | BEAD CHAIN |
| ATTACHMENT FEATURE LENGTH | 6.000 INCHES NOMINAL |
| EYE INSIDE DIAMETER | ANY ACCEPTABLE |
| SIZE DESIGNATION | 33 |
Restrictions/Controls & Freight Information | NSN 5935-00-949-4915
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-949-4915
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
