NSN 5935-00-949-3481 CE94072004, CE9407-2004, 21C1543011
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-00-949-3481 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: CE94072004, CE9407-2004, 21C1543011, 21C1543-011, 5935-00-949-3481, 00-949-3481, 5935009493481, 009493481
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JAN 1972 | 00-949-3481 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-949-3481
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-949-3481
Technical Data | NSN 5935-00-949-3481
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 18G STRAIGHT SHAPE |
| OVERALL LENGTH | 1.375 INCHES NOMINAL |
| OVERALL HEIGHT | 4.250 INCHES NOMINAL |
| OVERALL WIDTH | 3.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.996 INCHES MINIMUM AND 1.004 INCHES MAXIMUM |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 3.036 INCHES MINIMUM AND 3.044 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | SCREW |
| MATING END QUANTITY | 2 |

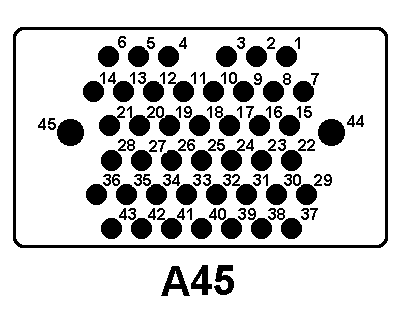

| CONTACT POSITION ARRANGEMENT STYLE | BYAC A45 SINGLE MATING END |
| INSERT MATERIAL | RUBBER NATURAL SINGLE MATING END |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 10.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | IRON 1ST MATING END 1ST CONTACT GROUPING CONSTANTAN 1ST MATING END 2ND CONTACT GROUPING COPPER ALLOY 1ST MATING END 3RD CONTACT GROUPING IRON 2ND MATING END 1ST CONTACT GROUPING CONSTANTAN 2ND MATING END 2ND CONTACT GROUPING COPPER ALLOY 2ND MATING END 3RD CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| THERMOCOUPLE CONTACT POSITION | 31 2ND MATING END 4TH CONTACT GROUPING 38 2ND MATING END 5TH CONTACT GROUPING |
| MANUFACTURERS CODE | 07482 |
| DESIGN CONTROL REFERENCE | 21C1543-011 |
