NSN 5935-00-938-1304 0N124696, 470, 00-938-1304
Product Details | TIP PLUG
5935-00-938-1304 A banana or pin type termination applied to the end of a single electrical conductor and designed to be inserted in a jack or binding post. May be insulated or uninsulated. Excludes TIP, TEST PROD and PLUG, TELEPHONE.
Part Alternates: 0N124696, 470, 5935-00-938-1304, 00-938-1304, 5935009381304, 009381304
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-938-1304 | 15046 ( PLUG, TIP ) |
Drawings & Photos | NSN 5935-00-938-1304
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-938-1304
Technical Data | NSN 5935-00-938-1304
| Characteristic | Specifications |
|---|---|
| FINGER TYPE | BANANA SPRING SINGLE FINGER |
| FINGER LENGTH | 0.390 INCHES MINIMUM AND 0.422 INCHES MAXIMUM SINGLE FINGER |
| FINGER DIAMETER | 0.164 INCHES MINIMUM AND 0.174 INCHES MAXIMUM SINGLE FINGER |

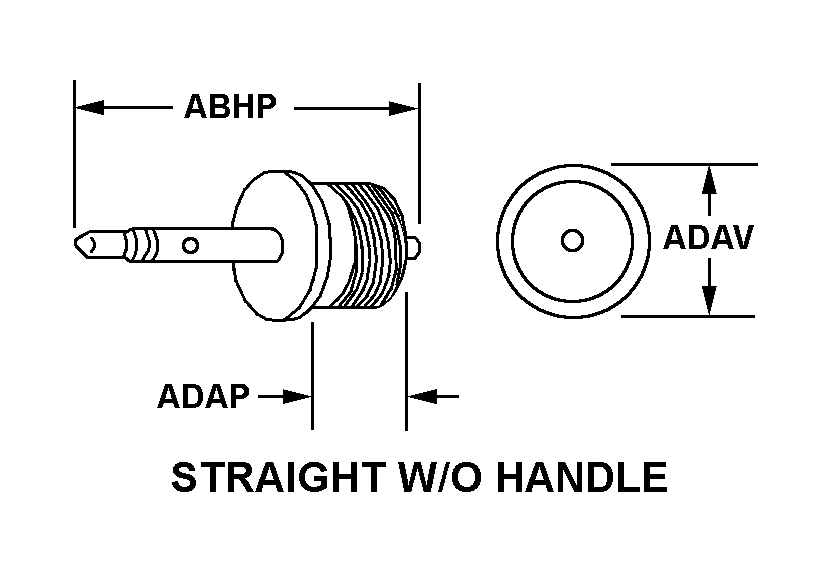

| BODY STYLE | 11 STRAIGHT W/O HANDLE |
| OVERALL LENGTH | 0.922 INCHES MINIMUM AND 0.954 INCHES MAXIMUM |
| MOUNTING BUSHING LENGTH | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.203 INCHES MINIMUM AND 0.235 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED STUD |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.375 INCHES |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| BUSHING THRU-HOLE ACCOMMODATION DIAMETER | 0.170 INCHES NOMINAL |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | BRASS BODY BERYLLIUM COPPER SPRING |
| SURFACE TREATMENT | NICKEL BODY NICKEL SPRING |
| IDENTIFICATION CODE COLOR | NATURAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | 10.0 |
