NSN 5935-00-892-9322 MS3116F845, MS3116F-8-45, MS3116F84S
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-892-9322 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3116F845, MS3116F-8-45, MS3116F84S, MS3116F8-4S, M24308/2-1, M2430821, MILC26482, MIL-C-26482, L01949, 1600602028, 16-00602-028, 255953, 3716532000, 371-6532-000, 4118700108, 4118700-108, 5NC5815, 5NC58-15 , 7152031, 715203-1, 7904366-02 , 8867K8 , 971.75.00.322, 9717500322, 5935-00-892-9322, 00-892-9322, 5935008929322, 790436602, 008929322
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-892-9322 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

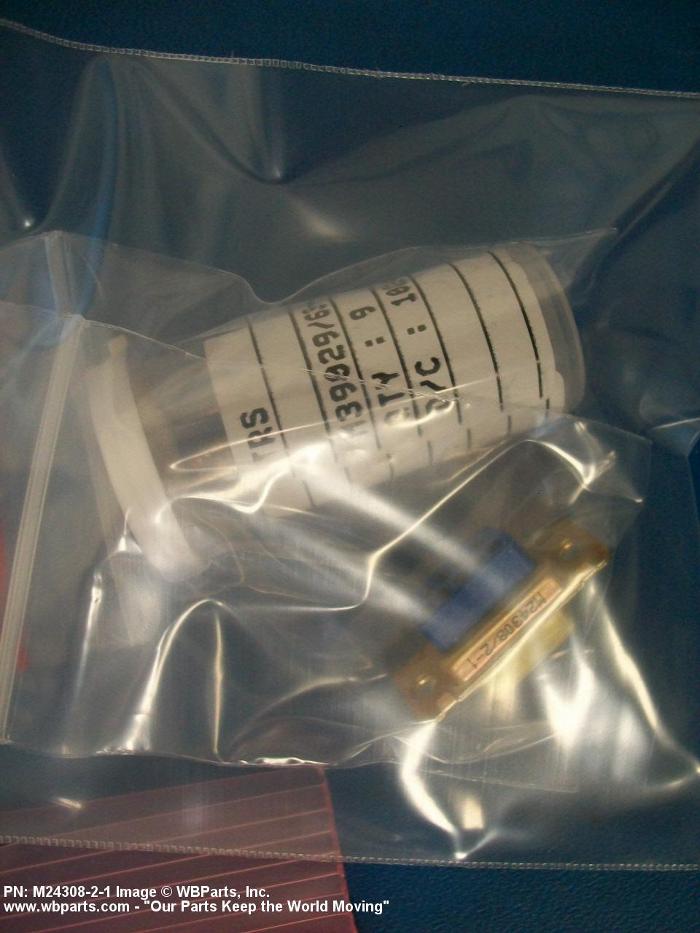

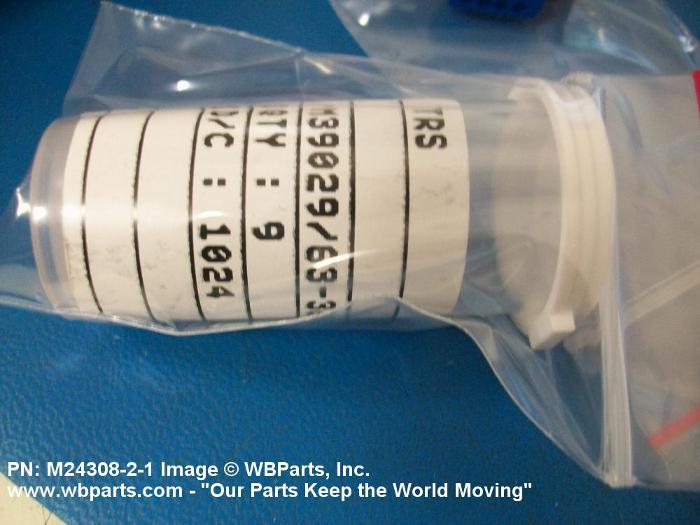

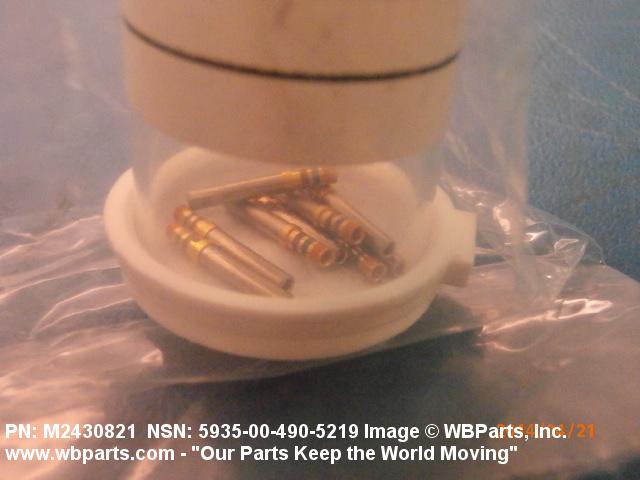

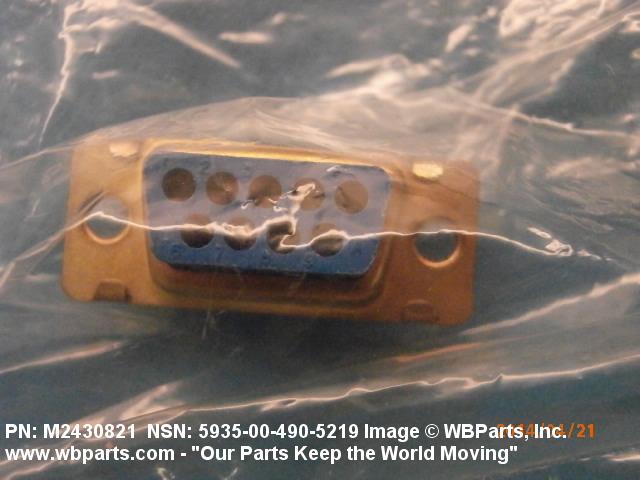

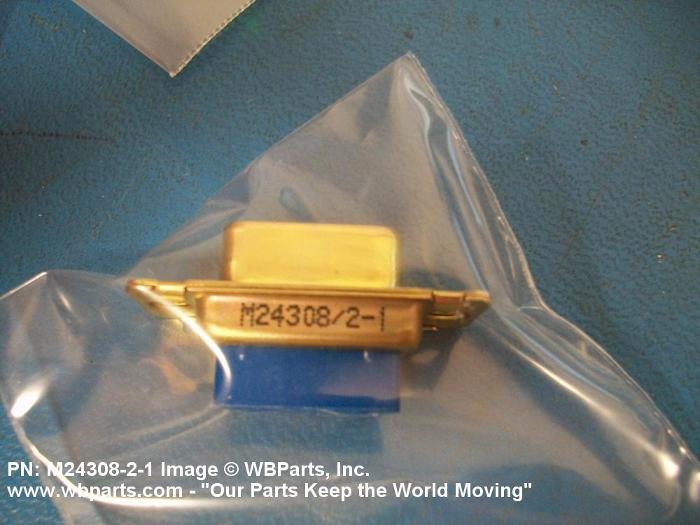

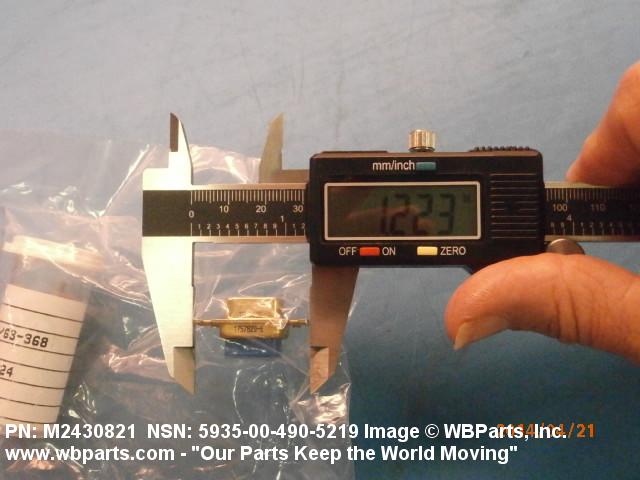

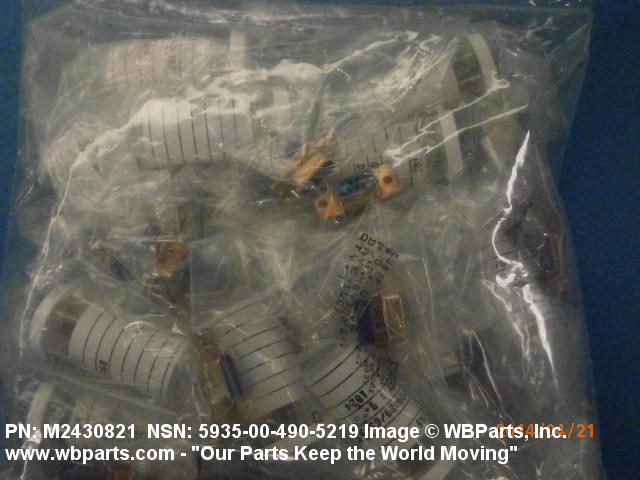

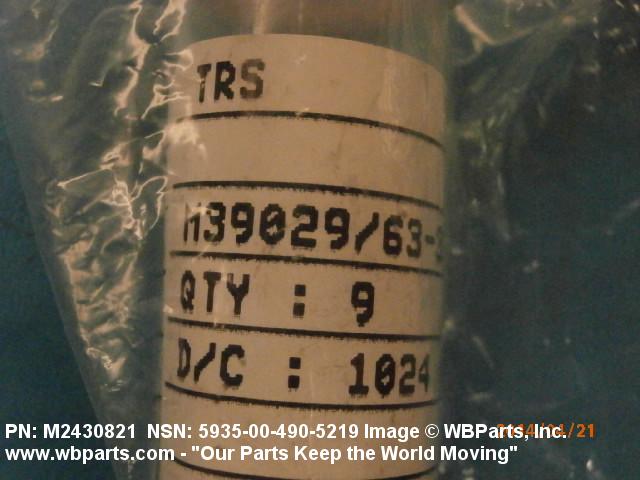

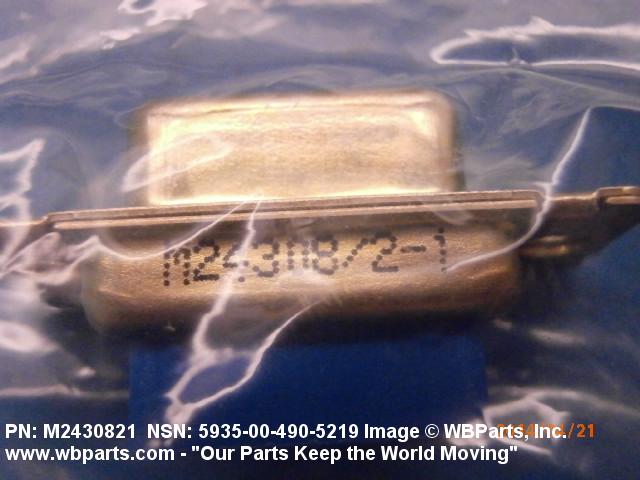

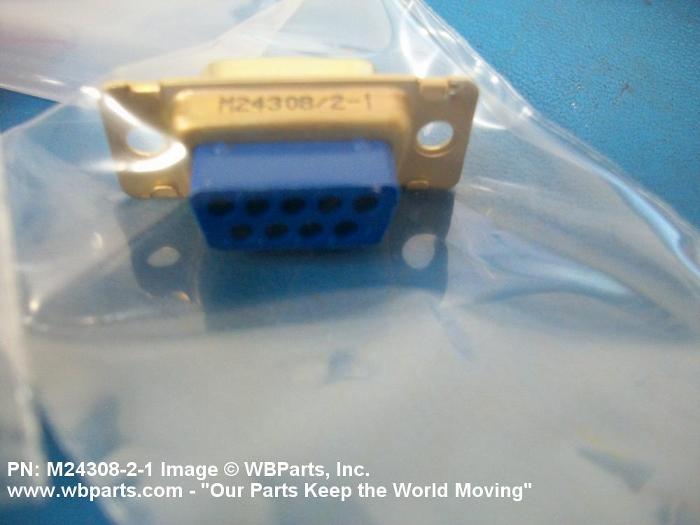

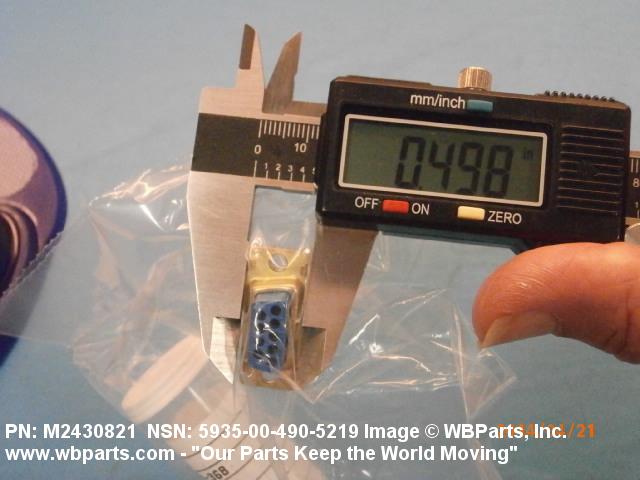

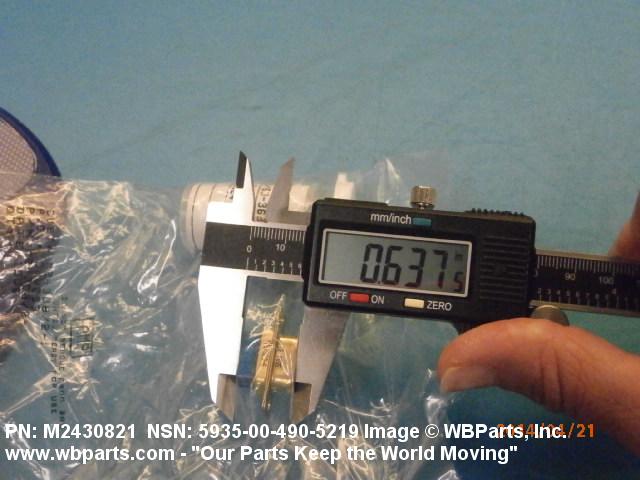

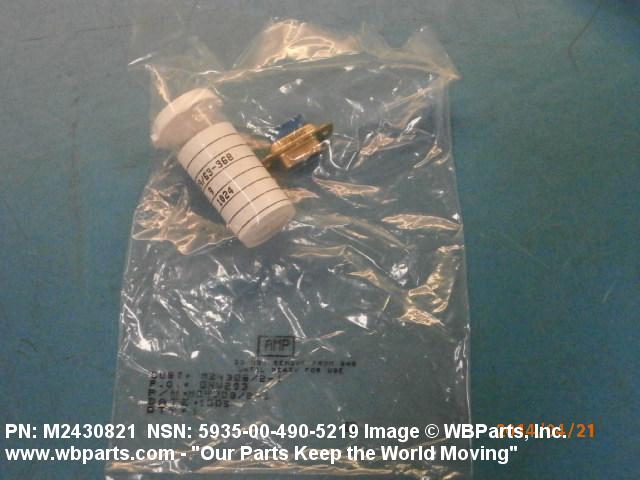

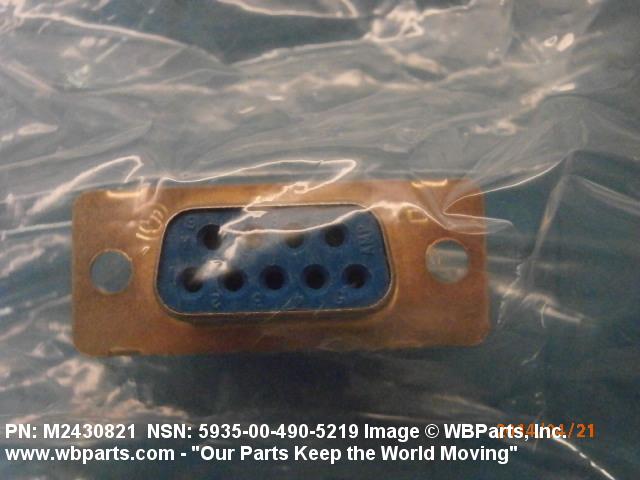

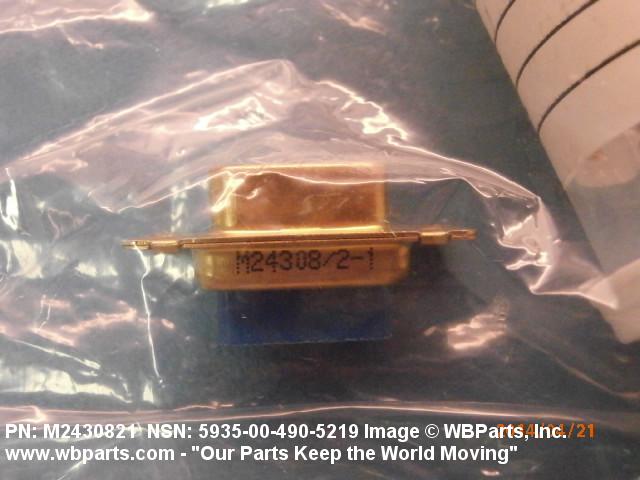

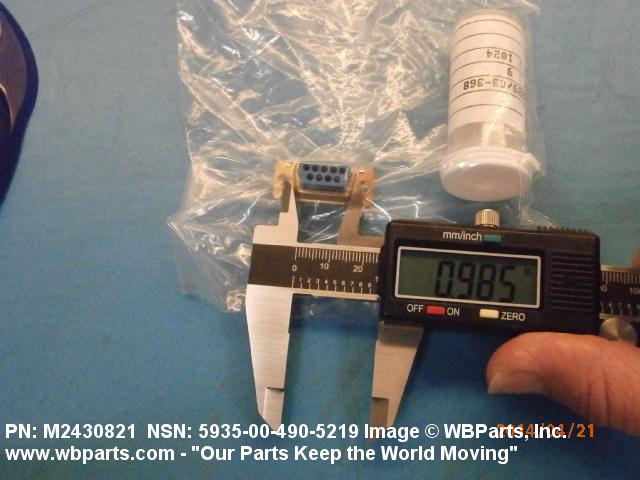

Drawings & Photos | NSN 5935-00-892-9322
Demand History | NSN 5935-00-892-9322
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M2430821 | 2024-05-123 | 1 | United States |
| 5935-00-892-9322 | 2023-08-215 | 444 | DIBBS |
| 5935-00-892-9322 | 2019-08-241 | 306 | DIBBS |
| 5935-00-892-9322 | 2019-04-108 | 493 | DIBBS |
| 5935-00-892-9322 | 2018-05-123 | 1 | GT |
| 5935-00-892-9322 | 2017-12-362 | 424 | DIBBS |
| 5935-00-892-9322 | 2017-07-193 | 6 | TR |
| 5935-00-892-9322 | 2016-09-251 | 533 | DIBBS |
| 5935-00-892-9322 | 2016-04-108 | 798 | DIBBS |
| 5935-00-892-9322 | 2015-12-355 | 617 | DIBBS |
| 5935-00-892-9322 | 2015-11-308 | 20 | Malaysia |
| 5935-00-892-9322 | 2015-05-137 | 913 | DIBBS |
| 5935-00-892-9322 | 2015-04-118 | 421 | DIBBS |
| MS3116F8-4S | 2015-04-91 | 5 | Greece |
| 5935-00-892-9322 | 2015-01-28 | 506 | DIBBS |
| 5935-00-892-9322 | 2014-07-188 | 562 | DIBBS |
| 5935-00-892-9322 | 2014-06-153 | 445 | DIBBS |
| M2430821 | 2014-04-105 | 12 | United States |
| M2430821 | 2014-04-99 | 12 | United States |
| 5935-00-892-9322 | 2014-03-86 | 407 | DIBBS |
| 5935-00-892-9322 | 2011-08-216 | 30 | United States |
| MS3116F845 | 2011-03-68 | 2 | ID |
| MILC26482 | 2011-01-27 | 4 | Portugal |
| MS3116F84S | 2011-01-17 | 3 | Malaysia |
| 5935-00-892-9322 | 2011-01-16 | 3 | MY |
| MS3116F84S | 2010-04-104 | 15 | US |
| 5935-00-892-9322 | 2008-12-352 | 2450 | DIBBS |
| MS3116F845 | 2008-04-93 | 5 | United States |
| 5935-00-892-9322 | 2007-08-233 | 1608 | DIBBS |
| 5935-00-892-9322 | 2007-04-109 | 252 | DIBBS |
| 5935-00-892-9322 | 2007-04-107 | 1 | United States |
| 5935-00-892-9322 | 2007-03-74 | 328 | DIBBS |
Cross Reference | NSN 5935-00-892-9322
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16-00602-028 | 00724 | RAYTHEON COMPANY DBA RAYTHEON |
| 255953 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 371-6532-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 4118700-108 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 715203-1 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 971.75.00.322 | S4080 | PILATUS AIRCRAFT LTD |
| L01949 | 16236 | DLA LAND AND MARITIME |
| M24308/2-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-26482 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-26482 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3116F-8-45 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3116F8-4S | 71468 | ITT CORPORATION DBA I T T CANNON |
| MS3116F8-4S | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3116F8-4S | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3116F8-4S | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-892-9322
Related Products | NSN 5935-00-892-9322
Technical Data | NSN 5935-00-892-9322
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF |
| BODY LENGTH | 1.828 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.750 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.234 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | AEAL 8-4 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 4 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 600.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2,GRADE C,CL 1 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,CL 2 FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND VIBRATION RESISTANT AND SALT WATER RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-26482 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 96906-MS3116 GOVERNMENT STANDARD |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.020 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-26482 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS3116F8-4S |
Restrictions/Controls & Freight Information | NSN 5935-00-892-9322
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-892-9322
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
