NSN 5935-00-891-8638 7314039, 731-4039, 00-891-8638
Product Details | ELECTRICAL CONNECTOR SHELL
5935-00-891-8638 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Part Alternates: 7314039, 731-4039, 5935-00-891-8638, 00-891-8638, 5935008918638, 008918638
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 JAN 1967 | 00-891-8638 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-00-891-8638
Cross Reference | NSN 5935-00-891-8638
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 731-4039 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-891-8638
Technical Data | NSN 5935-00-891-8638
| Characteristic | Specifications |
|---|---|

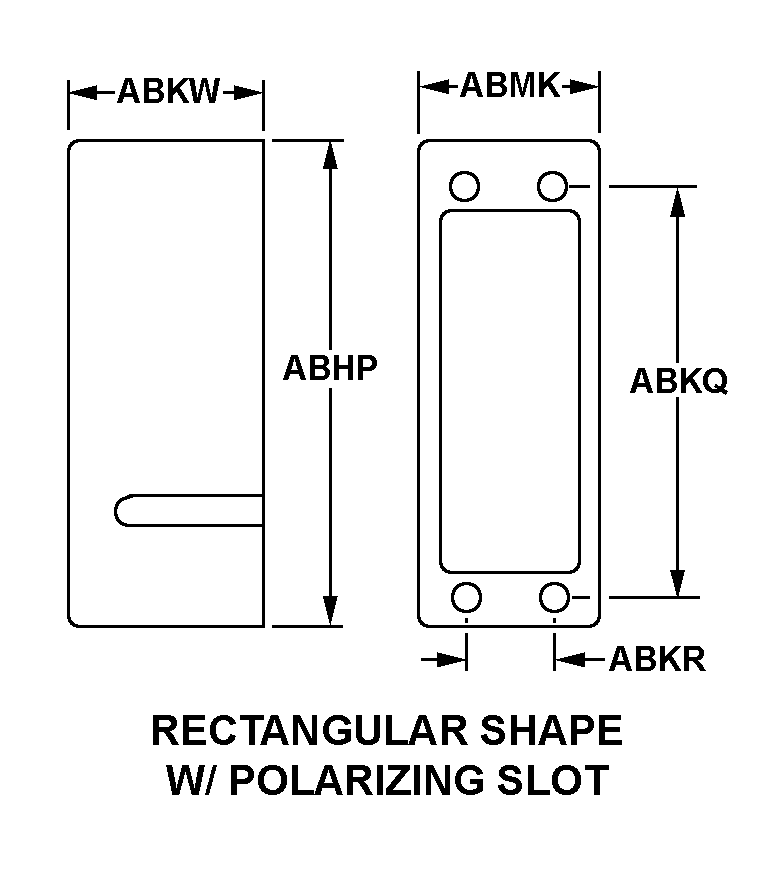

| STYLE DESIGNATOR | 23D RECTANGULAR SHAPE W/POLARIZING SLOT |
| OVERALL LENGTH | 3.258 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.102 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.330 INCHES NOMINAL |
| OVERALL WIDTH | 0.797 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.196 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5935-00-891-8638
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-891-8638
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
