NSN 5935-00-891-8475 MS3137E750S, MS3137E7-50S, AS81703

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-891-8475 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS3137E750S, MS3137E7-50S, AS81703 , MILC81703, 4575926, 457-5926 , 5935-00-891-8475, 00-891-8475, 5935008918475, 008918475

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	27 JAN 1967	00-891-8475	01938 ( CONNECTOR, PLUG, ELECTRICAL )

Drawings & Photos | NSN 5935-00-891-8475

Part Number	Request Date	QTY	Origin
5935-00-891-8475	2024-10-298	18	DIBBS
5935-00-891-8475	2024-08-242	23	DIBBS
5935-00-891-8475	2022-07-188	69	DIBBS
5935-00-891-8475	2022-02-39	22	DIBBS
5935-00-891-8475	2020-11-328	62	DIBBS
5935-00-891-8475	2020-11-313	62	DIBBS
5935-00-891-8475	2019-07-185	75	DIBBS
5935-00-891-8475	2018-12-350	37	DIBBS
5935-00-891-8475	2018-09-263	68	DIBBS
5935-00-891-8475	2018-08-235	63	DIBBS
5935-00-891-8475	2017-10-276	46	DIBBS
5935-00-891-8475	2015-12-340	100	DIBBS
5935-00-891-8475	2014-08-232	74	DIBBS
5935-00-891-8475	2014-04-114	68	DIBBS
5935-00-891-8475	2014-02-45	62	DIBBS
5935-00-891-8475	2013-10-304	31	DIBBS
5935-00-891-8475	2013-08-238	1	DE
5935-00-891-8475	2011-08-231	40	DIBBS
5935-00-891-8475	2010-12-354	20	DIBBS
5935-00-891-8475	2010-11-312	46	DIBBS
5935-00-891-8475	2010-09-250	36	DIBBS
5935-00-891-8475	2010-07-183	41	DIBBS
5935-00-891-8475	2010-05-139	96	DIBBS
5935-00-891-8475	2010-04-120	74	DIBBS
MS3137E750S	2010-04-98	2	US
5935-00-891-8475	2010-03-68	12	DIBBS
MS3137E750S	2010-03-63	2	US
5935-00-891-8475	2010-02-50	22	DIBBS
5935-00-891-8475	2010-02-47	100	US
5935-00-891-8475	2010-02-47	8	DIBBS
5935-00-891-8475	2010-02-41	8	DIBBS
5935-00-891-8475	2010-02-40	5	DIBBS
5935-00-891-8475	2010-01-19	122	DIBBS
5935-00-891-8475	2010-01-06	10	DIBBS
5935-00-891-8475	2009-12-348	25	DIBBS
5935-00-891-8475	2009-12-343	135	DIBBS
5935-00-891-8475	2007-08-221	370	DIBBS
5935-00-891-8475	2007-07-204	31	DIBBS
5935-00-891-8475	2007-07-204	48	DIBBS
5935-00-891-8475	2007-04-100	1	United States

Cross Reference | NSN 5935-00-891-8475

Part Number	Cage Code	Manufacturer
AS81703	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MILC81703	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3137E7-50S	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS3137E7-50S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-891-8475

Compare

Related Products | NSN 5935-00-891-8475

5935-00-891-8476, 5935-00-891-8477, 5935-00-891-8479, 5935-00-891-8480, 5935-00-891-8481

Technical Data | NSN 5935-00-891-8475

Characteristic	Specifications
BODY STYLE	7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	1.250 INCHES MAXIMUM
OVERALL DIAMETER	0.933 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	PUSH-PULL
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT	CHROMATE AND CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1

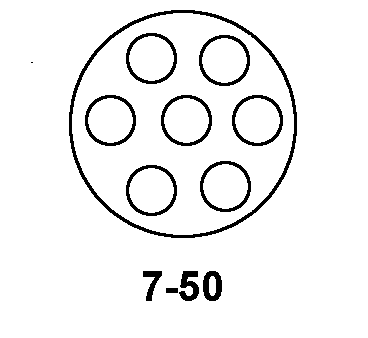

CONTACT POSITION ARRANGEMENT STYLE	AHAG 7-50 SINGLE MATING END
INSERT MATERIAL	PLASTIC SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION	MIL-M-14 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY	7 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	600.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 1,GRADE A MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
FURNISHED ITEMS	GROMMET
FEATURES PROVIDED	COLOR BAND ENGAGEMENT INDICATOR
ENVIRONMENTAL PROTECTION	MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT AND SHOCK RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-81703 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS3137 GOVERNMENT STANDARD
III OPERATING TEMP RATING	-55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.007 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILC81703
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS3137E7-50S

Restrictions/Controls & Freight Information | NSN 5935-00-891-8475

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	CT	U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-891-8475

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
