NSN 5935-00-879-8512 MS31191419PS, MS3119-14-19PS, MS3119E1419
Product Details | CONNECTOR ADAPTER
5935-00-879-8512 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Part Alternates: MS31191419PS, MS3119-14-19PS, MS3119E1419, MS3119E14-19, MS3119E1419PS, MS3119E14-19PS, MILC26482, 47A529842P7, 5935-00-879-8512, 00-879-8512, 5935008798512, 008798512
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 NOV 1967 | 00-879-8512 | 15091 ( ADAPTER, CONNECTOR ) |

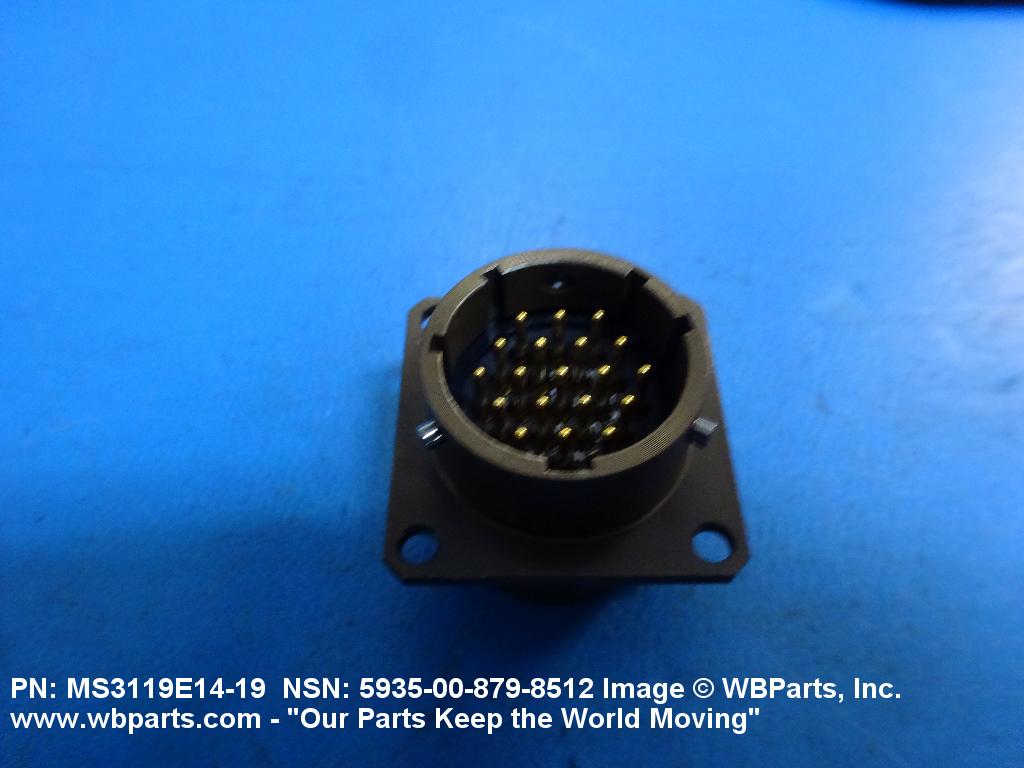

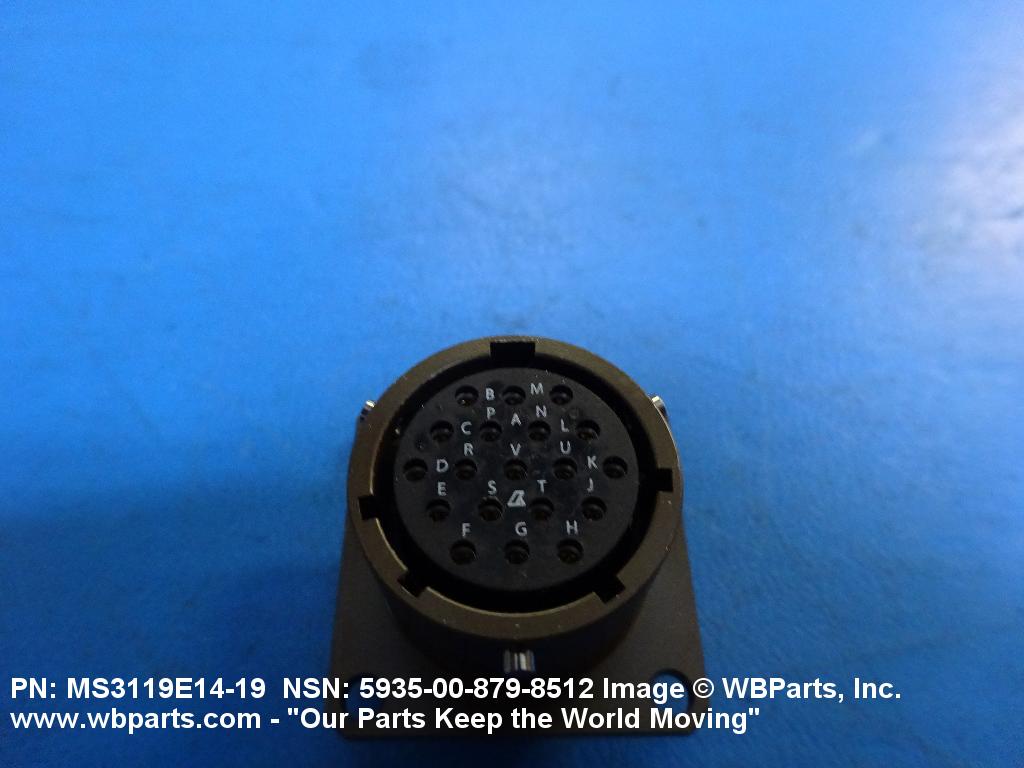

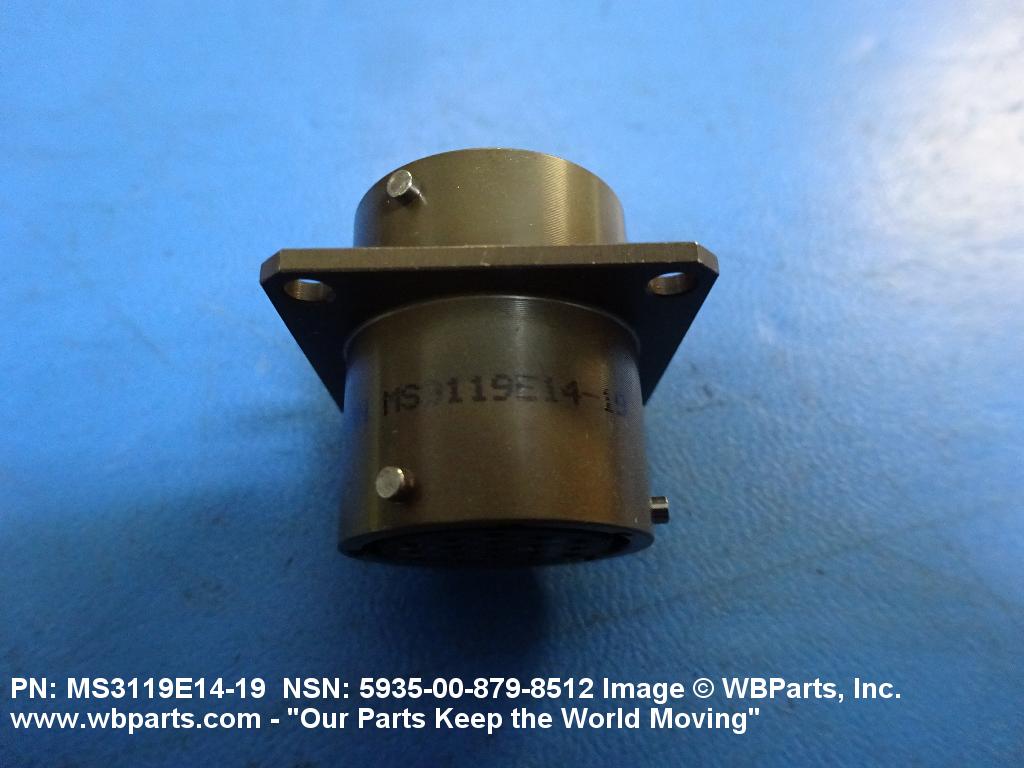

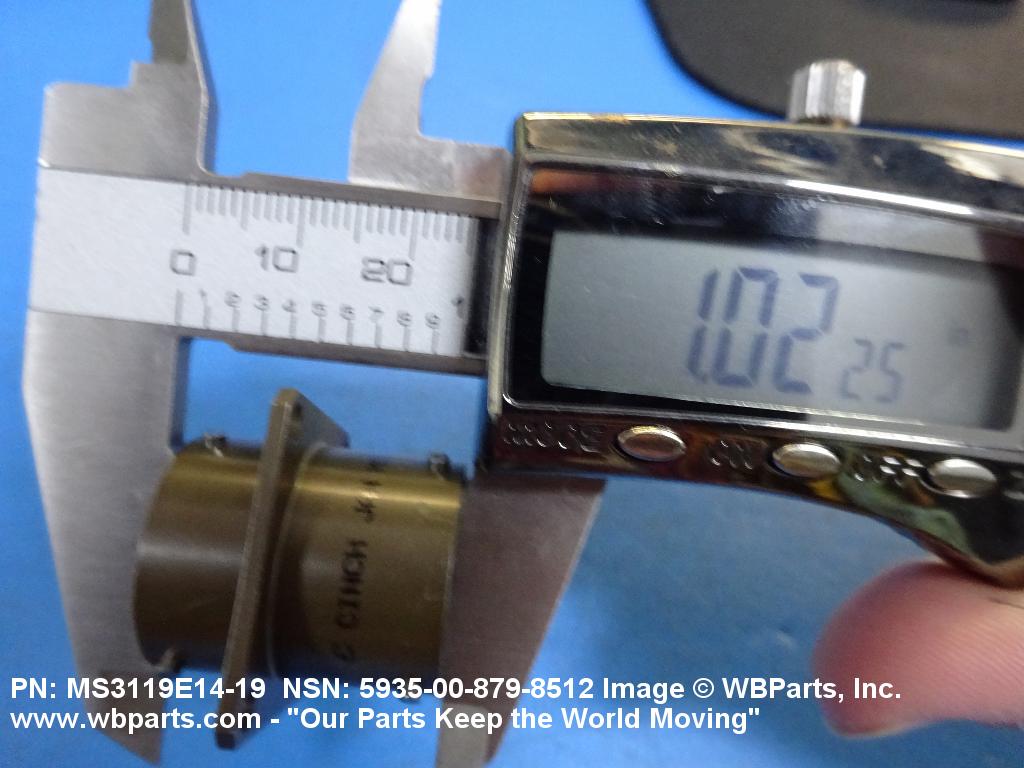

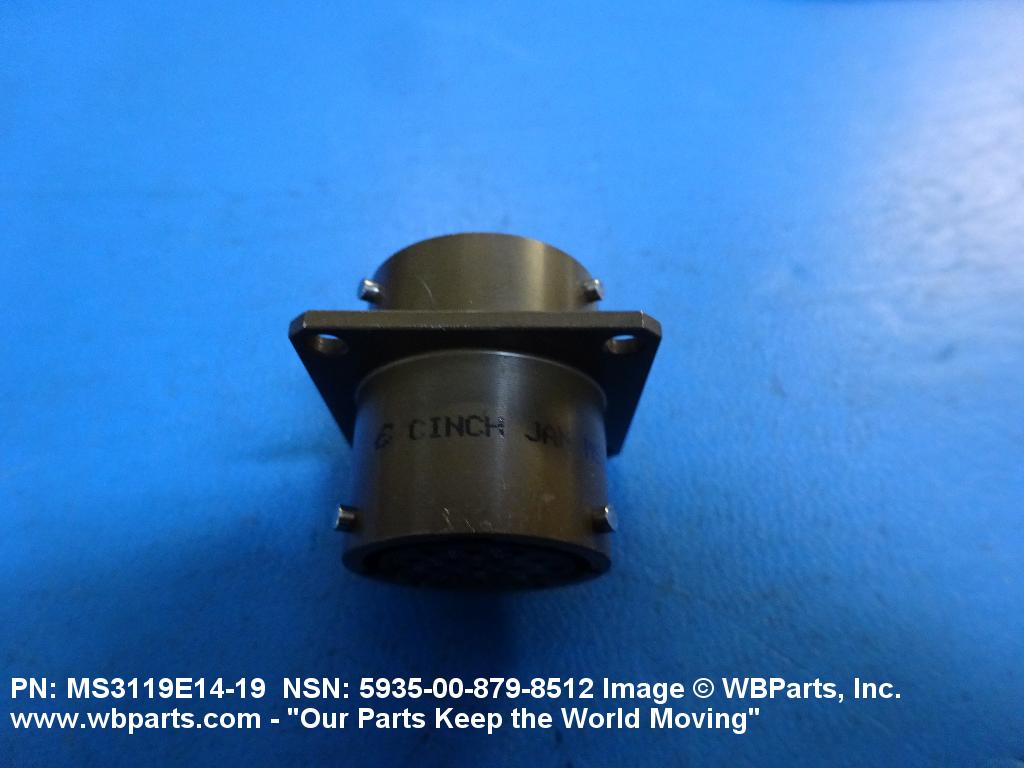

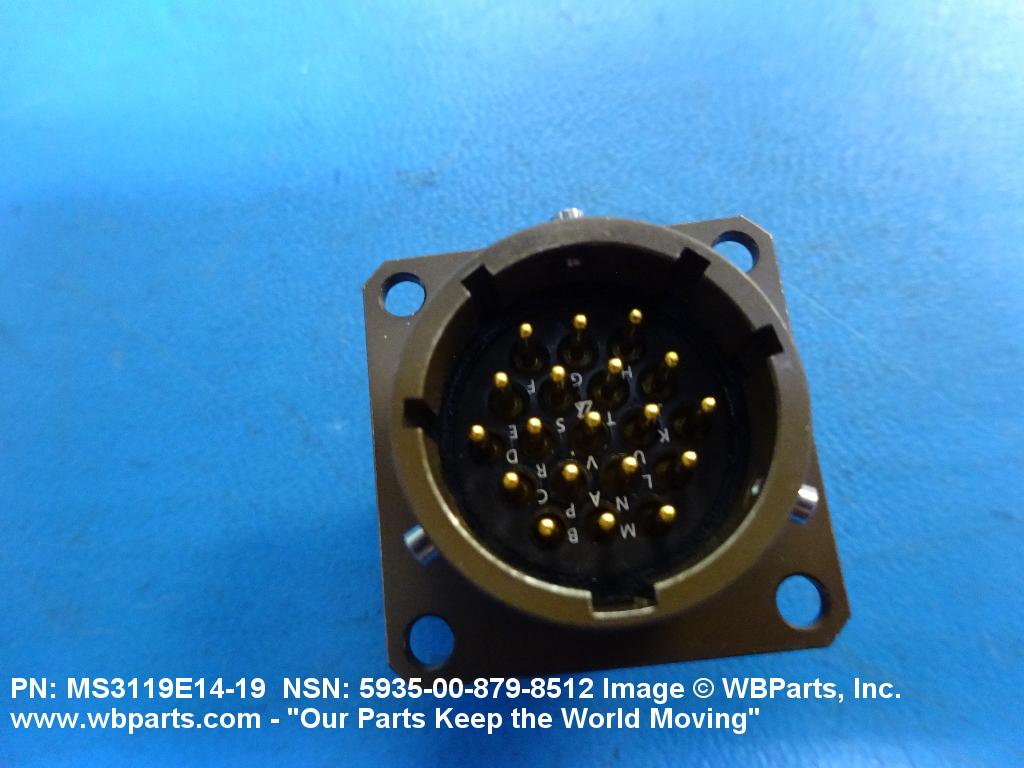

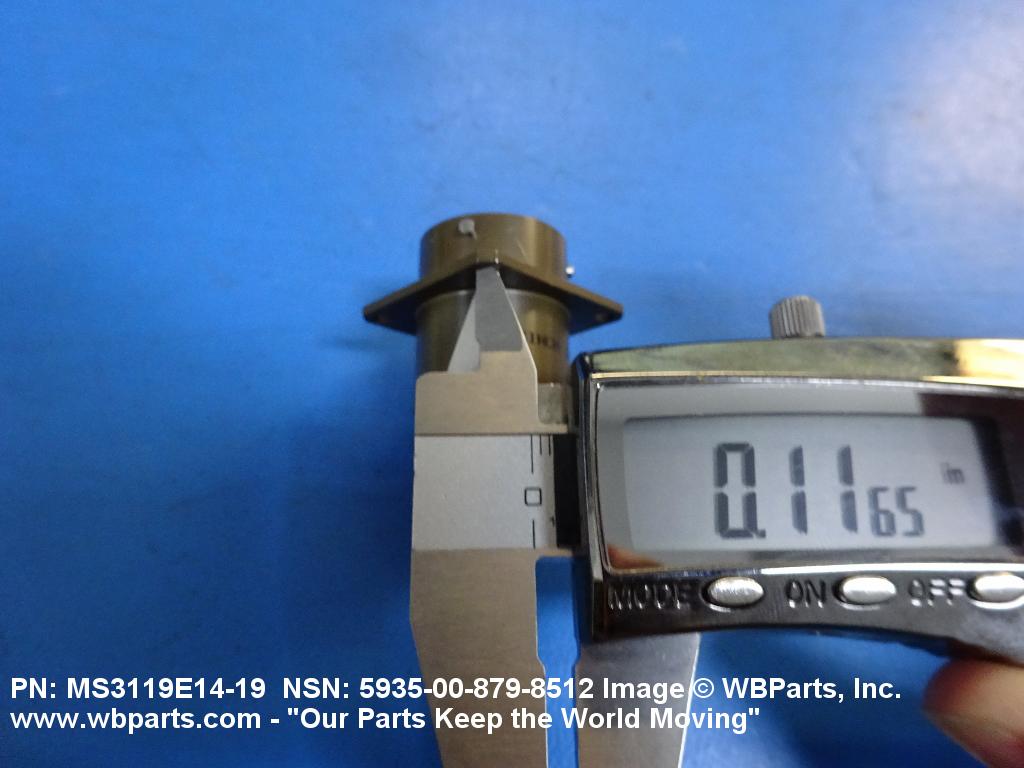

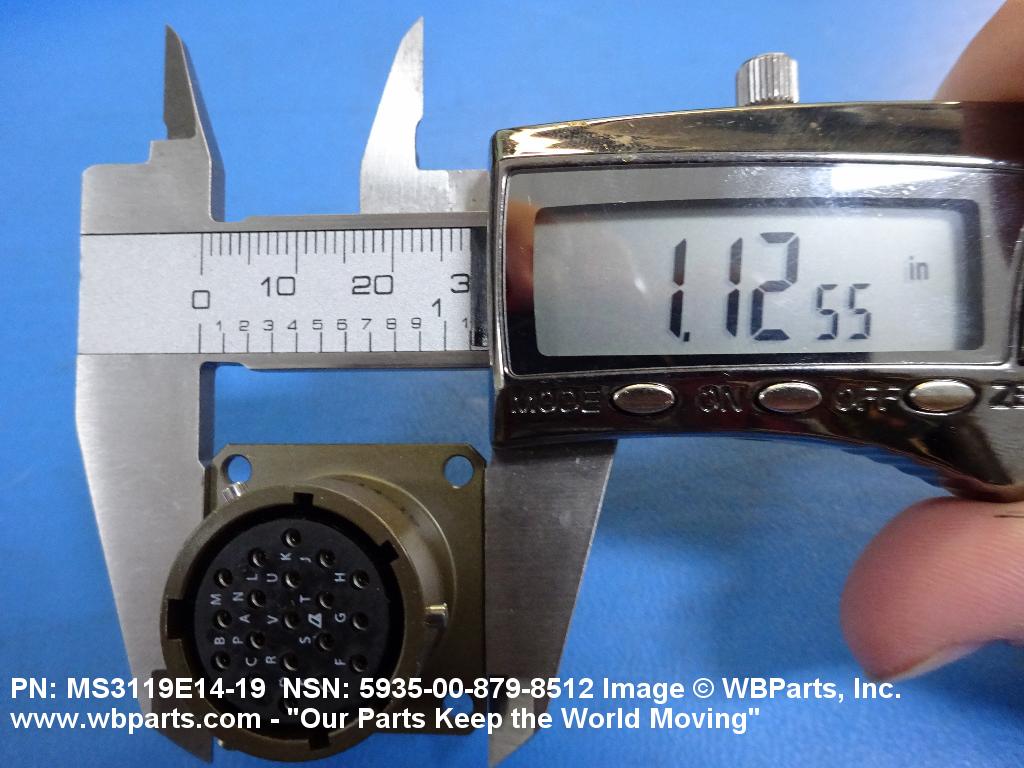

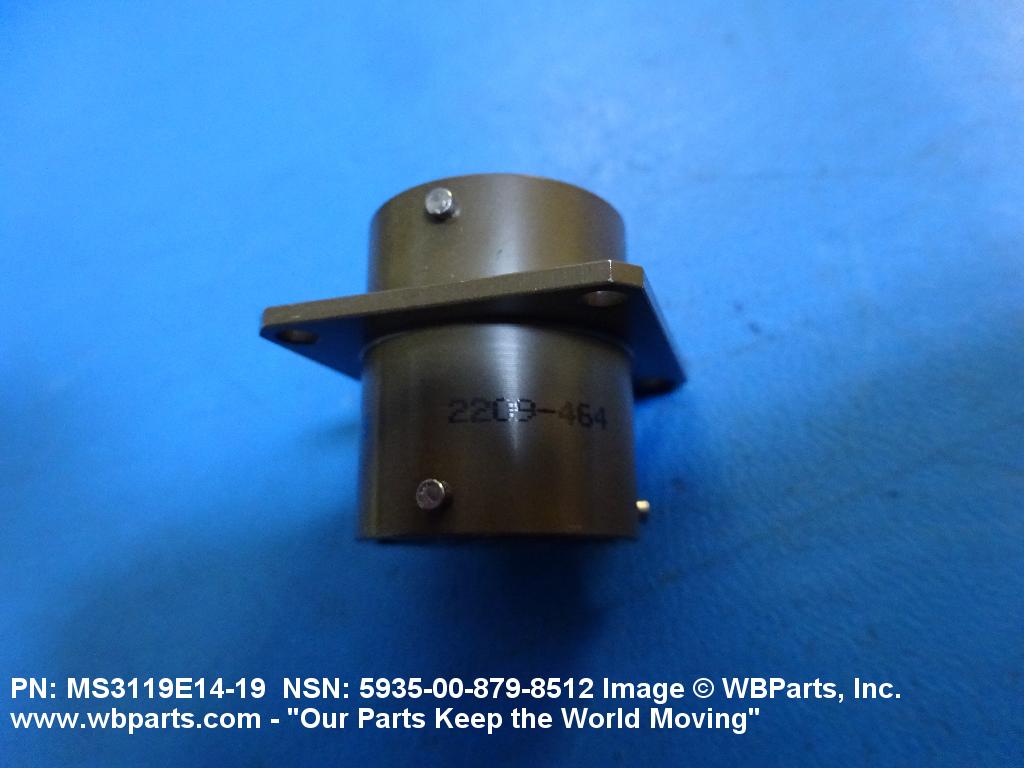

Drawings & Photos | NSN 5935-00-879-8512
Demand History | NSN 5935-00-879-8512
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-879-8512 | 2023-05-144 | 8 | MX |
| 5935-00-879-8512 | 2022-02-53 | 5 | United States |
| 5935-00-879-8512 | 2018-05-151 | 1000 | DIBBS |
| 5935-00-879-8512 | 2018-01-21 | 500 | DIBBS |
| 5935-00-879-8512 | 2017-12-352 | 216 | DIBBS |
| 5935-00-879-8512 | 2017-12-352 | 500 | DIBBS |
| 5935-00-879-8512 | 2017-07-201 | 320 | DIBBS |
| 5935-00-879-8512 | 2017-04-100 | 154 | DIBBS |
| MS3119E1419PS | 2015-02-57 | 10 | US |
| 5935-00-879-8512 | 2013-11-323 | 250 | DIBBS |
| 5935-00-879-8512 | 2013-06-153 | 196 | DIBBS |
| 5935-00-879-8512 | 2013-05-121 | 145 | DIBBS |
| MS3119E14-19 | 2012-01-10 | 100 | United States |
| MS3119E1419 | 2011-12-355 | 1 | United States |
| 5935-00-879-8512 | 2011-11-306 | 388 | DIBBS |
| 5935-00-879-8512 | 2011-09-262 | 36 | DIBBS |
| 5935-00-879-8512 | 2011-03-78 | 1 | DK |
| MILC26482 | 2011-01-27 | 4 | Portugal |
| 5935-00-879-8512 | 2007-12-341 | 221 | DIBBS |
| 5935-00-879-8512 | 2007-07-191 | 91 | DIBBS |
| 5935-00-879-8512 | 2007-06-176 | 1500 | us |
| 5935-00-879-8512 | 2007-04-107 | 100 | us |
Cross Reference | NSN 5935-00-879-8512
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3778209 | 45152 | OSHKOSH CORPORATION |
| 3778209 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 47A529842P7 | 23991 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| 5935008798512 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| MIL-DTL-26482 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILC26482 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3119-14-19PS | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3119E14-19 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3119E14-19PS | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-879-8512
Technical Data | NSN 5935-00-879-8512
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 20N STRAIGHT SHAPE W/FLANGE |
| OVERALL LENGTH | 1.125 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.141 INCHES MAXIMUM |
| OVERALL WIDTH | 1.141 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.906 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.906 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.562 INCHES MINIMUM AND 0.593 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.115 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 2 |
| CONTACT POSITION ARRANGEMENT STYLE | AVAB 14-19 ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 19 ALL MATING ENDS SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE ALL MATING ENDS ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND PIN 1ST MATING END ALL CONTACT GROUPINGS ROUND SOCKET 2ND MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 600.0 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD AND COPPER ALL MATING ENDS ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-26482 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-26482 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.019 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC26482 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS3119E14-19 |
Restrictions/Controls & Freight Information | NSN 5935-00-879-8512
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
