NSN 5935-00-879-6233 KPTB1419PS, KPTB14-19PS, PTB1419PS
Product Details | CONNECTOR ADAPTER
5935-00-879-6233 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.
Part Alternates: KPTB1419PS, KPTB14-19PS, PTB1419PS, PTB14-19PS, VPTB1419PS, VPTB14-19PS, 5935-00-879-6233, 00-879-6233, 5935008796233, 008796233
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-879-6233 | 15091 ( ADAPTER, CONNECTOR ) |
Drawings & Photos | NSN 5935-00-879-6233
Cross Reference | NSN 5935-00-879-6233
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KPTB14-19PS | D1371 | ITT CANNON GMBH |
| PTB14-19PS | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| PTB14-19PS | D8311 | AMPHENOL-TUCHEL ELECTRONICS GMBH |
| PTB14-19PS | D9853 | ROCKWELL COLLINS DEUTSCHLAND SERVICES GMBH |
| VPTB14-19PS | C2107 | VEAM ELEKTRO-ANSCHLUSSTECHNIK GMBH |
| VPTB14-19PS | D1371 | ITT CANNON GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-879-6233
Technical Data | NSN 5935-00-879-6233
| Characteristic | Specifications |
|---|---|

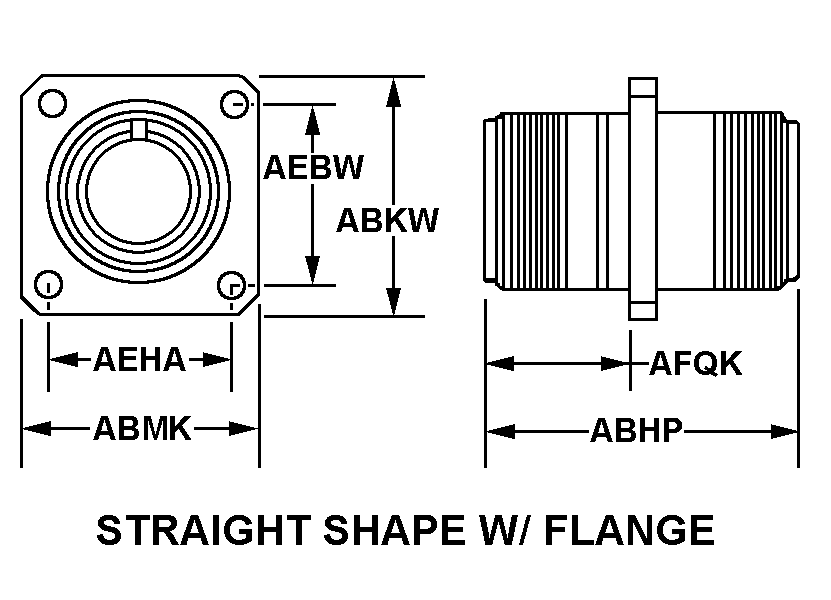

| BODY STYLE | 20N STRAIGHT SHAPE W/FLANGE |
| OVERALL LENGTH | 1.045 INCHES MINIMUM AND 1.056 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.109 INCHES MINIMUM AND 1.141 INCHES MAXIMUM |
| OVERALL WIDTH | 1.109 INCHES MINIMUM AND 1.141 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.906 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.906 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.562 INCHES MINIMUM AND 0.572 INCHES MAXIMUM |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.115 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 2 |

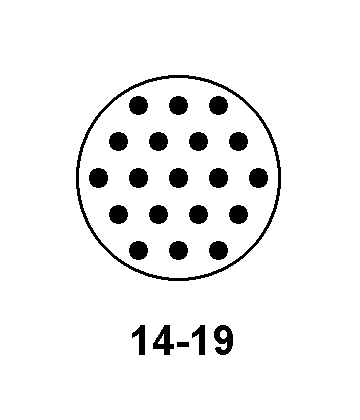

| CONTACT POSITION ARRANGEMENT STYLE | AVAB 14-19 ALL MATING ENDS |
| INSERT MATERIAL | RUBBER ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 19 ALL MATING ENDS SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN 1ST MATING END ALL CONTACT GROUPINGS ROUND SOCKET 2ND MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 500.0 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 700.0 ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER ALL MATING ENDS ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | PRESSURE PROOF |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.019 GOLD GRAINS, TROY AND 0.019 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 77820 |
| DESIGN CONTROL REFERENCE | PTB14-19PS |
Restrictions/Controls & Freight Information | NSN 5935-00-879-6233
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
