NSN 5935-00-878-1351 CVC6062AE7S, CVC6062AE7SG, PDS077S6043
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-878-1351 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: CVC6062AE7S, CVC6062AE7SG, PDS077S6043, PDS07-7S-6043, 5935-00-878-1351, 00-878-1351, 5935008781351, 008781351
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 AUG 1967 | 00-878-1351 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-878-1351
Cross Reference | NSN 5935-00-878-1351
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CVC6062AE7S | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
| CVC6062AE7S | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
| CVC6062AE7SG | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
| PDS07-7S-6043 | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-878-1351
Related Products | NSN 5935-00-878-1351
Technical Data | NSN 5935-00-878-1351
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 9A STRAIGHT SHAPE, INTERNAL COUPLING W/BACKSHELL |
| OVERALL LENGTH | 1.300 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.970 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET SHELL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-591 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE II,CLASS 1 FED SPEC ALL TREATMENT RESPONSES |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

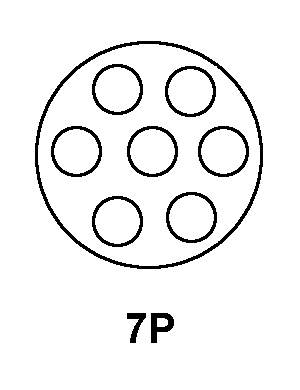

| CONTACT POSITION ARRANGEMENT STYLE | AHAD 7P SINGLE MATING END |
