NSN 5935-00-878-0198 10110111, 00-878-0198, 008780198
Product Details | ELECTRICAL CONNECTOR SHELL
5935-00-878-0198 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Part Alternates: 10110111, 5935-00-878-0198, 00-878-0198, 5935008780198, 008780198
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-878-0198 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-00-878-0198
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-878-0198
Technical Data | NSN 5935-00-878-0198
| Characteristic | Specifications |
|---|---|

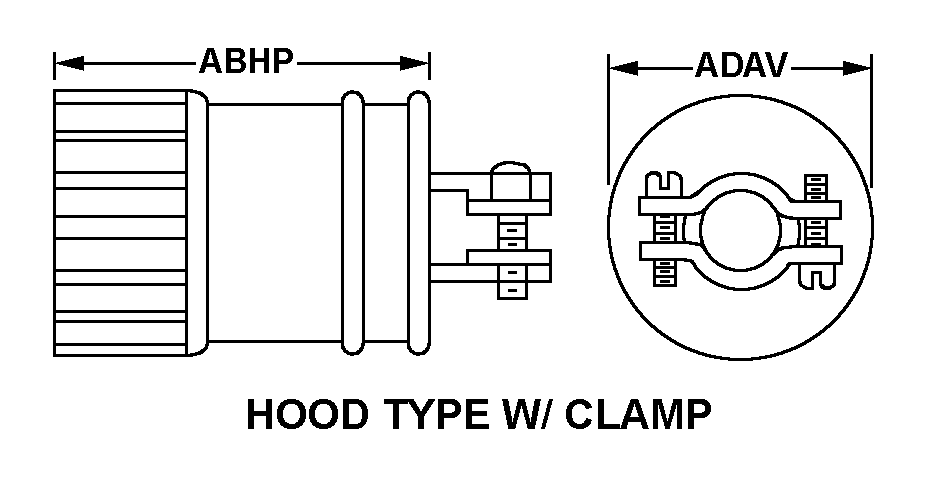

| STYLE DESIGNATOR | 14D HOOD TYPE W/CLAMP |
| OVERALL LENGTH | 2.281 INCHES NOMINAL |
| OVERALL DIAMETER | 0.859 INCHES NOMINAL |
| MATERIAL | METAL |
| SURFACE TREATMENT | BLACK OXIDE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 PRESS FIT |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | ANY ACCEPTABLE |
| FURNISHED ITEMS | CLAMP |
Restrictions/Controls & Freight Information | NSN 5935-00-878-0198
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
