NSN 5935-00-866-3180 SKT22, SKT22WHITE, JJ219189
Product Details | TIP JACK
5935-00-866-3180 An electrical fitting with a female contact arranged for the insertion of a PLUG, TIP or a TIP, TEST PROD. It has a single facility for attachment of a conductor or facility for circuit connection through its mounting provisions. The item may or may not be insulated. Excludes multisection types each section of which consists of a single contact spring or telephone-type jack. Excludes CONNECTOR, RECEPTACLE ELECTRICAL; JACK, TELEPHONE; JACK ASSEMBLY, TIP; and POST, BINDING.
Part Alternates: SKT22, SKT22WHITE, JJ219189, JJ219-18-9, 6020401, 00606296013108, 0062001, 006-2001, 006-2001-00-0-209, 006-2001-000-209, 19720251, 1972025-1, 5935-00-866-3180, 00-866-3180, 5935008663180, 0062001000209, 008663180
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-866-3180 | 15077 ( JACK, TIP ) |
Drawings & Photos | NSN 5935-00-866-3180
Cross Reference | NSN 5935-00-866-3180
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 006-2001 | 98291 | ITT CANNON RF PRODUCTS |
| 006-2001-00-0-209 | 98291 | ITT CANNON RF PRODUCTS |
| 006-2001-000-209 | 98291 | ITT CANNON RF PRODUCTS |
| 00606296013108 | 82679 | THE TECHNICAL MATERIAL CORPORATION DBA T M C |
| 1972025-1 | 19315 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND |
| 1972025-1 | 55974 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| 6020401 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 6020401 | 0B6S1 | INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54 |
| 6020401 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
| JJ219-18-9 | 82679 | THE TECHNICAL MATERIAL CORPORATION DBA T M C |
| SKT22 | 98291 | ITT CANNON RF PRODUCTS |
| SKT22WHITE | 98291 | ITT CANNON RF PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-866-3180
Related Products | NSN 5935-00-866-3180
Technical Data | NSN 5935-00-866-3180
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | TEST PROD SINGLE FINGER |
| FINGER ACCOMMODATION DIAMETER | 0.040 INCHES NOMINAL SINGLE FINGER |
| FINGER ACCOMMODATION LENGTH | 0.245 INCHES NOMINAL SINGLE FINGER |

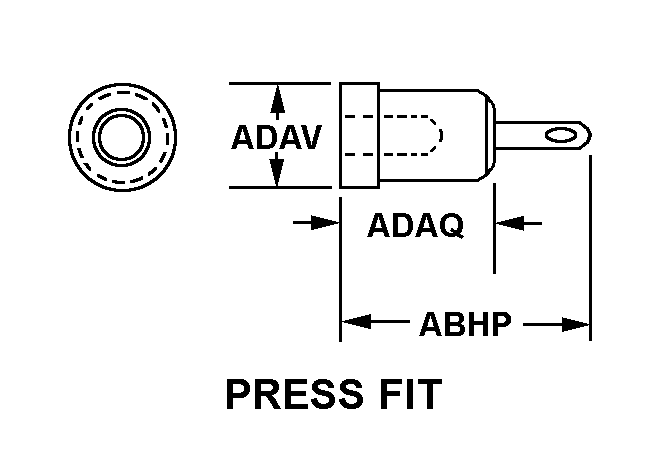

| BODY STYLE | 40 PRESS FIT |
| OVERALL LENGTH | 0.449 INCHES NOMINAL |
| BODY LENGTH | 0.329 INCHES NOMINAL |
| OVERALL DIAMETER | 0.142 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BUSHING |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| BUSHING THRU-HOLE ACCOMMODATION DIAMETER | 0.120 INCHES NOMINAL |
| ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| MATERIAL | PLASTIC, POLYTETRAFLUOROETHYLENE BODY PLASTIC, POLYTETRAFLUOROETHYLENE BUSHING BERYLLIUM COPPER SPRING BERYLLIUM COPPER TERMINAL |
| SURFACE TREATMENT | GOLD AND SILVER SPRING |
| IDENTIFICATION CODE COLOR | WHITE |
| TERMINAL TYPE | TURRET |
| MAXIMUM VOLTAGE RATING IN VOLTS | 1500.0 AC |
| CURRENT RATING IN AMPS | NOT RATED |
| CAPACITANCE IN PICOFARADS | 0.2 |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SPRING SURFACE GOLD |
| MANUFACTURERS CODE | 98291 |
| DESIGN CONTROL REFERENCE | SKT22 |
