NSN 5935-00-858-0181 L530000101, 2263993, 00-858-0181
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-00-858-0181 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: L530000101, 2263993, 5935-00-858-0181, 00-858-0181, 5935008580181, 008580181
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-858-0181 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-00-858-0181
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-858-0181
Technical Data | NSN 5935-00-858-0181
| Characteristic | Specifications |
|---|---|

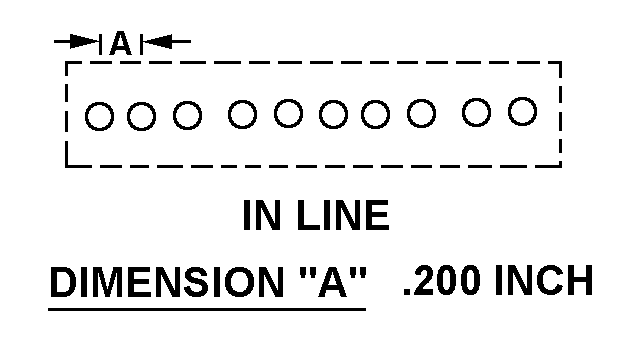

| CONTACT POSITION ARRANGEMENT STYLE | 1015A IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 10 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 5.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD |
| BODY STYLE | 54B PCB, STANDOFF TERMINALS |
| OVERALL LENGTH | 1.350 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.190 INCHES NOMINAL |
| OVERALL HEIGHT | 0.550 INCHES NOMINAL |
| OVERALL WIDTH | 0.355 INCHES MAXIMUM |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 10 SOLDER WELL |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.057 INCHES MINIMUM AND 1.067 INCHES MAXIMUM |

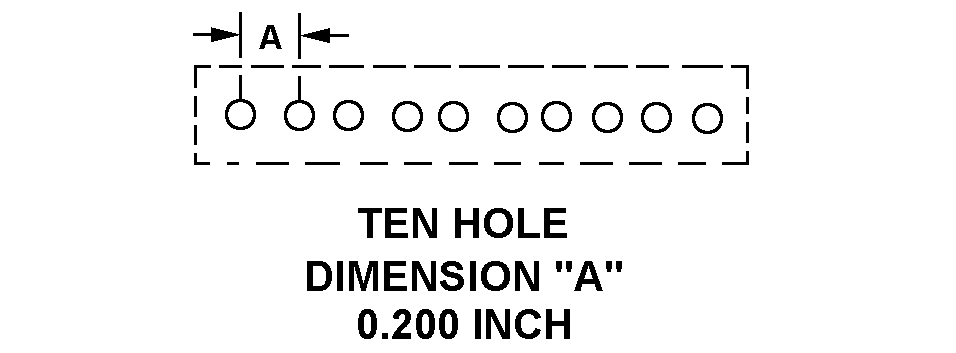

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 1021E TEN HOLE |
| III SPECIFIC EQUIPMENT ACCOMMODATED | RELAY |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.010 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
