NSN 5935-00-836-1207 MS3106R329P, MS3106R32-9P, MILC5015
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-836-1207 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3106R329P, MS3106R32-9P, MILC5015, MIL-C-5015, 5935-00-836-1207, 00-836-1207, 5935008361207, 008361207
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-836-1207 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-836-1207
Demand History | NSN 5935-00-836-1207
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3106R329P | 2007-06-174 | 4 | Colombia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-836-1207
Technical Data | NSN 5935-00-836-1207
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF |
| BODY LENGTH | 2.322 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.219 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 2.000 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 1.156 INCHES MINIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

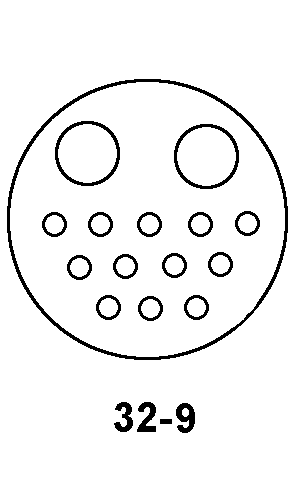

| CONTACT POSITION ARRANGEMENT STYLE | AQAM 32-9 SINGLE MATING END |
| INSERT MATERIAL | RUBBER SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END 1ST CONTACT GROUPING 12 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 135.0 SINGLE MATING END 1ST CONTACT GROUPING 22.0 SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 900.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 1250.0 SINGLE MATING END ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | SILVER SINGLE MATING END 1ST CONTACT GROUPING GOLD AND NICKEL SINGLE MATING END 2ND CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END 1ST CONTACT GROUPING MIL-G-45204 TY 1,GRADE B MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290 CL 1,GRADE B FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END 2ND CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF |
| SPECIAL FEATURES | WIRE GROMMET SEAL USED FOR ADDITONAL STRAIN RELIEF |
| TEST DATA DOCUMENT | 81349-MIL-C-5015 SPECIFICATION |
