NSN 5935-00-836-0500 BACP22E102, BACP22E1-02, 1080302001
Product Details | TIP PLUG
5935-00-836-0500 A banana or pin type termination applied to the end of a single electrical conductor and designed to be inserted in a jack or binding post. May be insulated or uninsulated. Excludes TIP, TEST PROD and PLUG, TELEPHONE.
Part Alternates: BACP22E102, BACP22E1-02, 1080302001, 108-0302-001, 108302, 108-302, 5935-00-836-0500, 00-836-0500, 5935008360500, 008360500
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-836-0500 | 15046 ( PLUG, TIP ) |
Drawings & Photos | NSN 5935-00-836-0500
Demand History | NSN 5935-00-836-0500
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1080302001 | 2019-03-60 | 2 | United States |
| 108302 | 2016-02-54 | 50 | US |
| 1080302001 | 2014-04-107 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-836-0500
Technical Data | NSN 5935-00-836-0500
| Characteristic | Specifications |
|---|---|
| FINGER TYPE | BANANA SPRING SINGLE FINGER |
| FINGER LENGTH | 0.531 INCHES NOMINAL ALL FINGERS |
| FINGER DIAMETER | 0.175 INCHES NOMINAL ALL FINGERS |

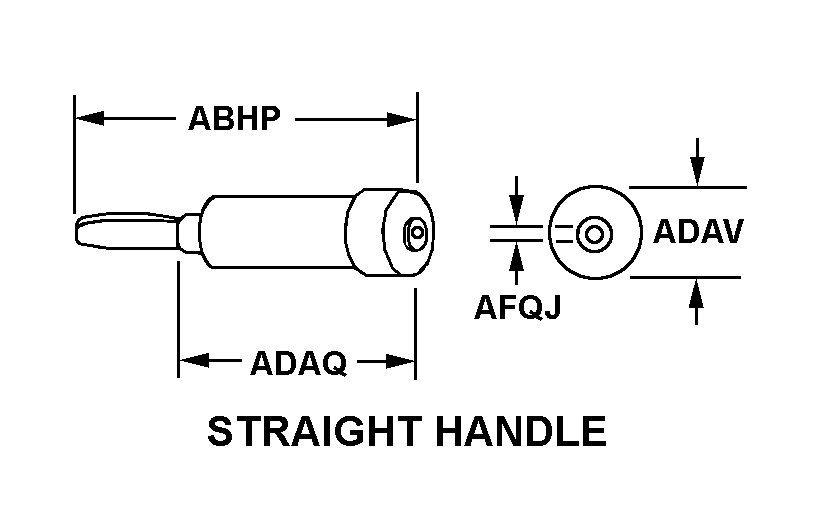

| BODY STYLE | 4 STRAIGHT HANDLE |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| BODY LENGTH | 0.969 INCHES NOMINAL |
| OVERALL DIAMETER | 0.375 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.156 INCHES NOMINAL |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | NICKEL ALLOY FINGER PLASTIC HANDLE BRASS TERMINAL |
| SURFACE TREATMENT | NICKEL TERMINAL |
| IDENTIFICATION CODE COLOR | RED |
| TERMINAL TYPE | THREADED STUD SOLDER CUP |
| CURRENT RATING IN AMPS | 15.0 |
