NSN 5935-00-817-7300 AV1000C, AV-1000C, BUWEPSDWG2662448
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-817-7300 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: AV1000C, AV-1000C, BUWEPSDWG2662448, DM97057S2023, DM9705-7S-2-023, DM97057S5023, DM9705-7S5-023, 1771934, 5935-00-817-7300, 00-817-7300, 5935008177300, 008177300
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-817-7300 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-817-7300
Demand History | NSN 5935-00-817-7300
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-817-7300 | 2013-11-325 | 5 | United States |
| 5935-00-817-7300 | 2010-04-92 | 14 | US |
| 5935-00-817-7300 | 2010-02-57 | 2 | DIBBS |
| 5935-00-817-7300 | 2007-04-96 | 1 | DIBBS |
| 5935-00-817-7300 | 2007-03-90 | 1 | DIBBS |
Cross Reference | NSN 5935-00-817-7300
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1771934 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 1771934 | 30194 | COMPONENT ENTERPRISES COMPANY, INC. |
| 1771934 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| AV-1000C | 58414 | AVEX ELECTRONICS CORP. |
| BUWEPSDWG2662448 | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
| DM9705-7S-2-023 | 11139 | DEUTSCH ENGINEERED CONNECTING DEVICES INC |
| DM9705-7S5-023 | 17419 | DEUTSCH CO THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-817-7300
Related Products | NSN 5935-00-817-7300
Technical Data | NSN 5935-00-817-7300
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 6A STRAIGHT SHAPE, EXTERNAL COUPLING W/STRAIN RELIEF |
| OVERALL LENGTH | 2.359 INCHES NOMINAL |
| DIAMETER | 0.906 INCHES NOMINAL |
| OVERALL DIAMETER | 0.906 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | SPRING FRICTION |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS B FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

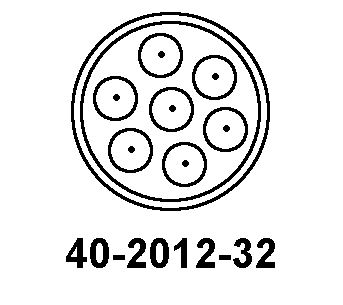

| CONTACT POSITION ARRANGEMENT STYLE | AHBY 40-2012-32 SINGLE MATING END |
| INSERT MATERIAL | RUBBER SYNTHETIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 7 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 7.5 SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | WATERTIGHT |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.007 GOLD GRAINS, TROY AND 0.007 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 53711 |
| MFR SOURCE CONTROLLING REFERENCE | 1771934 |
