NSN 5935-00-813-2490 TJ8GD, 2125315, 00-813-2490
Product Details | TIP JACK
5935-00-813-2490 An electrical fitting with a female contact arranged for the insertion of a PLUG, TIP or a TIP, TEST PROD. It has a single facility for attachment of a conductor or facility for circuit connection through its mounting provisions. The item may or may not be insulated. Excludes multisection types each section of which consists of a single contact spring or telephone-type jack. Excludes CONNECTOR, RECEPTACLE ELECTRICAL; JACK, TELEPHONE; JACK ASSEMBLY, TIP; and POST, BINDING.
Part Alternates: TJ8GD, 2125315, 5935-00-813-2490, 00-813-2490, 5935008132490, 008132490
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAR 1968 | 00-813-2490 | 15077 ( JACK, TIP ) |
Drawings & Photos | NSN 5935-00-813-2490
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-813-2490
Related Products | NSN 5935-00-813-2490
Technical Data | NSN 5935-00-813-2490
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | TEST PROD SINGLE FINGER |
| FINGER ACCOMMODATION DIAMETER | 0.080 INCHES NOMINAL SINGLE FINGER |
| FINGER ACCOMMODATION LENGTH | ANY ACCEPTABLE SINGLE FINGER |

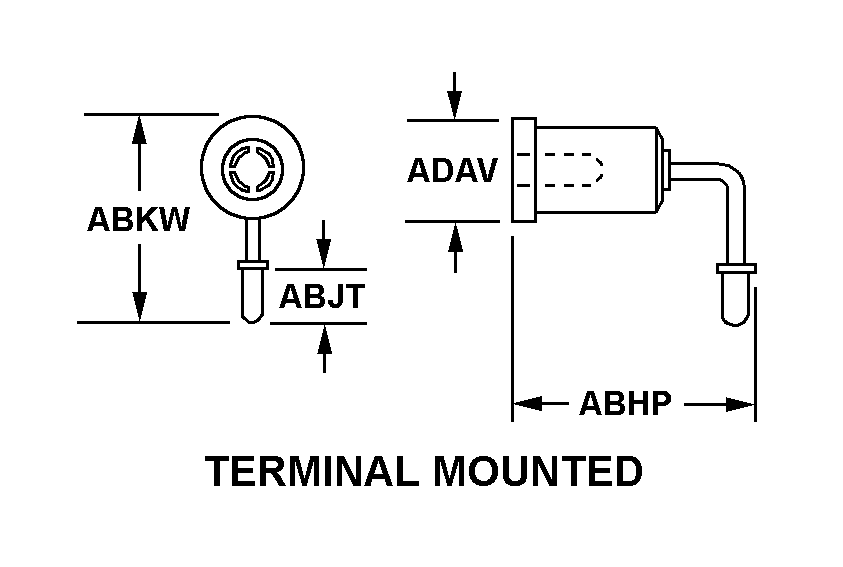

| BODY STYLE | 38 TERMINAL MOUNTED |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| TERMINAL LENGTH | 0.280 INCHES NOMINAL |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| OVERALL DIAMETER | 0.250 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 TERMINAL |
| ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| MATERIAL | PLASTIC, DIALLYL PHTHALATE BODY PLASTIC, DIALLYL PHTHALATE INSULATOR PHOSPHOR BRONZE SPRING PHOSPHOR BRONZE TERMINAL |
| SURFACE TREATMENT | ANY ACCEPTABLE BODY ANY ACCEPTABLE INSULATOR GOLD AND SILVER SPRING GOLD AND SILVER TERMINAL |
| IDENTIFICATION CODE COLOR | NATURAL |
| TERMINAL TYPE | PIN |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | 4.0 |
| CAPACITANCE IN PICOFARADS | NOT RATED |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT AND TERMINAL SURFACES GOLD AND CONTACT AND TERMINAL SURFACES SILVER |
