Product Details | TELEPHONE PLUG
5935-00-790-0567 A concentric type electrical fitting consisting of two or more conductors on a common shank. The contacts on two or three conductor plugs are termed sleeve, tip, or ring. It includes multiple shank plugs of this type. Excludes PLUG, TIP.
Part Alternates: 227, 5935-00-790-0567, 00-790-0567, 5935007900567, 007900567
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-790-0567 | 00178 ( PLUG, TELEPHONE ) |

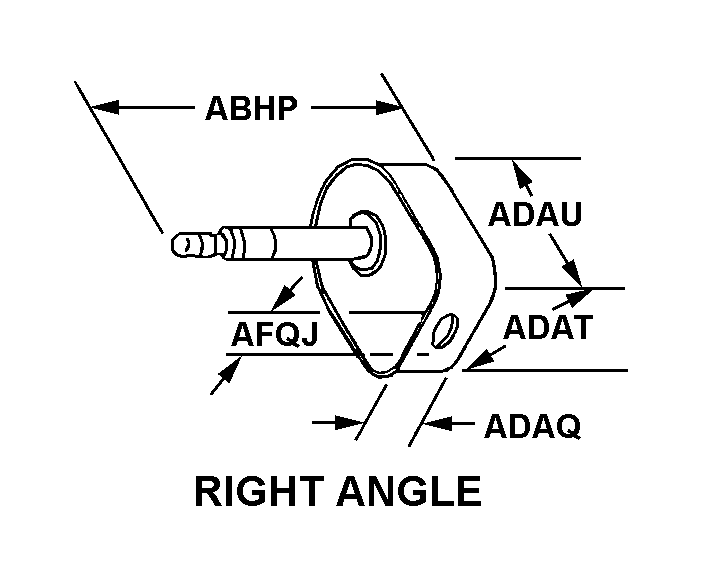

Drawings & Photos | NSN 5935-00-790-0567
Demand History | NSN 5935-00-790-0567
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-790-0567 | 2016-10-276 | 50 | DIBBS |
| 5935-00-790-0567 | 2015-09-246 | 10 | DIBBS |
| 5935-00-790-0567 | 2015-06-165 | 10 | DIBBS |
| 227 | 2012-02-39 | 345 | United States |
Cross Reference | NSN 5935-00-790-0567
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 227 | 82389 | SWITCHCRAFT INC. |
