NSN 5935-00-686-0447 MS251821, MS25182-1, MS251822

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-686-0447 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS251821, MS25182-1, MS251822, MS25182-2, MS3106R3217SY, MS3106R32-17SY, BD6-3, BD6-3 1, BD631, F300 0T 016 5991, F3000T0165991, MILP18148, MIL-P-18148, Z00.N7707115228, Z00N7707115228, 10087193, 6415780, 976.19.11.101, 9761911101, 9761911103, BD63, 0120002601, 0120-002-601, 1127-23-268, 115001, 1397320, 5935-00-686-0447, 00-686-0447, 1005006860447 , 5935006860447, 006860447, 112723268

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-686-0447	01938 ( CONNECTOR, PLUG, ELECTRICAL )

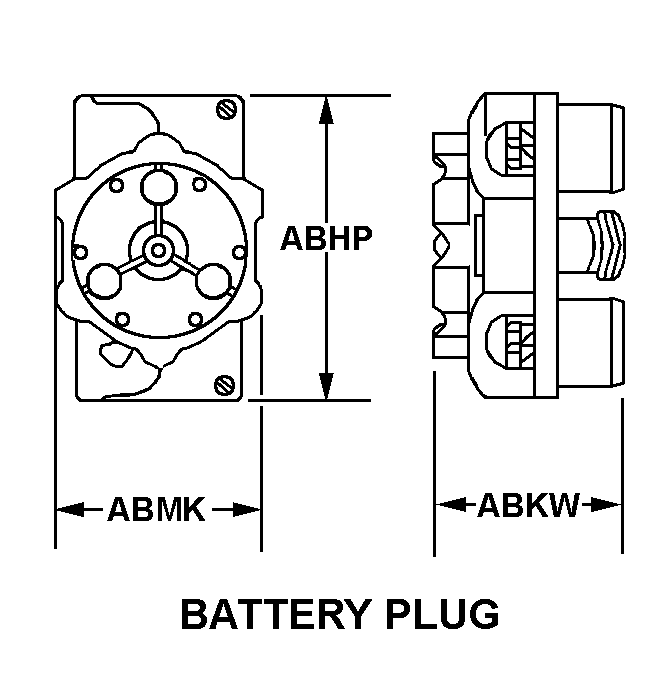

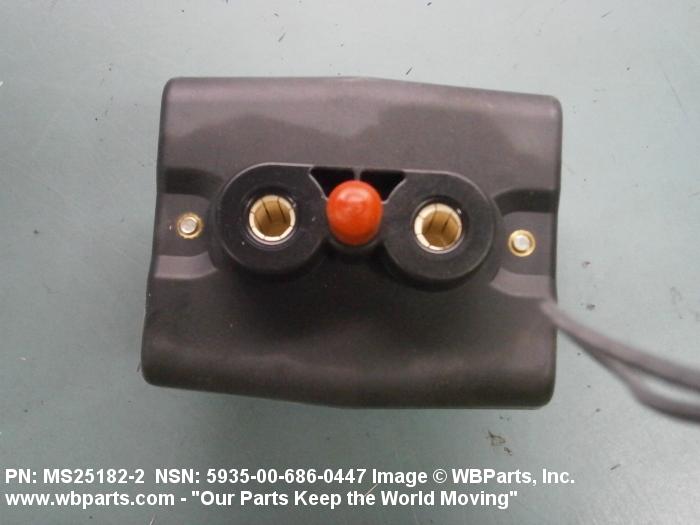

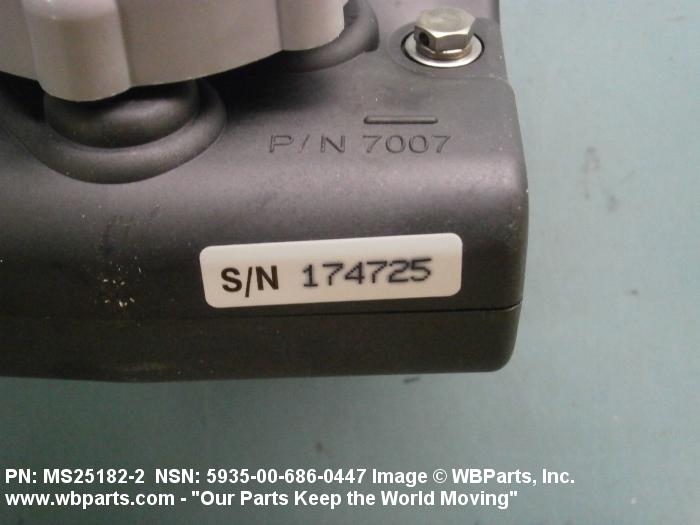

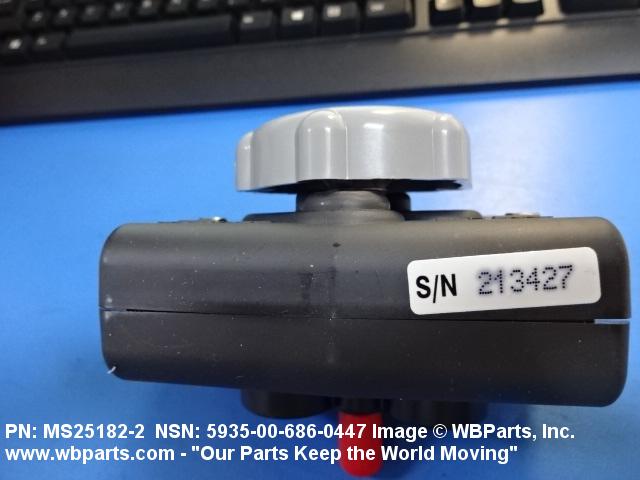

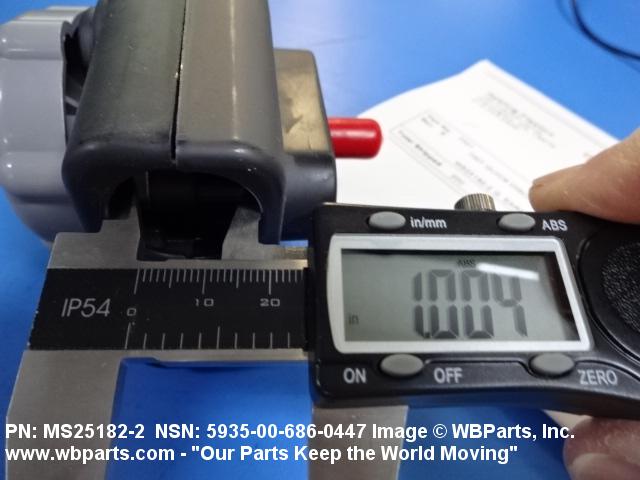

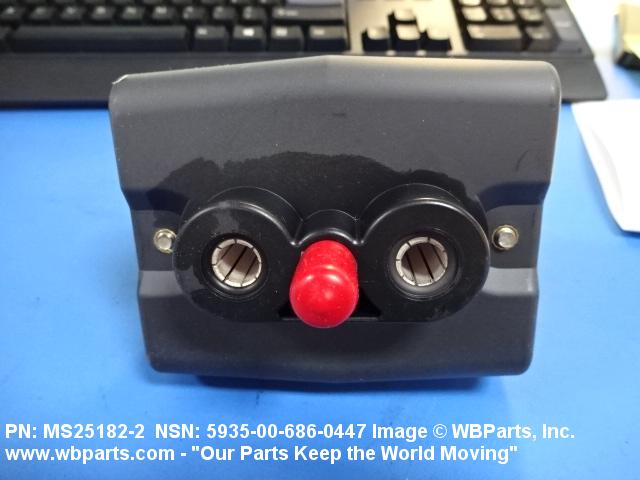

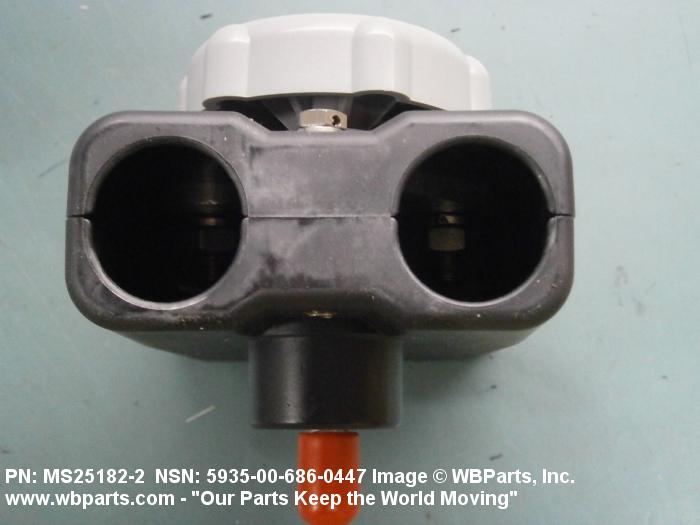

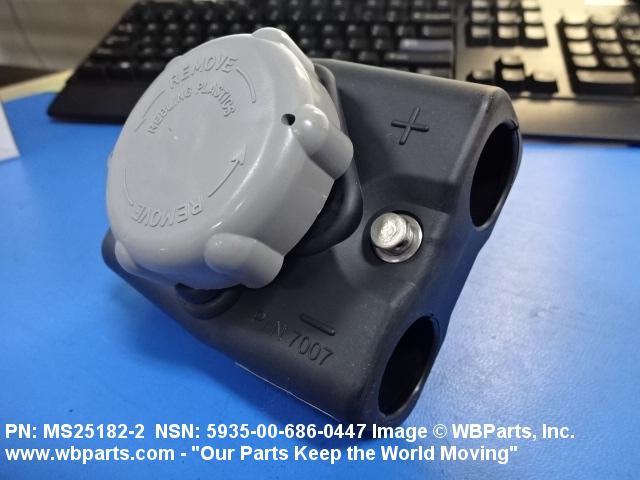

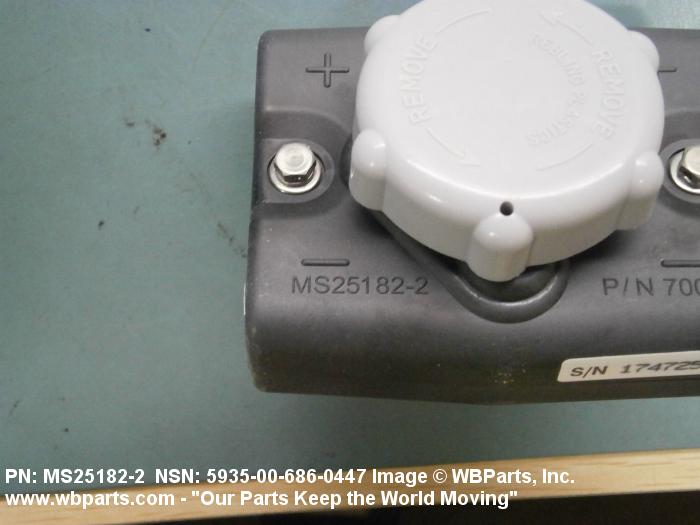

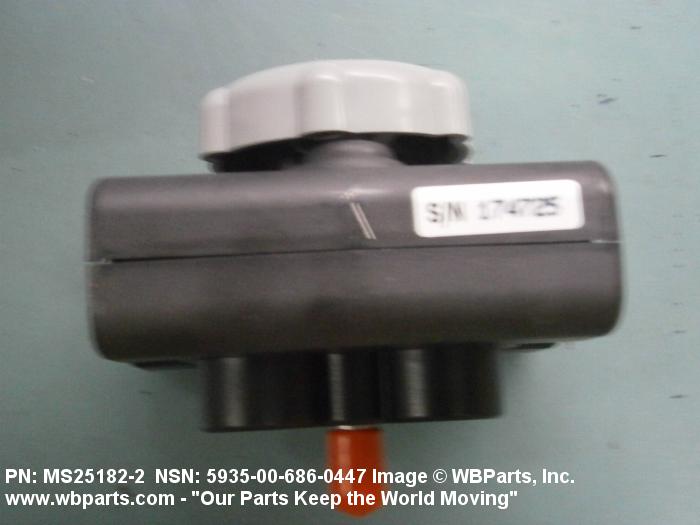

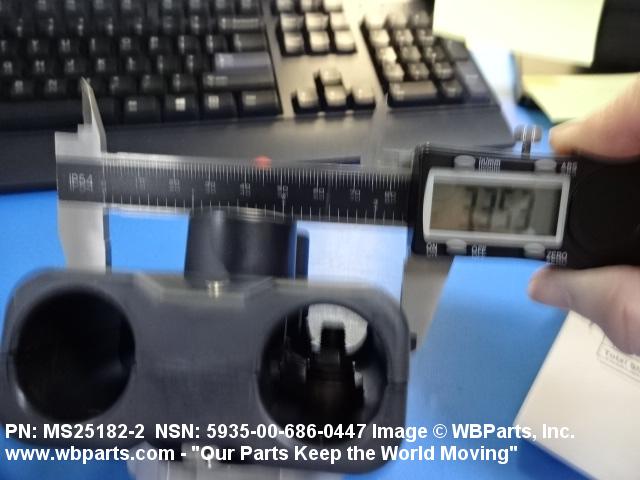

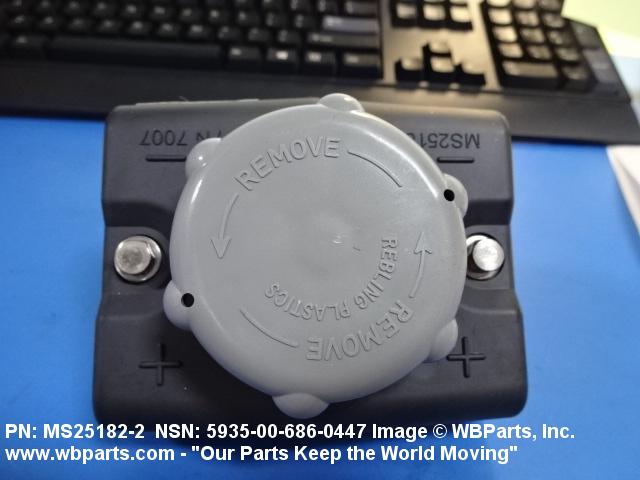

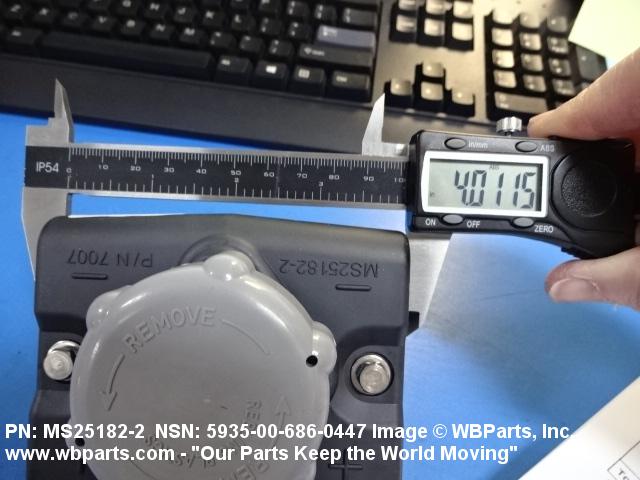

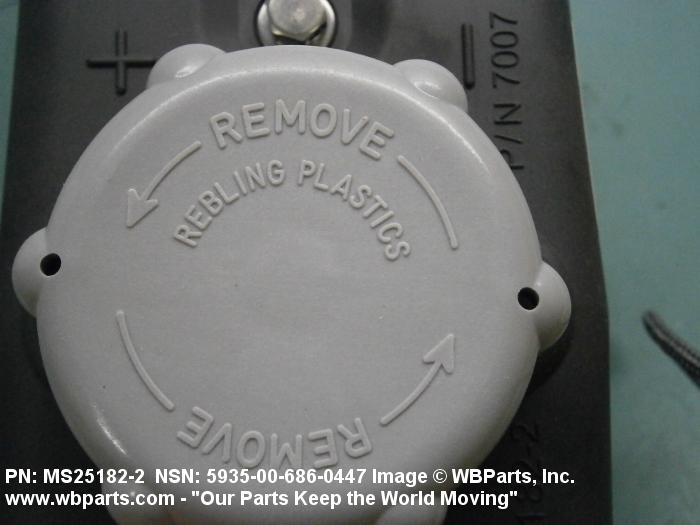

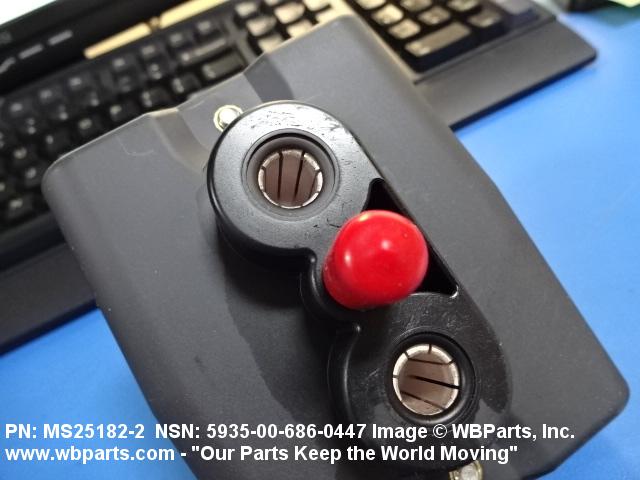

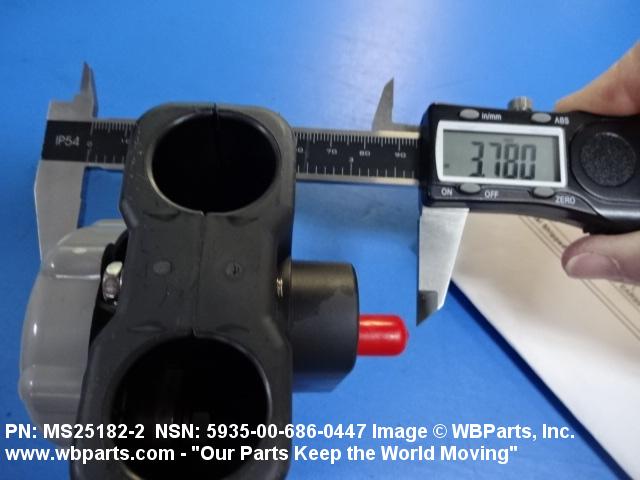

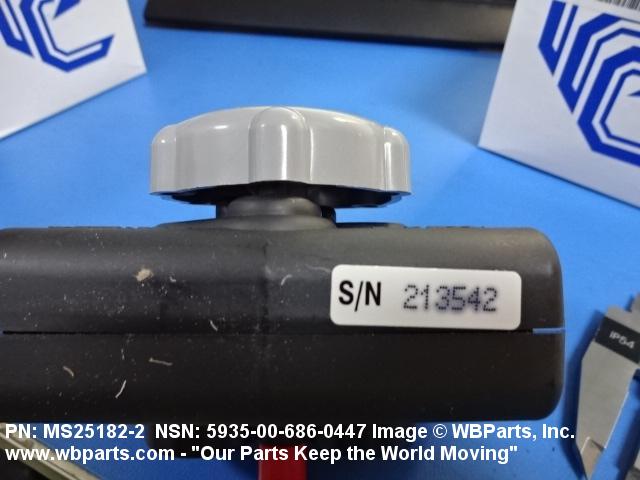

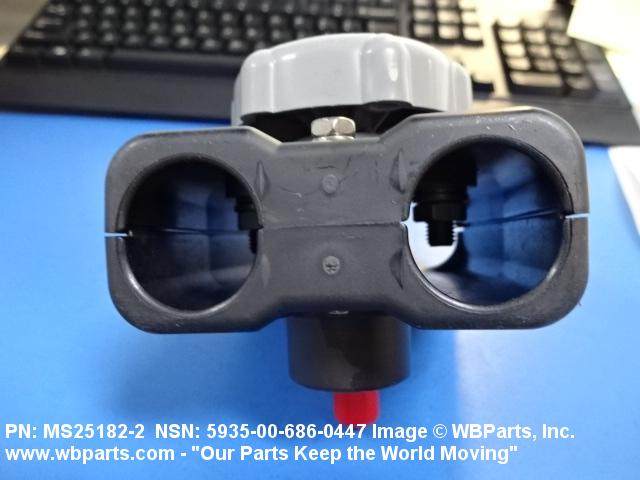

Drawings & Photos | NSN 5935-00-686-0447
