NSN 5935-00-660-4297 JDP20, KN5705, KN57-05
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-660-4297 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: JDP20, KN5705, KN57-05 , KN5807, KN58-07 , PC1247 , PL1247, RE49F569 , RE49F569A, REB49090, REB49090A, REB-49090A , RGKM324C12, RGKM3-24C1-2, UG536 , UG536/U , UG-5368/U , UG5368U , UG536AU, UG536A-U , UG536B/U , UG-536B/U , UG536BU , UG536B-U , UG536C/U , UG-536C/U , UG536CU, UG536U, FJ4729714, GC810GL1 , GC810NC2, J900088001, J90-0088-001 , JA30 , 374-070-005 , 38712 , 4118700065, 4118700-065 , 4610015568 , 55A5592ITEM12, 588A712, 588A71-2 , 58A07117K01 , 5M452122053, 5M4521-220-53 , 653031 , 7717, 8136915 , 8519144, 8750060002, 875006-0002 , 8909754 , 9105, 99099135 , 0472.9714.00 , 0472971400, 09P2225923, 09P222592-3 , 100N1000A , 11N5031, 11N-50-3-1 , 12500078, 1250-0078 , 12500280, 1250-0280 , 19134 , 20273780701, 2027378-0701 , 24140210001, 2414021-0001 , 25062 , 2761239P1, 276-1239P1 , 2769005P1, 276-9005P1 , 3164421, 316442-1 , 31961, 3196-1 , 34000 , 34025, 352250019555 , 3579288000, 357-9288-000 , 3579519000, 357-9519-000 , 5935-00-660-4297, 00-660-4297, 5935006604297, 374070005, 038006004 , 006604297
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-660-4297 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-660-4297
Demand History | NSN 5935-00-660-4297
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| UG536BU | 2022-11-331 | 14 | MY |
| UG5368U | 2014-03-90 | 36 | US |
Cross Reference | NSN 5935-00-660-4297
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RGKM3-24C1-2 | 71468 | ITT CORPORATION DBA I T T CANNON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-660-4297
Technical Data | NSN 5935-00-660-4297
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 15A ANGLE SHAPE WITH CABLE/CLAMP |
| OVERALL DIAMETER | 1.422 INCHES MINIMUM AND 1.453 INCHES MAXIMUM |
| BODY ANGLE IN DEG | 90.0 |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING NUT |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | ACME |
| NOMINAL THREAD SIZE | 1.250 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 6 |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

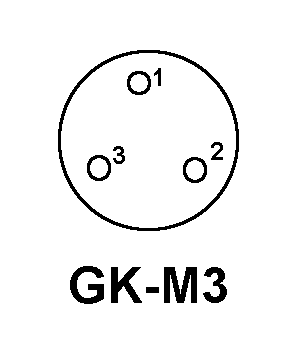

| CONTACT POSITION ARRANGEMENT STYLE | ADBZ GK-M3 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC MELAMINE OR PLASTIC PHENOLIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 3 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 15.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.003 GOLD GRAINS, TROY AND 0.003 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER |
