Product Details | TIP JACK
5935-00-660-3823 An electrical fitting with a female contact arranged for the insertion of a PLUG, TIP or a TIP, TEST PROD. It has a single facility for attachment of a conductor or facility for circuit connection through its mounting provisions. The item may or may not be insulated. Excludes multisection types each section of which consists of a single contact spring or telephone-type jack. Excludes CONNECTOR, RECEPTACLE ELECTRICAL; JACK, TELEPHONE; JACK ASSEMBLY, TIP; and POST, BINDING.
Part Alternates: 27881158, 2788-1158, 9077583, 5935-00-660-3823, 00-660-3823, 5935006603823, 006603823
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-660-3823 | 15077 ( JACK, TIP ) |
Drawings & Photos | NSN 5935-00-660-3823
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-660-3823
Technical Data | NSN 5935-00-660-3823
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | SPLIT END SINGLE FINGER |
| FINGER ACCOMMODATION DIAMETER | ANY ACCEPTABLE SINGLE FINGER |
| FINGER ACCOMMODATION LENGTH | 0.391 INCHES NOMINAL SINGLE FINGER |

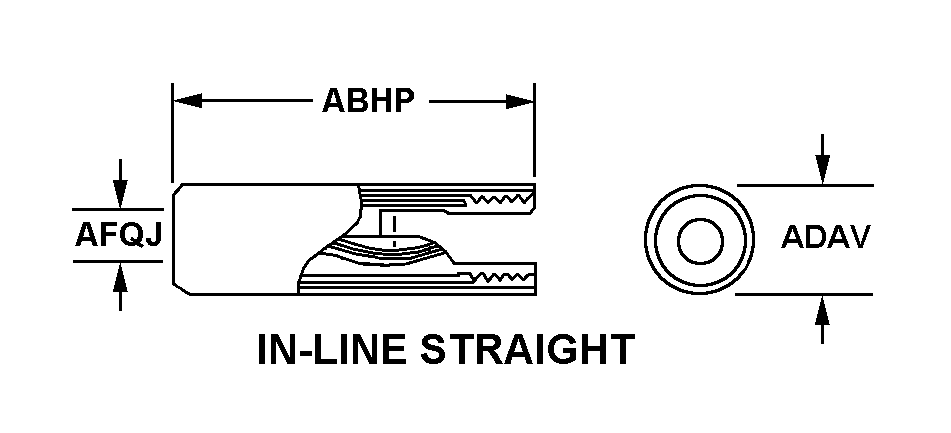

| BODY STYLE | 15 IN-LINE STRAIGHT |
| OVERALL LENGTH | 0.812 INCHES NOMINAL |
| OVERALL DIAMETER | 0.119 INCHES MINIMUM AND 0.121 INCHES MAXIMUM |
| CABLE ENTRANCE DIAMETER | ANY ACCEPTABLE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED STUD |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 56 |
| THREAD DIRECTION | RIGHT-HAND |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | ANY ACCEPTABLE BODY |
| SURFACE TREATMENT | SILVER BODY SILVER CONTACT |
| IDENTIFICATION CODE COLOR | AMBER |
| TERMINAL TYPE | THREADED STUD SOLDER CUP |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
| CAPACITANCE IN PICOFARADS | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.100 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT AND BODY SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5935-00-660-3823
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-660-3823
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
