NSN 5935-00-594-7689 M39012/01-0503, M39012010503, M3901210503

Product Details | ELECTRICAL PLUG CONNECTOR

5935-00-594-7689 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: M39012/01-0503, M39012010503, M3901210503, M39012-1-0503, MIL-C-39012/1, MILC390121, GHN20004006, GHN20004-006 , KN59242, KN-59-242, 824427, 82-4427, 5935-00-594-7689, 00-594-7689, 5935005947689, 005947689

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	08 JAN 1975	00-594-7689	01938 ( CONNECTOR, PLUG, ELECTRICAL )

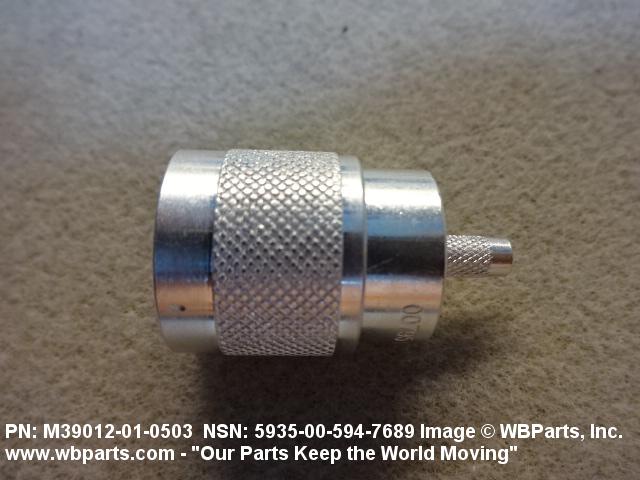

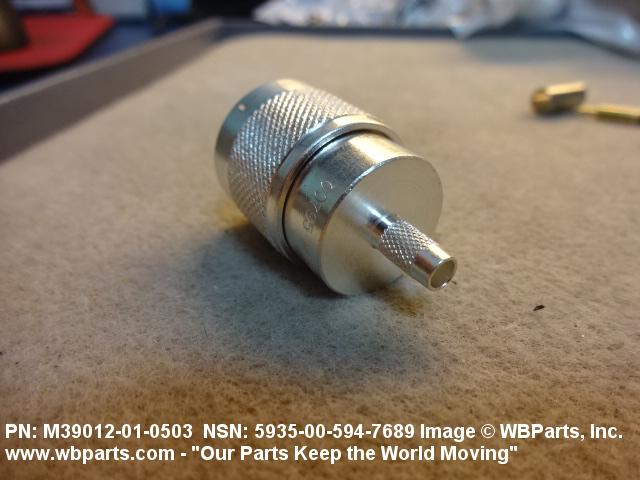

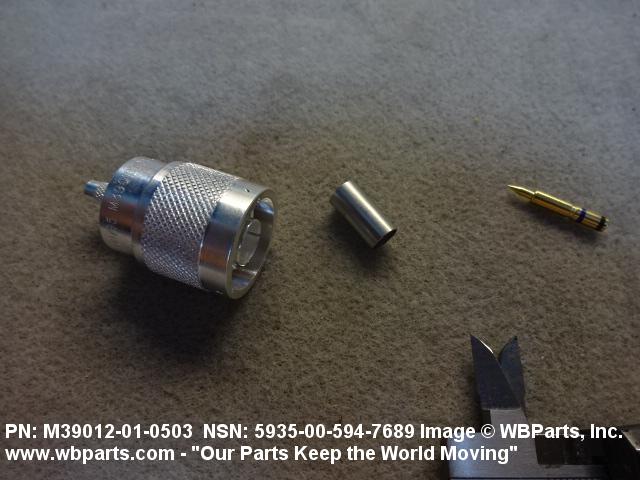

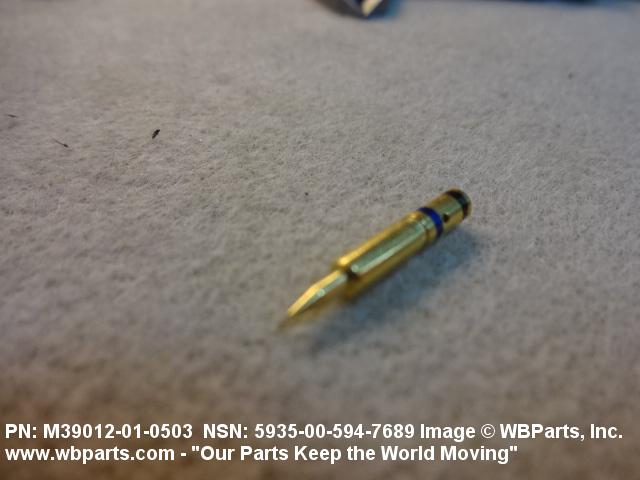

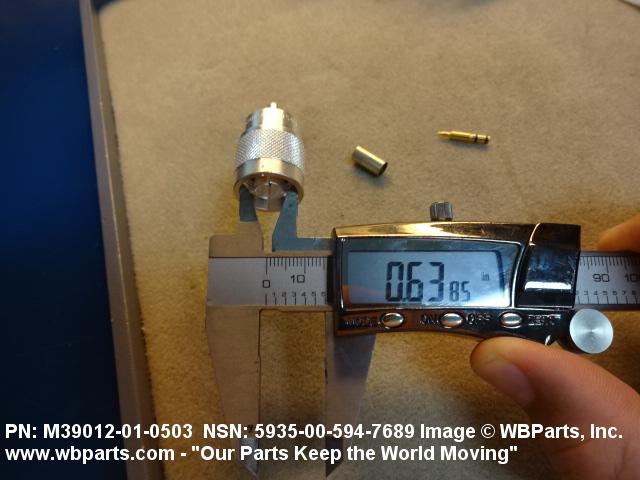

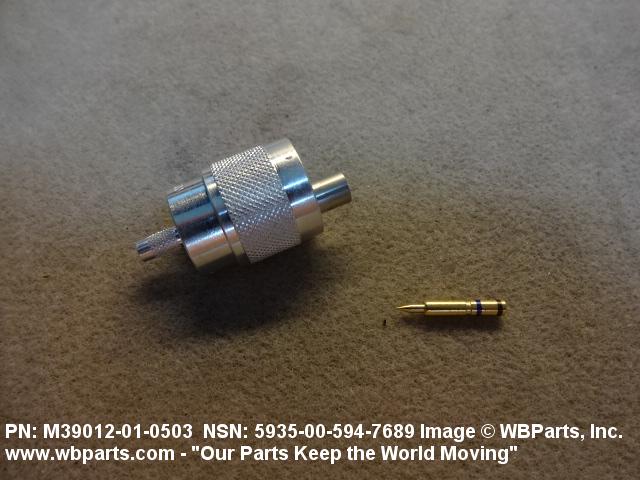

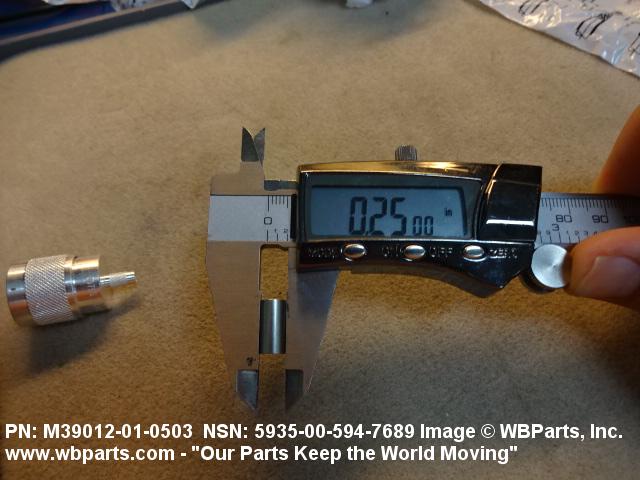

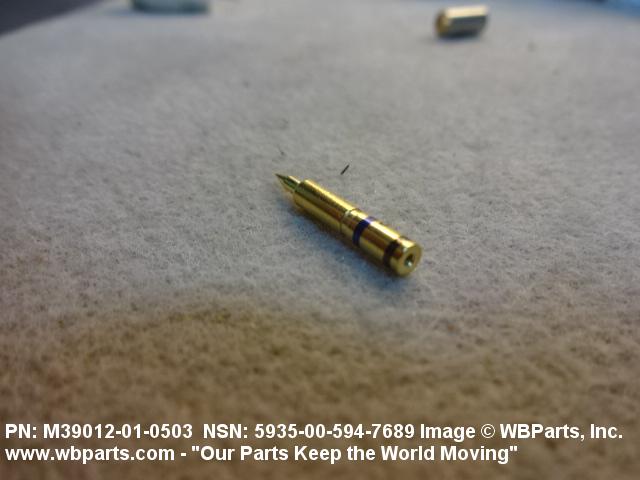

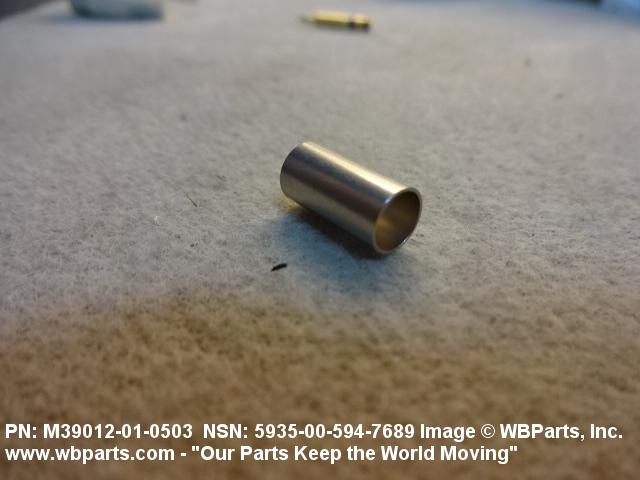

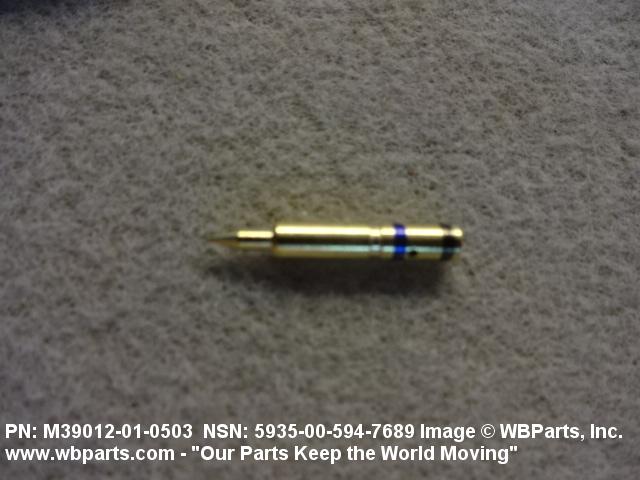

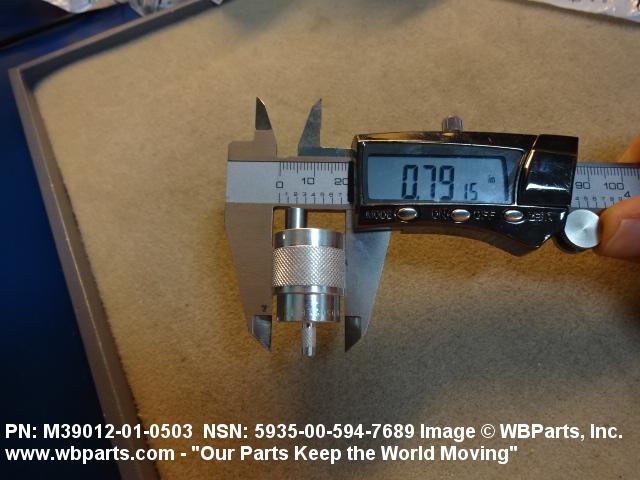

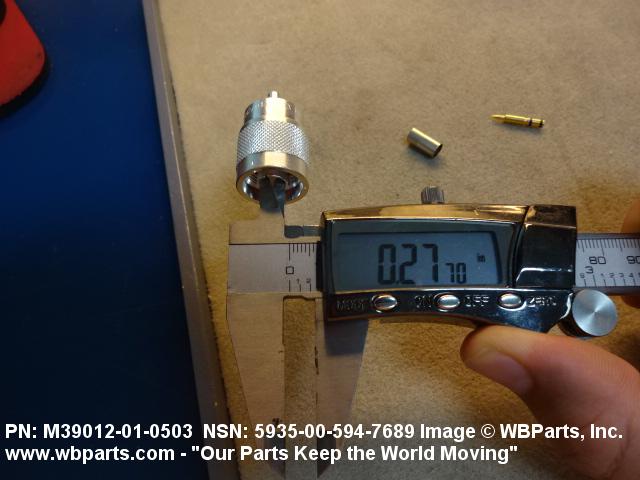

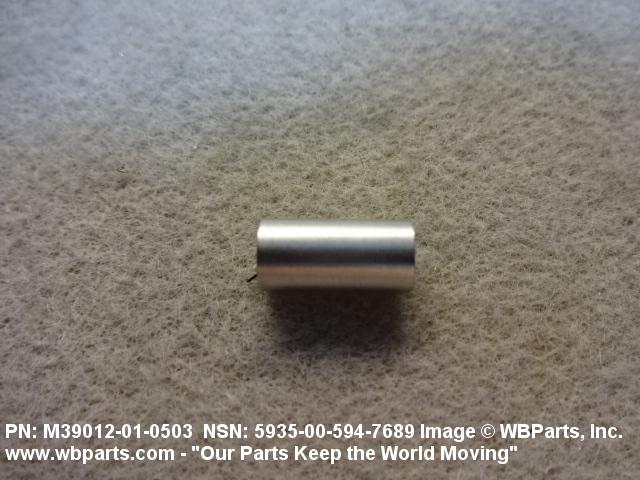

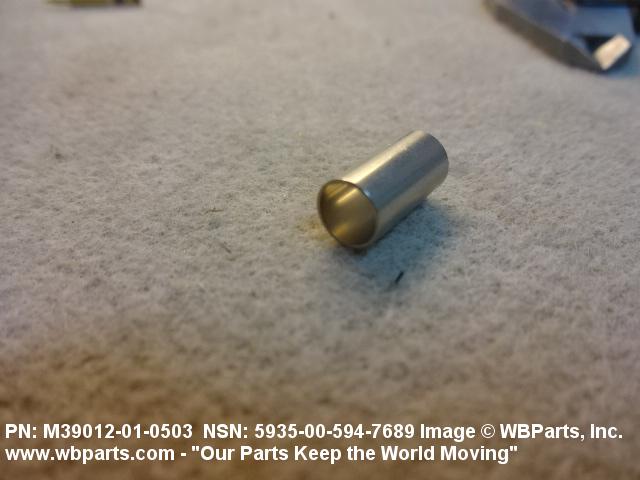

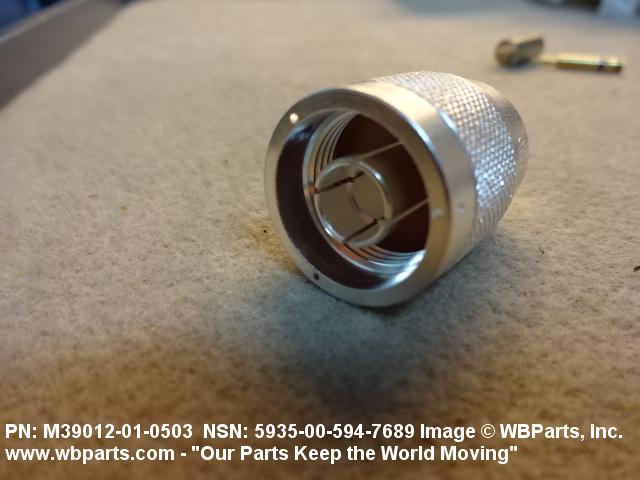

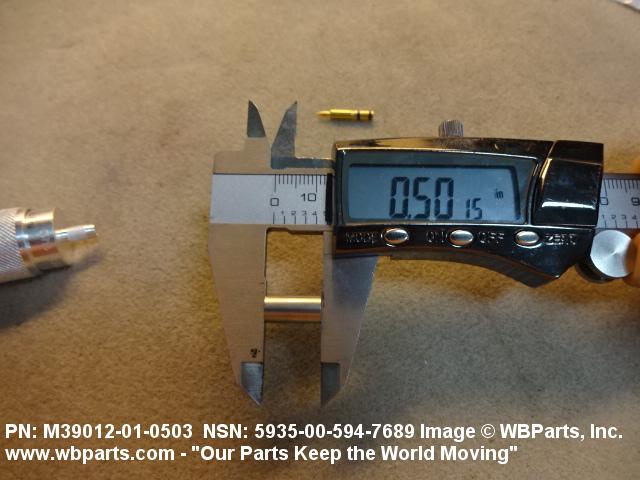

Drawings & Photos | NSN 5935-00-594-7689

Part Number	Request Date	QTY	Origin
5935-00-594-7689	2024-11-312	2	US
M39012010503	2024-05-123	13	United States
M39012010503	2024-02-45	4	Malaysia
5935-00-594-7689	2024-02-39	1979	DIBBS
5935-00-594-7689	2024-01-24	1276	DIBBS
5935-00-594-7689	2023-09-254	310	DIBBS
5935-00-594-7689	2023-08-220	392	DIBBS
5935-00-594-7689	2023-02-39	1733	DIBBS
5935-00-594-7689	2020-06-157	2297	DIBBS
5935-00-594-7689	2020-05-142	2297	DIBBS
5935-00-594-7689	2020-04-121	450	DIBBS
5935-00-594-7689	2020-04-100	1015	DIBBS
5935-00-594-7689	2019-06-161	1	DIBBS-RFPs
5935-00-594-7689	2019-06-153	407	DIBBS
5935-00-594-7689	2019-05-149	40	DIBBS
5935-00-594-7689	2019-05-139	125	DIBBS
5935-00-594-7689	2019-05-132	1560	DIBBS
5935-00-594-7689	2019-05-129	12	DE
5935-00-594-7689	2019-03-70	480	DIBBS
5935-00-594-7689	2019-01-08	36	United States
M39012010503	2016-07-209	2	us
M39012/01-0503	2016-07-207	2
5935-00-594-7689	2014-08-217	340	DIBBS
M39012/01-0503	2013-04-113	3	United States
5935-00-594-7689	2012-07-200	868	DIBBS
5935-00-594-7689	2012-06-171	924	DIBBS
5935-00-594-7689	2012-06-158	665	DIBBS
5935-00-594-7689	2012-05-135	996	DIBBS
KN-59-242	2012-04-118	20	PK
KN-59-242	2012-04-115	20	PK
KN-59-242	2012-04-110	1	PK
5935-00-594-7689	2011-11-327	746	DIBBS
5935-00-594-7689	2011-09-269	2395	DIBBS
5935-00-594-7689	2011-07-211	2923	DIBBS
5935-00-594-7689	2011-06-181	831	DIBBS
5935-00-594-7689	2010-10-301	1341	DIBBS
5935-00-594-7689	2009-10-296	2415	DIBBS
5935-00-594-7689	2009-07-212	2042	DIBBS
5935-00-594-7689	2009-07-201	778	DIBBS
5935-00-594-7689	2009-06-173	3153	DIBBS
5935-00-594-7689	2009-02-41	3804	DIBBS
5935-00-594-7689	2009-02-35	3480	DIBBS
5935-00-594-7689	2009-01-29	1489	DIBBS
5935-00-594-7689	2008-12-354	1081	DIBBS
5935-00-594-7689	2008-09-259	533	DIBBS
5935-00-594-7689	2008-08-214	554	DIBBS
5935-00-594-7689	2008-05-152	1109	DIBBS
5935-00-594-7689	2008-05-128	5847	DIBBS
5935-00-594-7689	2008-05-127	836	DIBBS
5935-00-594-7689	2008-02-60	2357	DIBBS
5935-00-594-7689	2008-01-31	1754	DIBBS
5935-00-594-7689	2008-01-11	864	DIBBS
5935-00-594-7689	2007-11-333	969	DIBBS
5935-00-594-7689	2007-09-261	2317	DIBBS

Cross Reference | NSN 5935-00-594-7689

Part Number	Cage Code	Manufacturer
82-4427	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
KN-59-242	91836	WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS
M39012-1-0503	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39012/01-0503	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M39012/01-0503	94117	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
MIL-C-39012/1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-00-594-7689

Compare

Related Products | NSN 5935-00-594-7689

5935-00-594-7709, 5935-00-594-7793, 5935-00-594-8104, 5935-00-594-8638, 5935-00-595-5899

Technical Data | NSN 5935-00-594-7689

Characteristic	Specifications
BODY STYLE	5D STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	1.516 INCHES MAXIMUM
OVERALL DIAMETER	0.827 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.625 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	24
THREAD DIRECTION	RIGHT-HAND
CONNECTOR CABLE STRAIN RELIEF METHOD	CRIMP TYPE
CABLE ENTRANCE DIAMETER	0.220 INCHES NOMINAL
SHELL TYPE	SOLID
SHELL MATERIAL	COPPER ALLOY
SHELL SURFACE TREATMENT	SILVER AND COPPER ALLOY
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-S-365 FED SPEC 1ST TREATMENT RESPONSE
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ABCE N SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	1000.0 SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS	50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM FREQUENCY RATING	11000.0 MEGAHERTZ SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-39012 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-39012/1 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL	GOLD AND SILVER
III PRECIOUS MATERIAL AND WEIGHT	0.005 GOLD GRAINS, TROY AND 0.100 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACE GOLD AND SHELL SURFACE SILVER
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-39012/1
MANUFACTURERS CODE	81349

Restrictions/Controls & Freight Information | NSN 5935-00-594-7689

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	ZG	Germany ZH ZJ
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-00-594-7689

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	6	Critical Repair Part to a Non-Combat Essential End Item. Those parts or components whose failure in a noncombat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
